In stock2 unitsReady to ship

Freewheel Clutch Bearing

Stieber NSS15AV freewheel clutch bearing with sealed, grease-lubricated design, strong spring configuration, and high overrunning speed capability for industrial applications.

Manufacturer
STIEBER
SKU
1089896
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

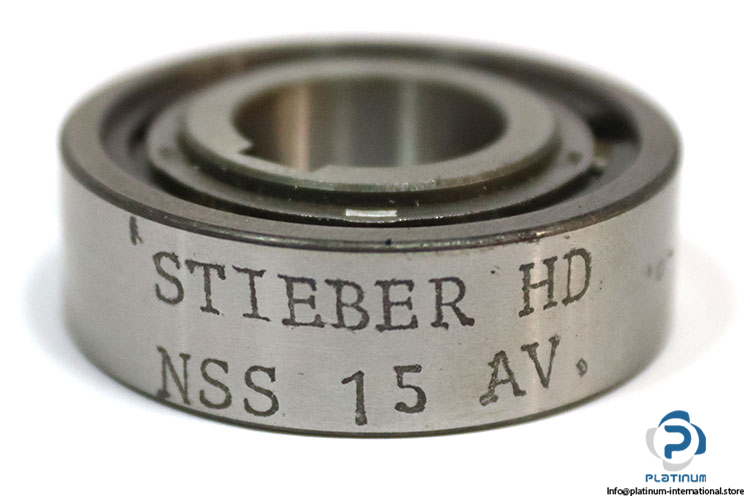

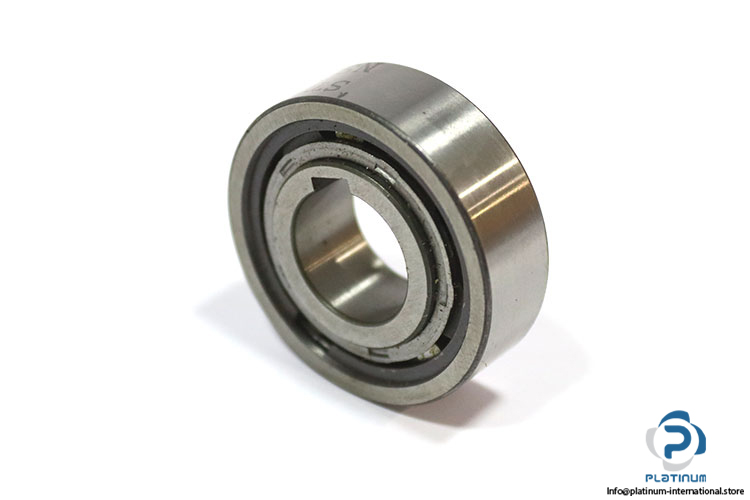

Stieber NSS15AV Freewheel Clutch Bearing

The Stieber NSS15AV is a compact freewheel clutch bearing designed for precise overrunning, indexing, and backstopping functions in industrial drive systems. Its sealed and grease-lubricated construction ensures reliable performance and long service life.

Manufacturer: Stieber

Type: Freewheel Clutch Bearing

Model: NSS15AV

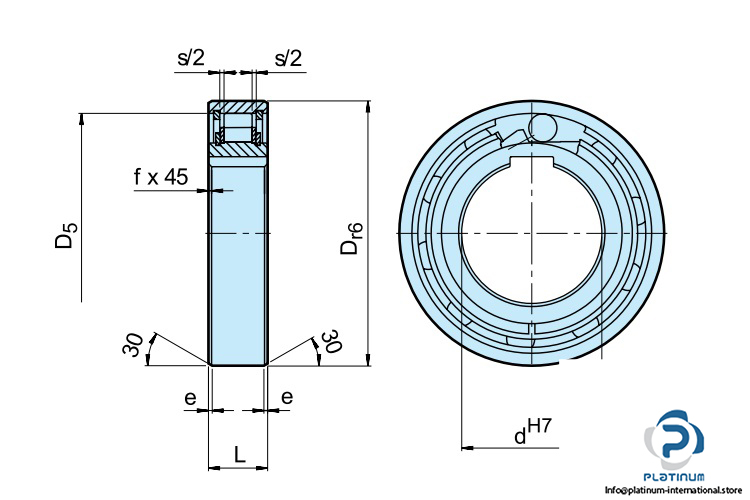

Size15
Bore Diameter (d)15 mm
Outer Diameter (D)35 mm
Width (L)11 mm
e0.6 mm
S1.4 mm
Maximum Overrunning Speed (Inner Race)2800 rpm
Maximum Overrunning Speed (Outer Race)4300 rpm
Drag Torque0.70 N·cm
Suffix ASelf-contained unit, grease-lubricated and sealed
Suffix VEquipped with stronger springs
