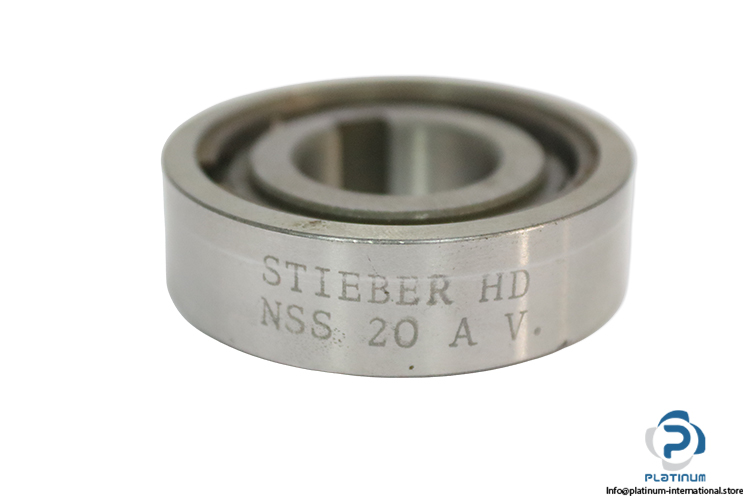

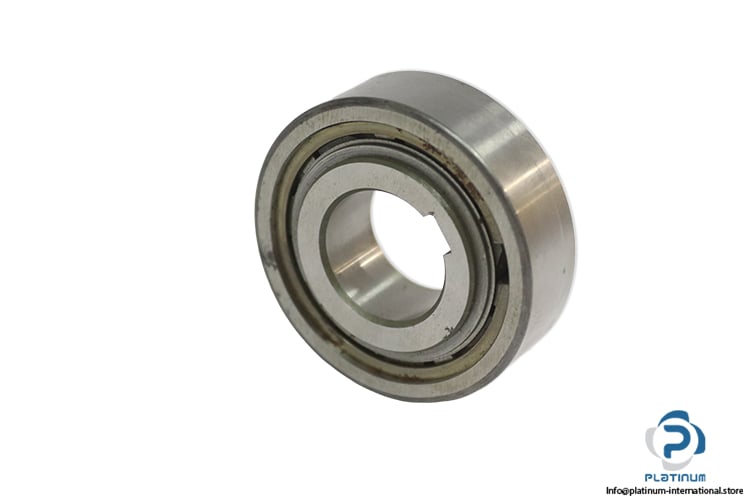

Stieber NSS 20 A V Freewheel Clutch Bearing
New
In stock1 unitReady to ship
Freewheel Clutch Bearing
Stieber NSS20AV freewheel clutch bearing with sealed, grease-lubricated design, stronger spring configuration, and reliable overrunning performance for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Stieber NSS20AV Freewheel Clutch Bearing
The Stieber NSS20AV is a precision freewheel clutch bearing designed to provide reliable overrunning, indexing, and backstopping functions in industrial drive systems. It is a self-contained, sealed, and grease-lubricated unit engineered for stable performance and long service life.
Manufacturer: Stieber
Type: Freewheel Clutch Bearing
Model: NSS20AV

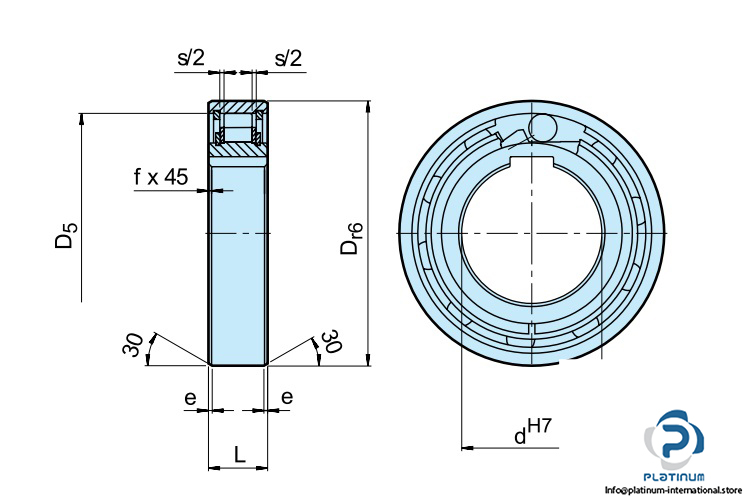

| Size | 20 |
| Bore Diameter (d) | 20 mm |
| Outer Diameter (D) | 47 mm |
| Width (L) | 14 mm |
| e | 0.8 mm |
| S | 2.4 mm |
| Maximum Overrunning Speed (Inner Race) | 2200 rpm |
| Maximum Overrunning Speed (Outer Race) | 3300 rpm |
| Drag Torque | 1.4 N·cm |
| Suffix A | Self-contained, grease-lubricated, and sealed unit |
| Suffix V | Equipped with stronger springs |
