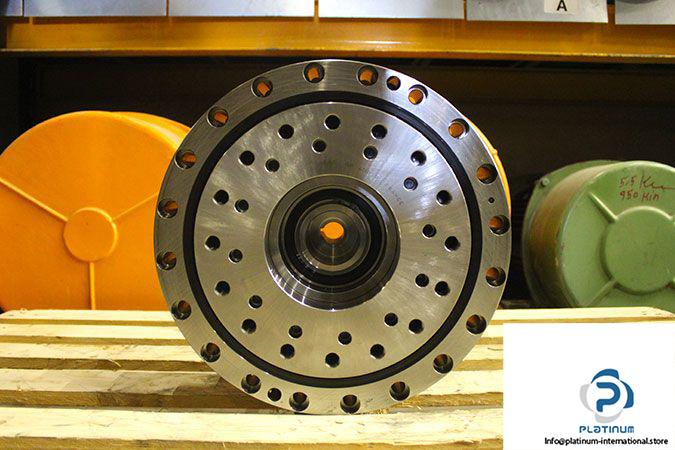

Sumitomo Drive Technologies F1CS-A65G-119 Zero Backlash Precision Gearbox
New
In stock4 unitsReady to ship
PRECISION GEARBOX
Zero-backlash precision gearbox from Sumitomo with integrated cross roller bearing, offering 1:119 ratio, high torque output, and exceptional bending moment capacity for high-precision industrial drives.1:119BacklashbearingCrossDriveF1CS-A65G-119GearGearboxHighIndustrialPrecisionratioReducerRollerSingle-StageSumitomoTorqueZero
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

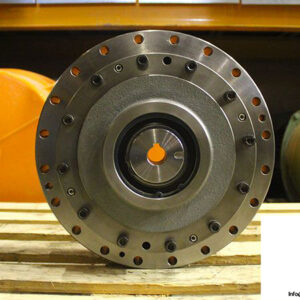

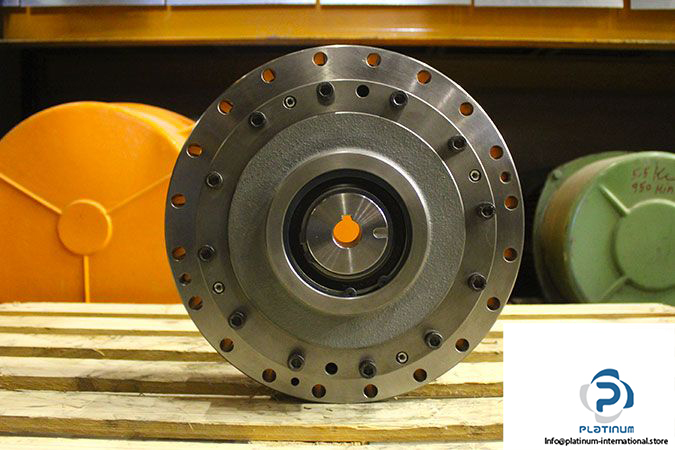

SUMITOMO F1CS-A65G-119 ZERO BACKLASH PRECISION GEARBOX
This high-performance precision gearbox from Sumitomo Drive Technologies combines a zero backlash transmission system with an integrated cross roller bearing for superior rigidity and support. Engineered for demanding industrial applications, it offers excellent torque, minimal positional error, and high permissible bending moments.
Manufacturer: Sumitomo Drive Technologies
Type: Zero Backlash Precision Gearbox

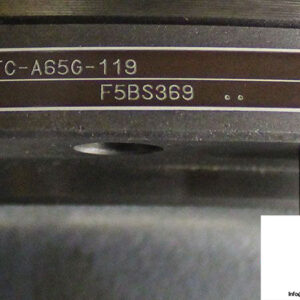

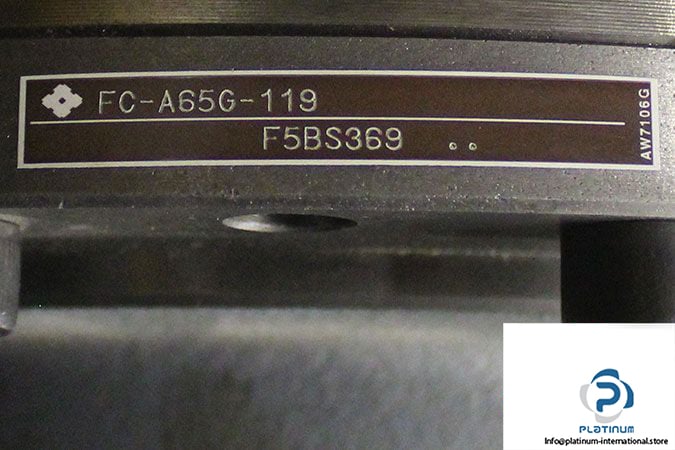

Model: F1CS-A65G-119

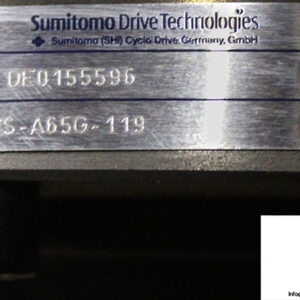

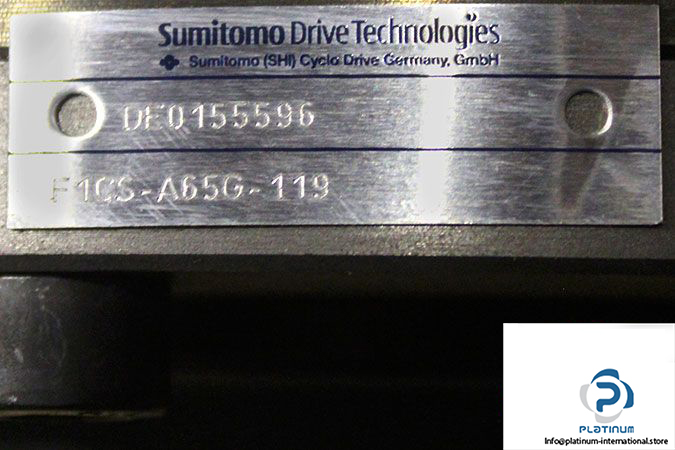

Part No.: DE0155596
| Size | 65 |
| Series | A |
| Ratios [i] | 1:119 |
| Number of Stage | 1 Single |
| Standard Version | Special Version (S) |
| Bearing | Integrated Cross Roller Bearing |
| Max Permissible Bending Moment [Nm] | 6700 |
| Nominal Output Torque [Nm] | 2570 |
| Acceleration/Decelerate Torque [Nm] | 5130 |
| Mean Input Speed [rpm] | 2000 |
| Max Input Speed [rpm] | 2350 |

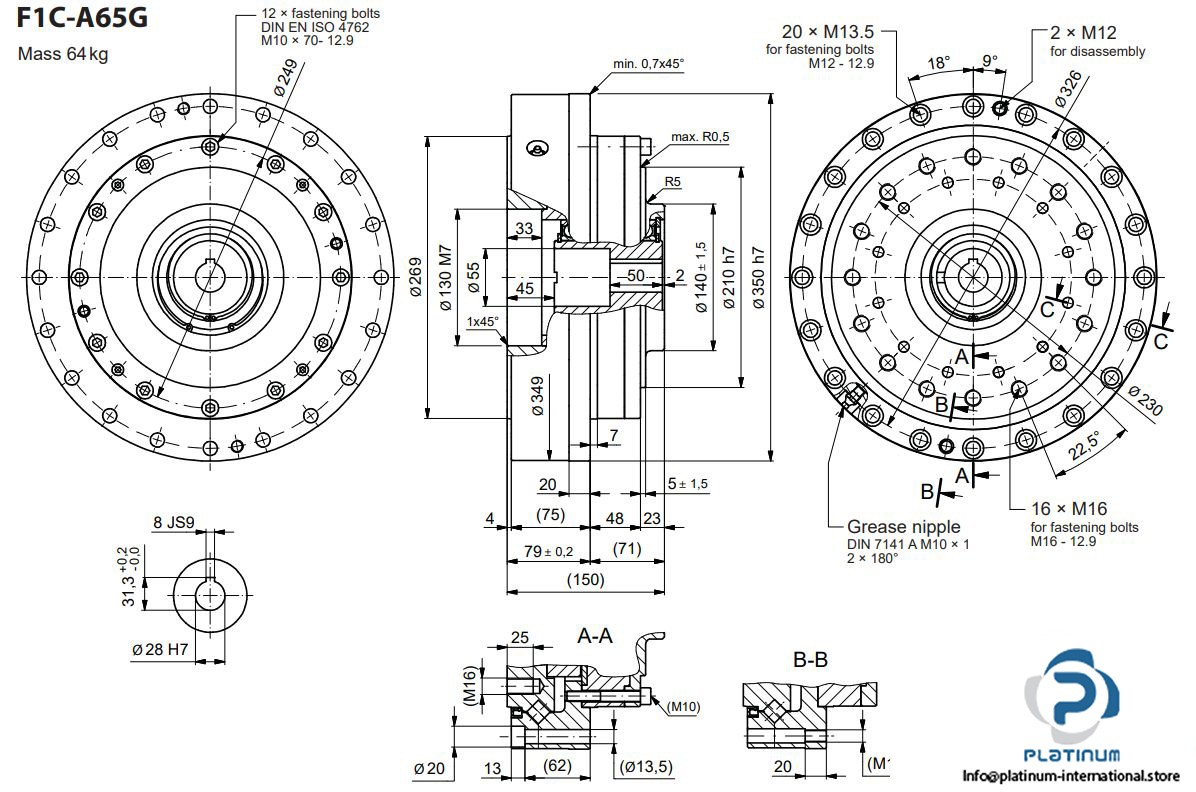

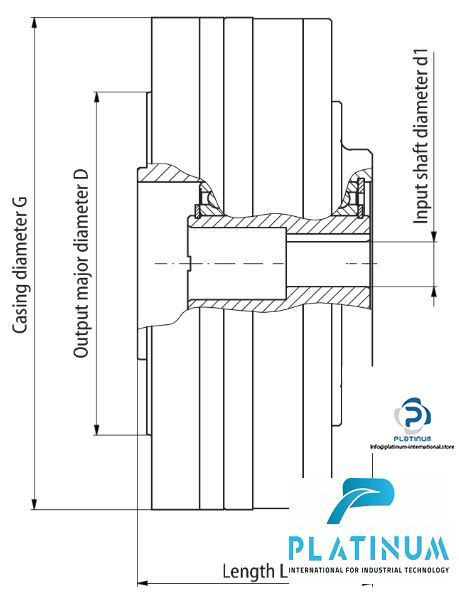

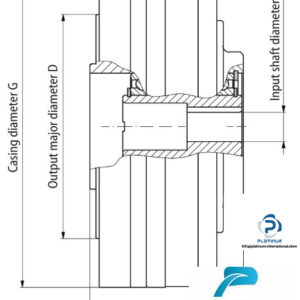

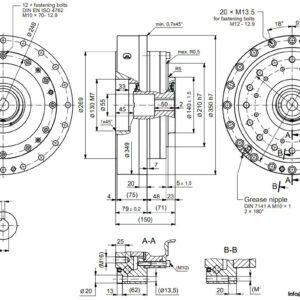

| Length L [mm] | 150 |
| Diameter G [mm] | 350 |
