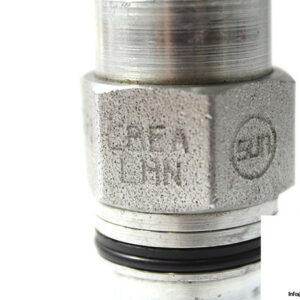

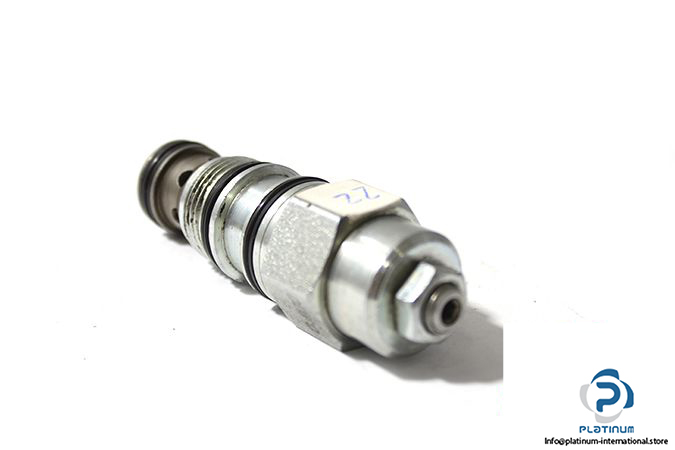

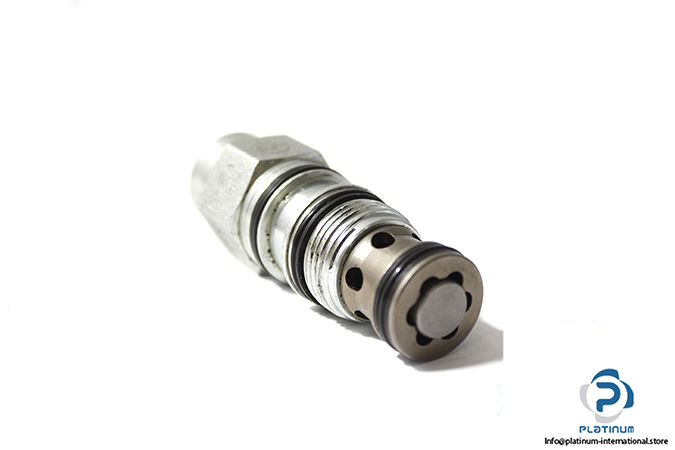

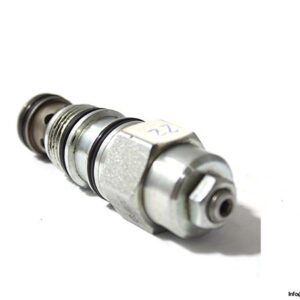

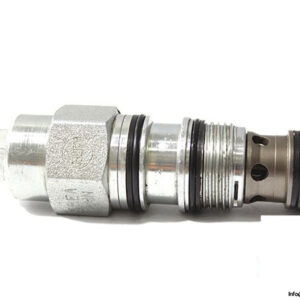

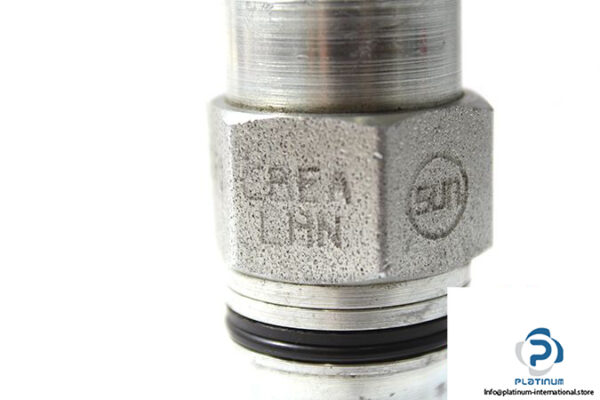

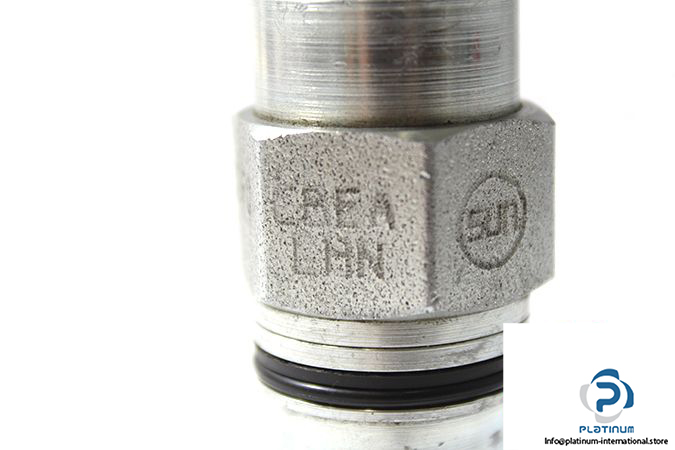

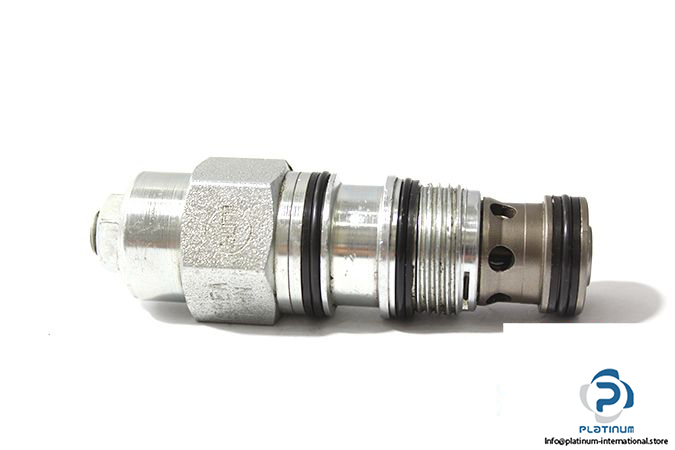

SUN Cbea LHN Standard Capacity Counterbalance Valve

Manufacturer: SUN

Type: Standard Capacity Counterbalance Valve

Model: CBEA LHN



Capacity: 30 gpm

Maximum pressure: 3075 psi

Factory Pressure Settings Established at: 2 in³/min.

Maximum Valve Leakage at Reseat: 5 drops/min.

Adjustment – No. of CCW Turns from Min. to Max. Setting: 3.75

Valve Hex Size: 1 1/8 in.

Adjustment Screw Internal Hex Size: 5/32 in.

Locknut Hex Size:  9/16 in.

Locknut Torque: 80 – 90 lbf in.

Valve Installation Torque: 45 – 50 lbf ft

Cartridge Thread:  1″-14 UNS

Weight: 0.28 kg
