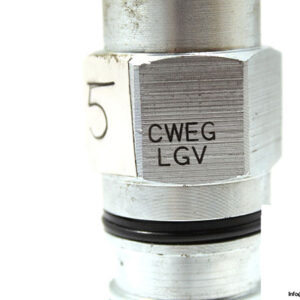

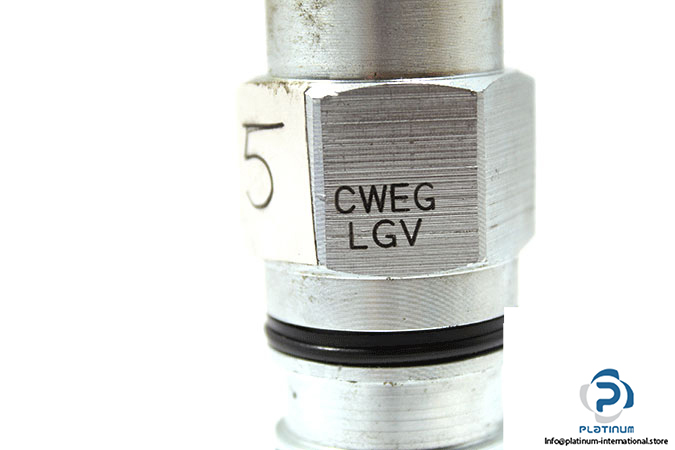

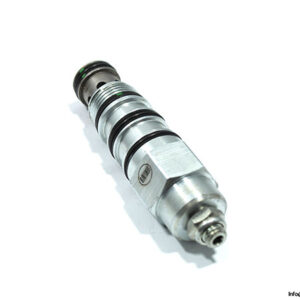

SUN Cweg LGV Vented Counterbalance Valve

Manufacturer: SUN

Type: Vented Counterbalance Valve

Model: CWEG LGV

Capacity: 30 gpm

Pilot Ratio:  5:1

Maximum pressure: 6000 psi

Factory Pressure Settings Established at:  2 in³/min

Maximum Valve Leakage at Reseat: 5 drops/min

Check Cracking Pressure: 25 psi

Adjustment – No. of CCW Turns from Min. to Max. Setting: 5

Valve Hex Size: 1 1/8 in.

Adjustment Screw Internal Hex Size: 5/32 in.

Locknut Hex Size:  9/16 in.

Locknut Torque: 80 – 90 lbf in.

Valve Installation Torque: 45 – 50 lbf ft

Cartridge Thread: 1″-14 UNS
