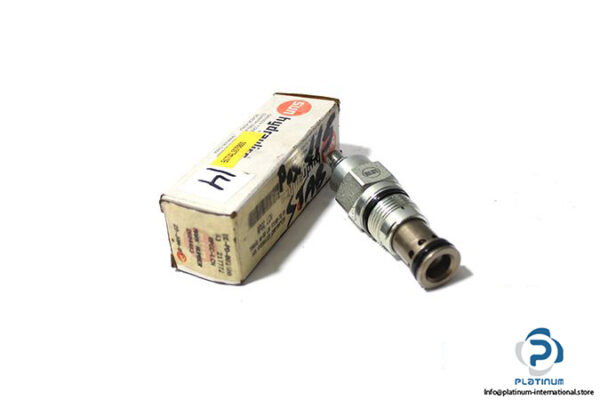

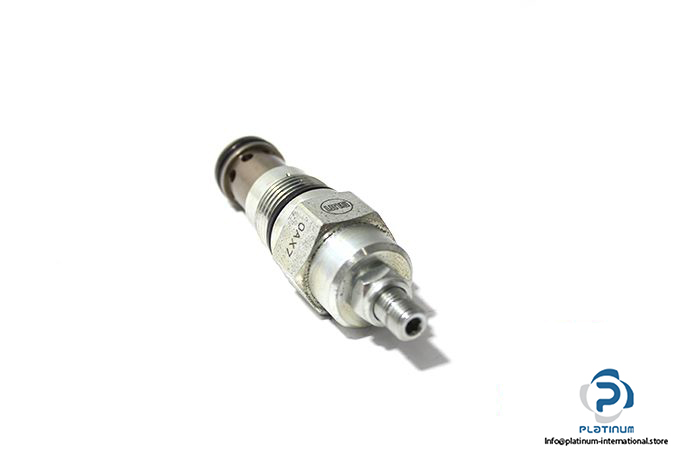

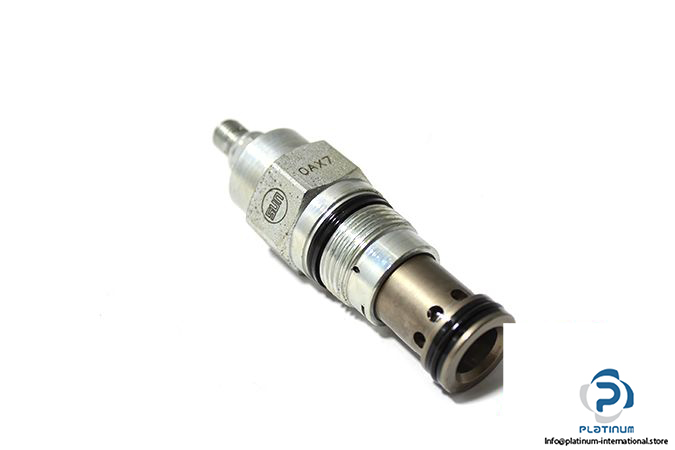

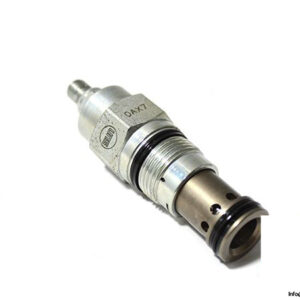

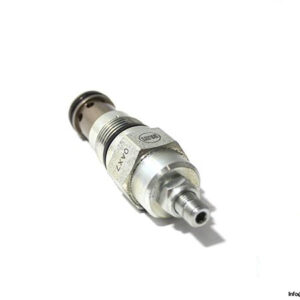

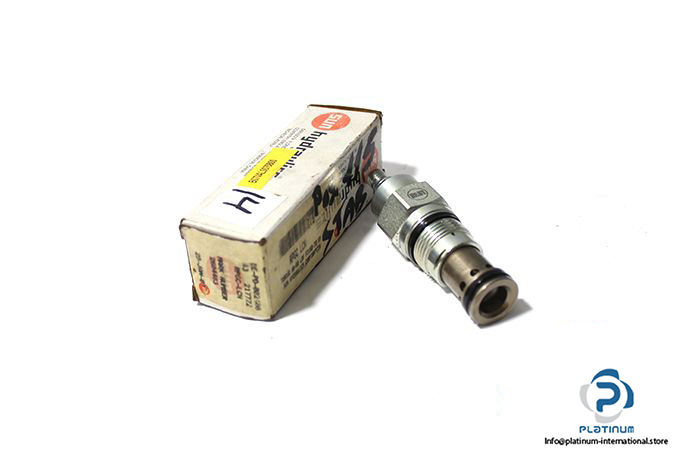

SUN Rpgc LCN Balanced Piston Relief Valve

Manufacturer: SUN

Type: Balanced Piston Relief Valve

Model: RPGC LCN

Capacity: 50 gpm

Factory Pressure Settings Established at: 4 gpm

Maximum Operating Pressure: 5000 psi

Maximum Valve Leakage at 110 SUS (24 cSt): 3 in³/min.@1000 psi.

Response Time – Typical: 10 ms

Adjustment – No. of CW Turns from Min. to Max. setting: 5

Valve Hex Size: 1 1/8 in.

Valve Installation Torque: 45 – 50 lbf ft.

Adjustment Screw Internal Hex Size: 5/32 in.

Locknut Hex Size: 9/16 in.

Locknut Torque: 80 – 90 lbf in.

Cartridge Thread: 1″-14 UNS

Weight: 0.25 kg
