Sunx RS-120HF-8 Beam Switch Sensor
Used
In stock1 unitReady to ship
Sunx Beam Switch Sensor RS120HF8 with diffuse-reflective sensing method, 170 mm sensing range, and 500 Hz switching frequency. Designed for reliable operation with NPN output and red LED indicator.
170500beamCableconnectionDiffuse-ReflectiveFrequencyHzIndicatorinfraredIP62LEDLightmmNPNOutputProtectionRangeRedSensingSensorSunxSwitchSwitching
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

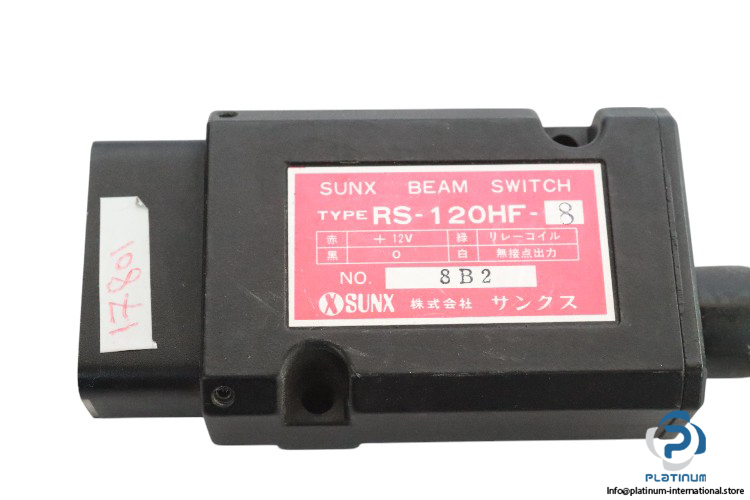

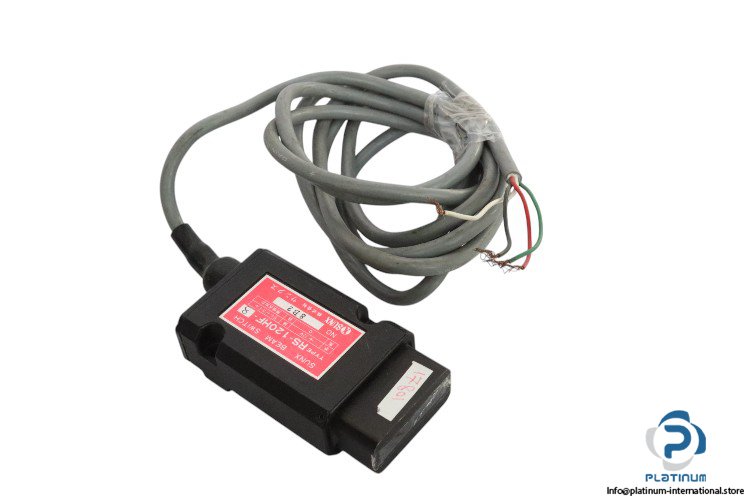

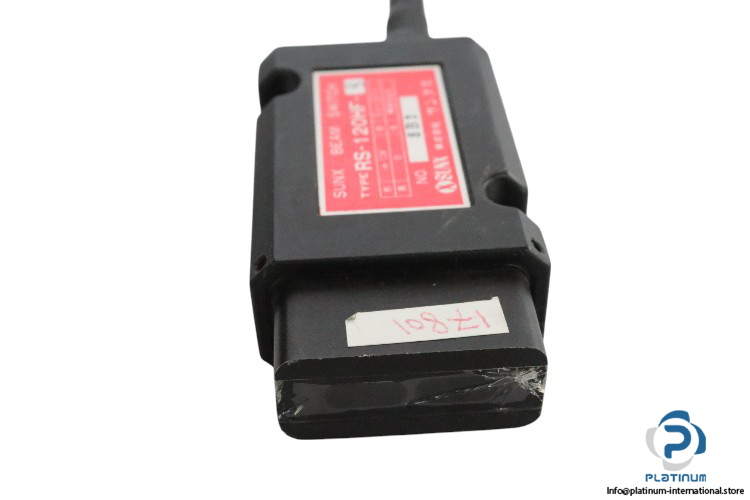

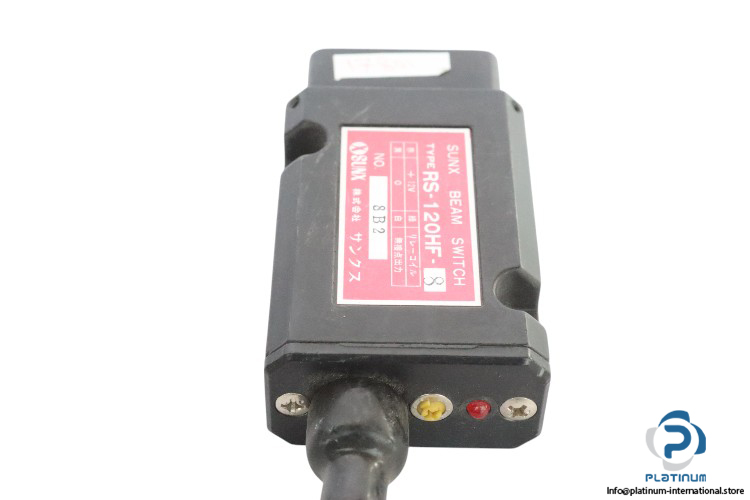

Sunx Beam Switch Sensor RS120HF8
Sunx Beam Switch Sensor RS120HF8 is a high-performance sensor designed for accurate detection and reliable operation in industrial environments. Featuring a diffuse-reflective sensing method with infrared light, this sensor ensures high-speed response and precise detection capabilities. Below are the key technical specifications:
- Manufacturer: Sunx
- Type: Beam Switch Sensor
- Model: RS120HF8
- Part No.: 8B2
Technical Data:
- Sensing Method: Diffuse-Reflective (infrared light)
- Sensing Range: 170 mm
- Operating Voltage: 12 / 24 V DC
- Consumption Current: 50 mA
- Output: 2 wires, NPN
- Operation Indicator: Red LED
- Switching Frequency: Up to 500 Hz
- Degree of Protection: IP62
- Connection Method: Cable
- Ambient Temperature: -10 to 60°C
