Switch Master SM-M2 / 6A Position Indicator
Used
In stock2 unitsReady to ship
Opto-Electric Position Indicator
SwitchMaster SM M2 opto-electric position indicator with change-over contacts, IP67 protection, and 0“90 degree switching range for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

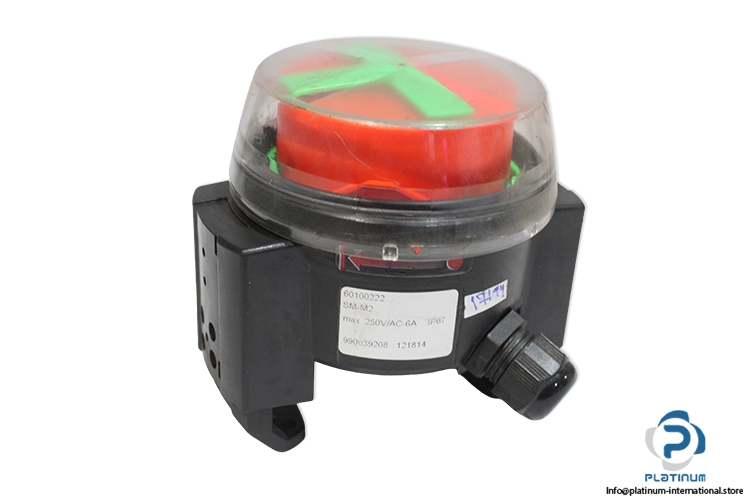

SwitchMaster SM M2 Opto-Electric Position Indicator
The SwitchMaster SM M2 is an opto-electric position indicator designed for precise position monitoring and reliable switching in industrial environments. It features a robust construction, change-over switching function with gilded contacts, and high protection rating for dependable operation.

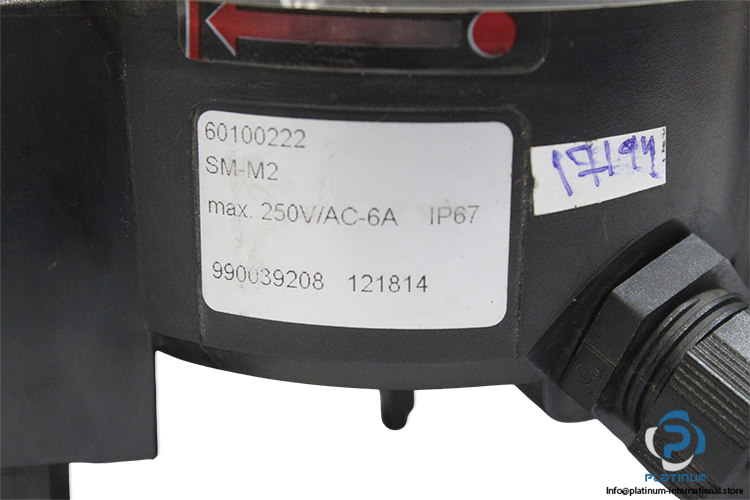

Manufacturer: SwitchMaster
Type: Opto-electric Position Indicator
Model: SM M2
Part No.: 60100222
Code: 990039208 121814
Materials:
| Voltage Rating | Max. 250 V AC |
| Current Rating | 6 A |
| Switching Function | Change-Over, Contacts Gilded |
| Protection | IP67 |
| Certification | CE |
| Cap | Lexan 143 R |
| Stem | Delrin (POM) |
| Seals | Perbunan (NBR) |
| Cable Gland / Nut | Polyamide (PA) |
| Other Plastic Parts | Bayblend T45, ABS |
| Hexagon Socket Screw | Stainless Steel (A2-70) |
| Display & Switching Range | 0 to 90 Degree Pivoting Angle |
| Cable | 7 × 13 mm, Max. 2.5 mm² |
| Temperature Range | -20 °C to +70 °C |
| Dimensions | 144 × 130 × 105 mm |
