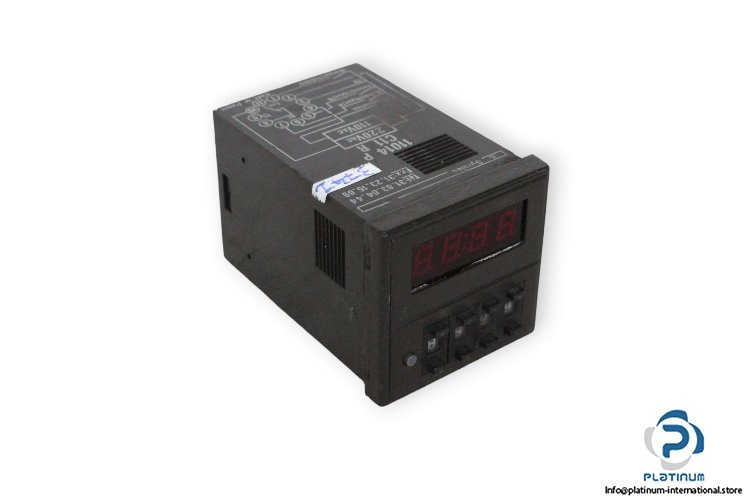

Syrelec 11014 P Up/Down Counter

Manufacturer: Syrelec
Type: Up/Down Counter
Model: 11014 P
Part no.: C11 R

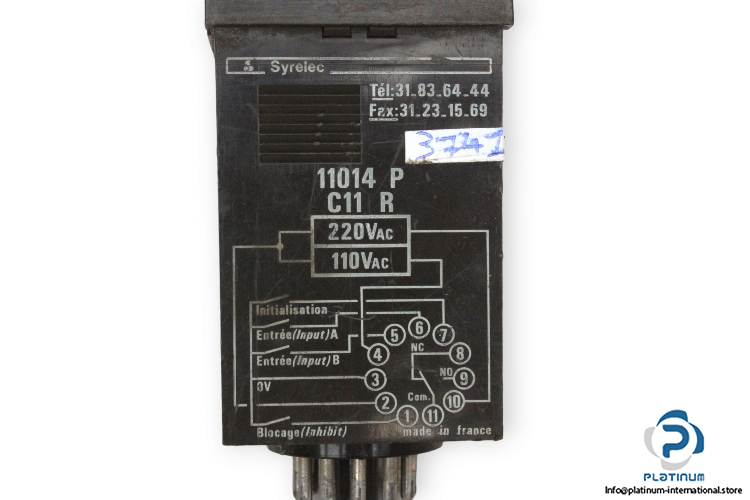

No. of pins: 11 pin plug-in
Led display digit: 4 red digits
Supply voltage: 12/24 V DC
Power consumption: 1.2 W (max) for 12 V DC, 2.4 W (max) for 24 V DC
INPUT
Voltage: 0 … 1 V (low level), 4 … 30 V (high level)
Frequency: In IND mode 5 kHz (total) , in phase mode 1.2 kHz (max), In DIR mode 5 kHz (max)
RESET & LATCH
Voltage: 0 … 1 V (low level), 4 … 30 V (high level)
Contact: NPN
OUTPUT
Relay output: 3 A /250 V AC

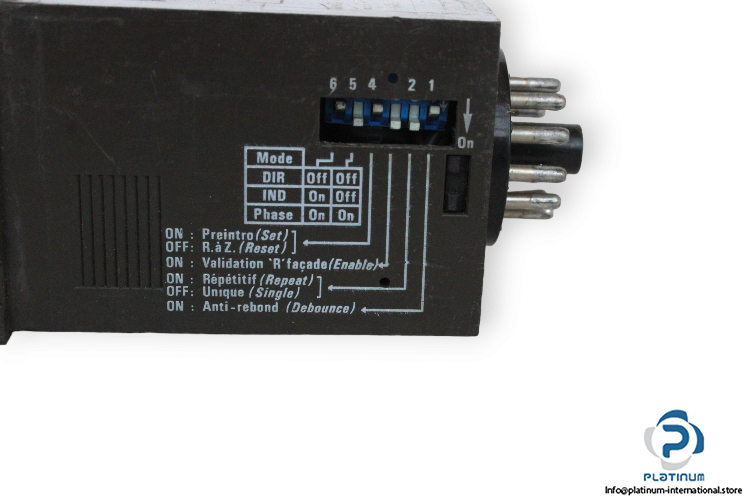

Programming: 6 dip switches selection (Repeat cycle, single cycle)
Degree of protection: IP20
Operation temperature: 0 … 50 °C
Dimensions: 48 x 48 x 79 mm
