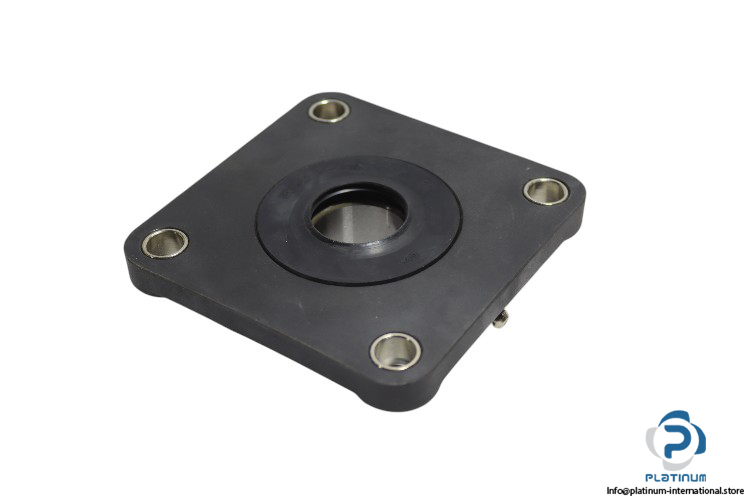

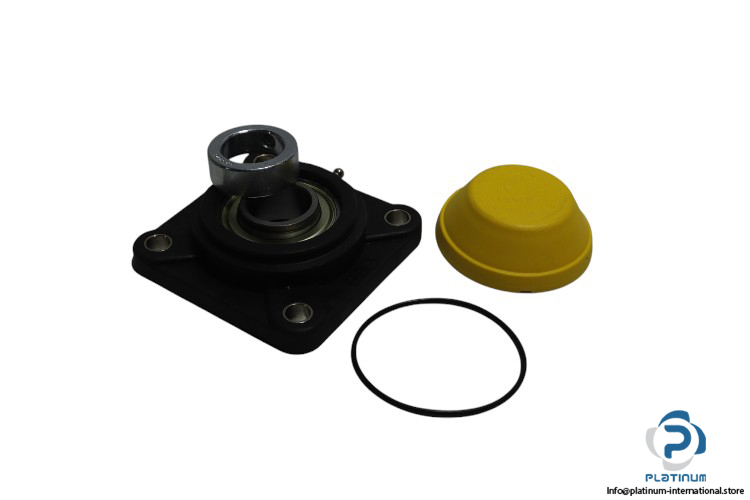

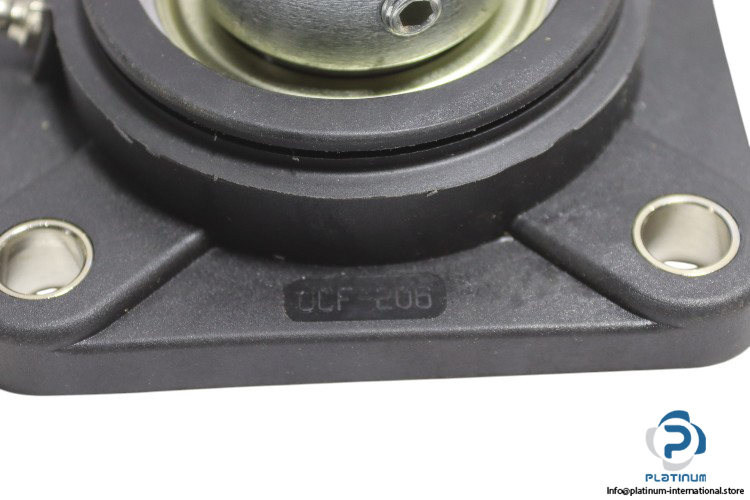

System Plast UCF 206 Four-Bolt Square Flange Unit
New
In stock8 unitsReady to ship
Four-Bolt Square Flange Unit
The System Plast UCF 206 is a high-performance square flange bearing unit with a 30 mm bore, four-bolt mounting, and durable construction for dependable use in mechanical and industrial systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
System Plast UCF 206 Four-Bolt Square Flange Unit
The System Plast UCF 206 is a reliable four-bolt square flange unit designed for stable and secure bearing mounting. Engineered for easy installation and high performance, it offers consistent support in demanding industrial and mechanical applications.
Manufacturer: System Plast
Type: Four-Bolt Square Flange Unit
Model: UCF 206
| Bore Diameter | 30 mm |
| Width for Inner Ring | 38.1 mm |
| Overall Width (A) | 40.2 mm |
| Distance Between Attachment Bolts (J) | 83 mm |
| Overall Length (L) | 108 mm |
| Mounting | Square Flanged |
