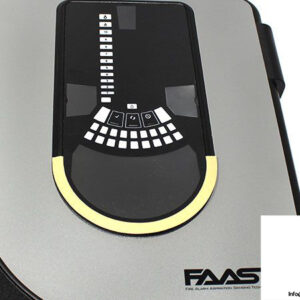

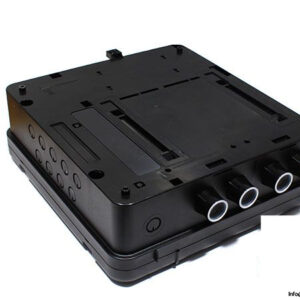

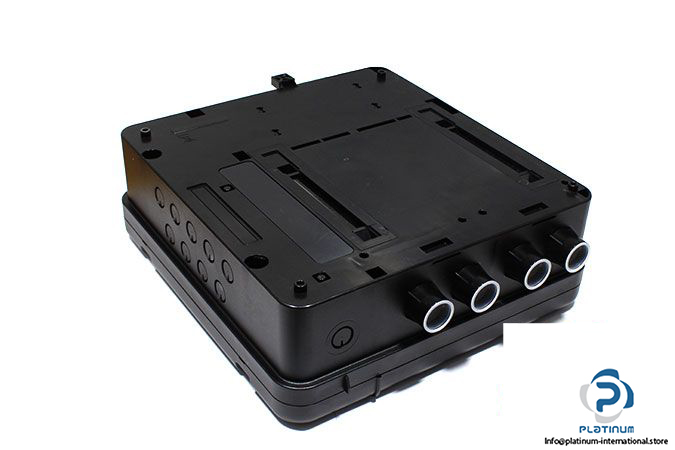

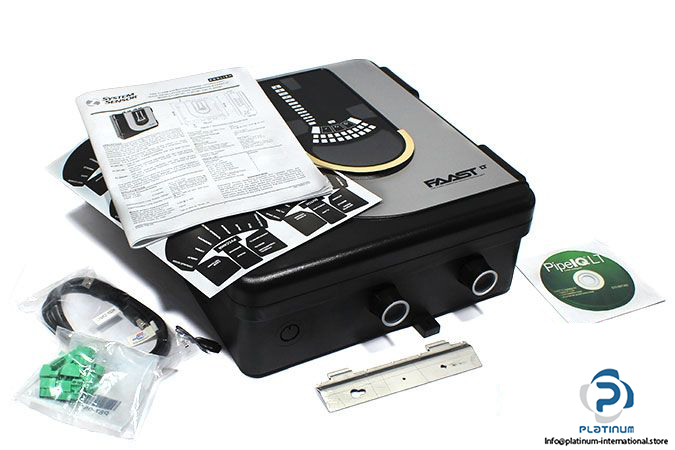

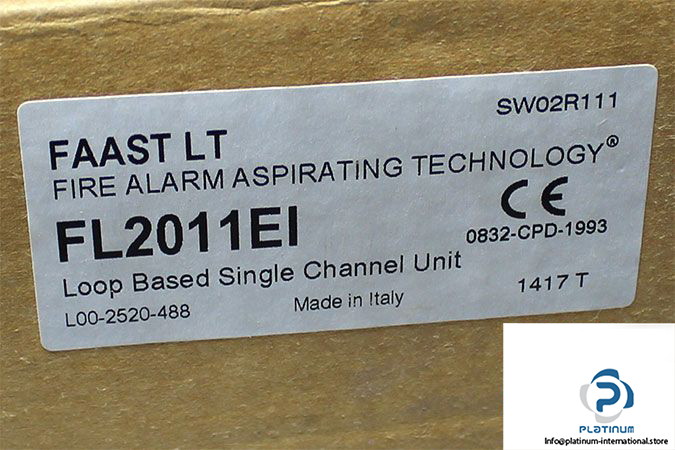

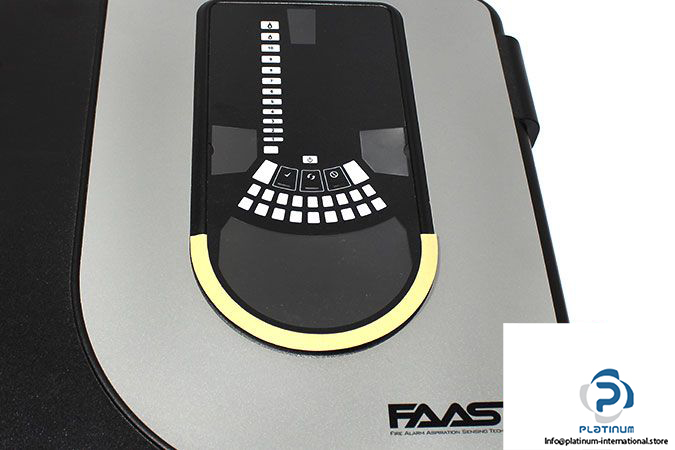

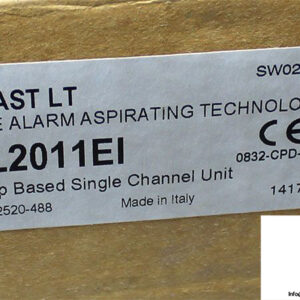

System Sensor Faast LT FL2011EI Fire Alarm Aspiration Sensing Technology®

Manufacturer: System Sensor

Type: Fire Alarm Aspiration Sensing Technology®

Series: FAAST LT

Model: FL2011EI



Voltage Range: 18.5 – 31.5 VDC

Communication Loop Supply Voltage: 15 – 29 VDC (Loop current ≤ 900mA)

Communication Loop Standby Current: @ 24V: 900 µA max. (poll once every 5s)

Supply Current

• 1 Channel: 170mA (typical); 360mA (max) @ 24 VDC 25 °C (excluding sounders)
• 2 Channel: 270mA (typical); 570mA (max) @ 24 VDC 25 °C (excluding sounders)

Power Reset: 0.5s

Configurable Input: Activation Time: 2s (min)

Relay Contact Ratings: 2.0 A @ 30 VDC, 0.5A @ 30 VAC

Temperature: -10…55 °C

Protection Class: IP65

Weight: 5.80 kg
