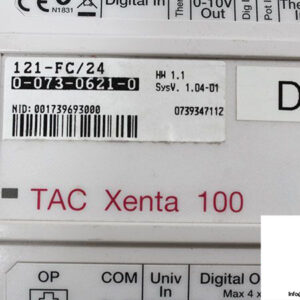

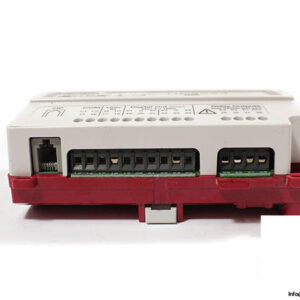

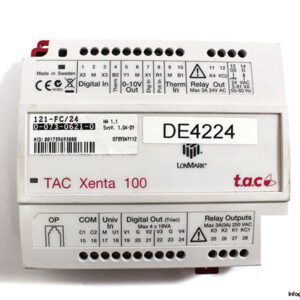

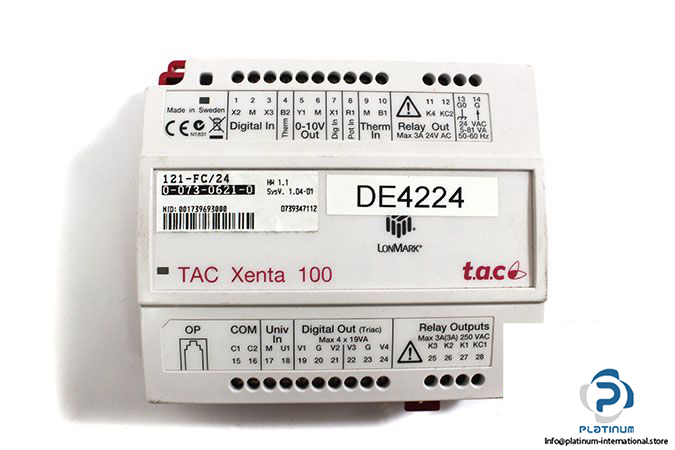

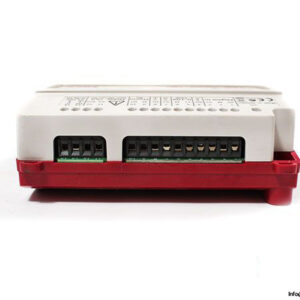

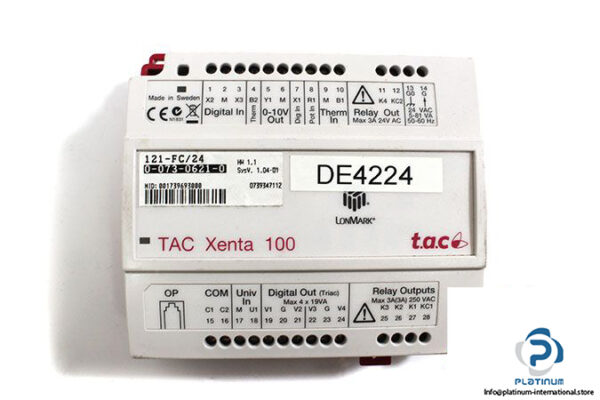

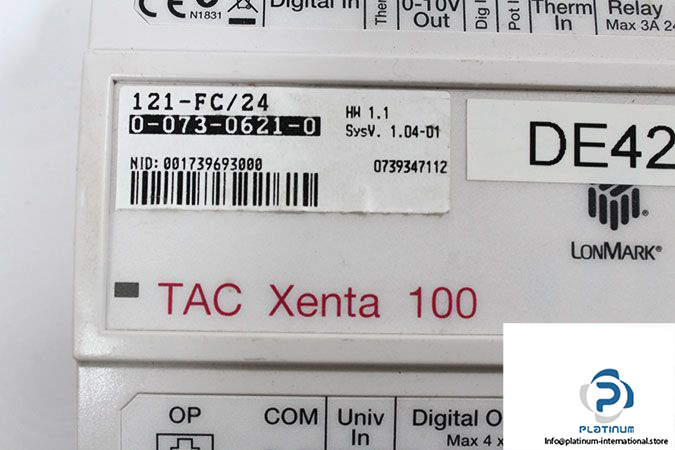

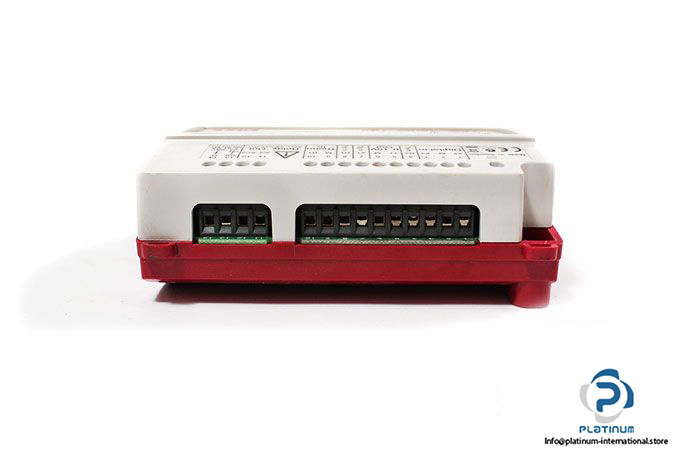

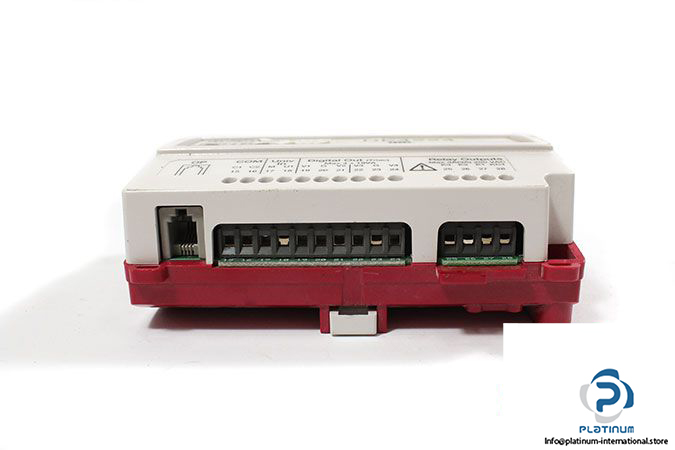

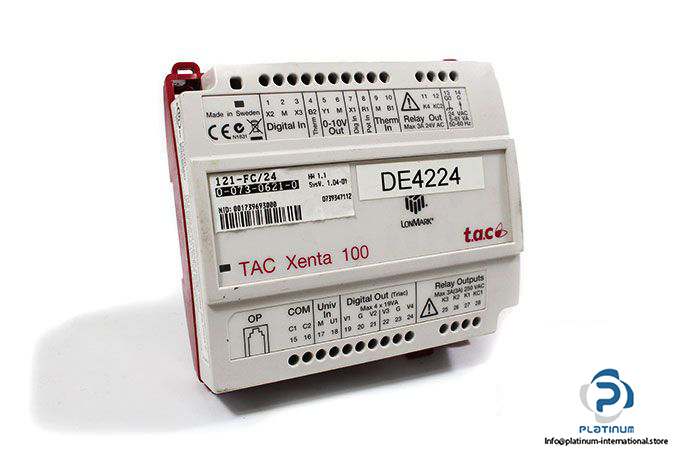

Schneider TAC Xenta 100 Controller

Manufacturer: SCHNEIDER TAC

Type: CONTROLLER

Series: XENTA

Model: XENTA 100

Art No.: 0-073-0621-0

Features:

• Heating and cooling in sequence
• Occupancy sensor
• Window contact
• Low temperature protection
• Air quality cont

Application:

• All controllers can be integrated with other functions at room level, such as lighting, via the LonWorks® networks — an industrial standard for network communication that enables integration of several different systems within a building.
• The TAC Xenta 100 range consists of application-specific controllers that have been designed for zone applications such as Fan Coil, VAV, Chilled Ceiling, Room Control and Roof Top Units.

Operating modes:

• Occupied • Unoccupied • Stand-by • Bypass • Off • Slave • Emergency

Controller Type: Standard

Material: ABS/PC plastic

Supply Voltage: 24 V AC

Inputs X2–X3 for occupancy sensor and window contact

Voltage across open contact : 23 V DC ± 1 V DC

Current through closed contact: 4 mA

Power consumption

Controller with TAC Xenta OP: 4 VA

Max. Digital outputs: 76 VA

Output Voltage: 0 – 10 V DC

Dimensions (length x width x height ): 120 mm x 104 mm x 45 mm

Measuring range: -10 … 50 °C

Protection Degree: IP 30

Frequency: 50 / 60 Hz

Operating Temperature: 0 … 50 °C

Weight: 0.26 kg
