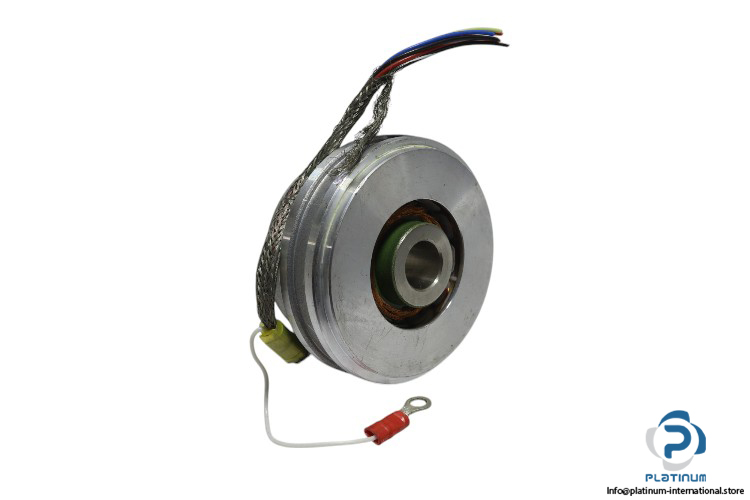

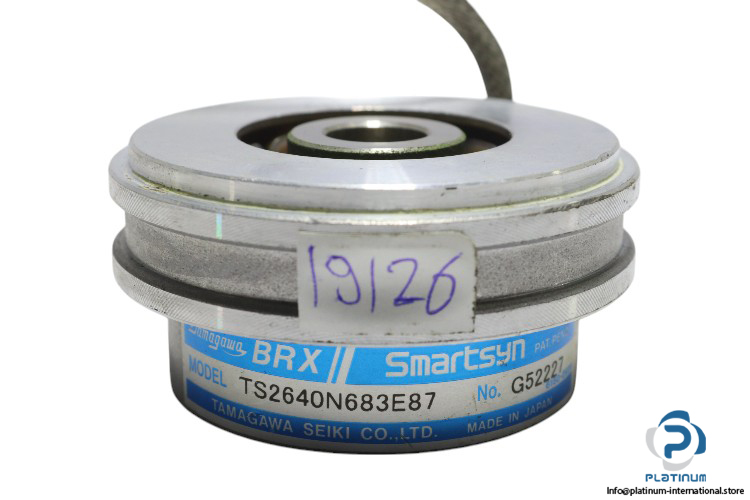

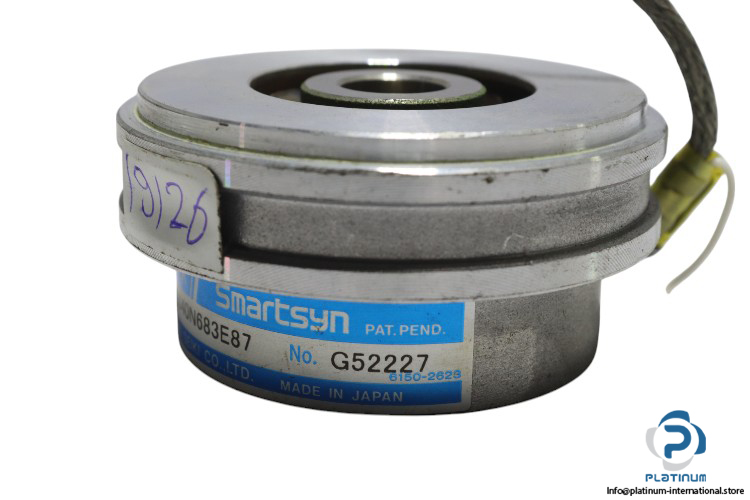

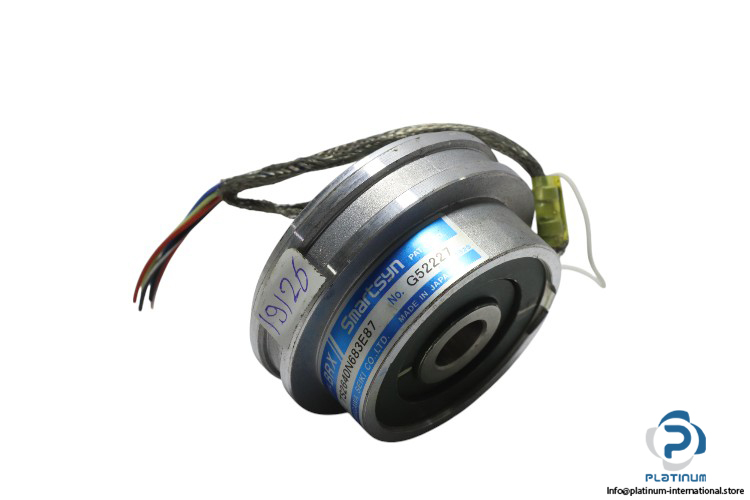

Tamagawa TS2640N683E87 Brushless Pancake Resolver
Used
In stock1 unitReady to ship
Brushless Pancake Resolver
The Tamagawa TS2640N683E87 is a brushless pancake resolver offering high accuracy with 7 Vrms AC input voltage and a max speed of 10,000 min-1. Designed for industrial environments, it operates efficiently within a wide temperature range of -55 to +150°C.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Tamagawa TS2640N683E87 “ Brushless Pancake Resolver
The Tamagawa TS2640N683E87 is a high-precision brushless pancake resolver from the Smartsyn range. Designed for industrial applications, this resolver offers exceptional performance with a high-frequency input, minimal power consumption, and an operating speed up to 10,000 min-1.
Manufacturer: Tamagawa
Type: Brushless Pancake Resolver
Model: TS2640N683E87
Part No.: G52227
| Range | Smartsyn |
| Function | 3X-BRX |
| Input Voltage | 7 Vrms AC |
| Input Current | 15 mA max. |
| Frequency | 10 kHz |
| Input Power | 0.03 W |
| Dielectric Strength | 500 Vrms AC, 60 s |
| Max. Operating Speed | 10,000 min-1 |
| Operating Temperature Range | -55 to +150°C |
