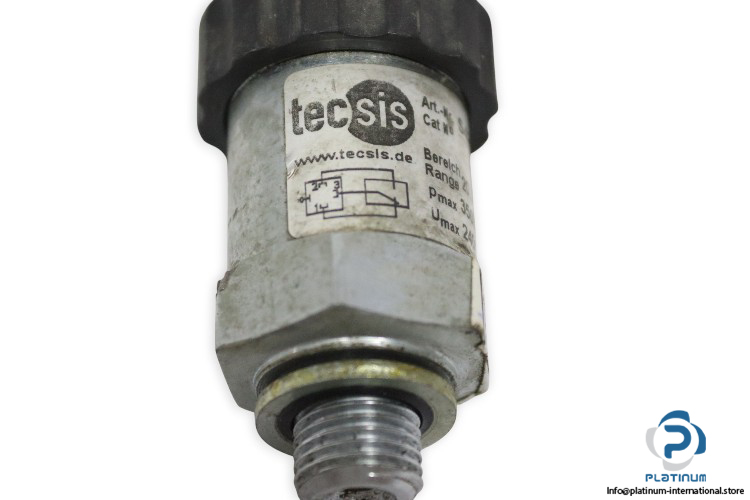

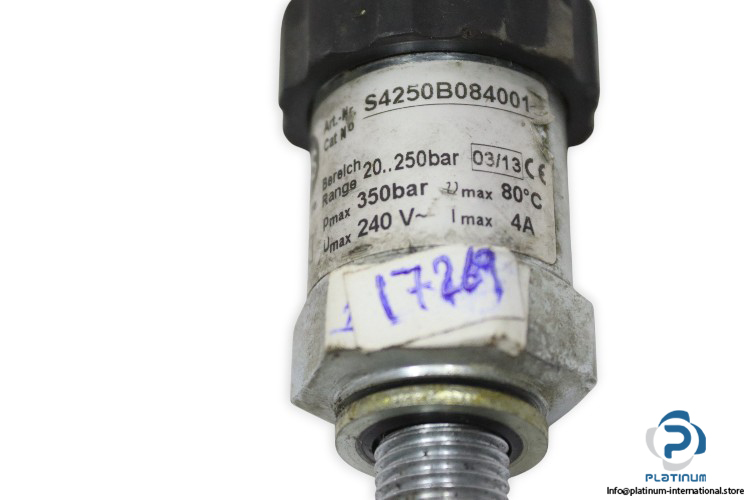

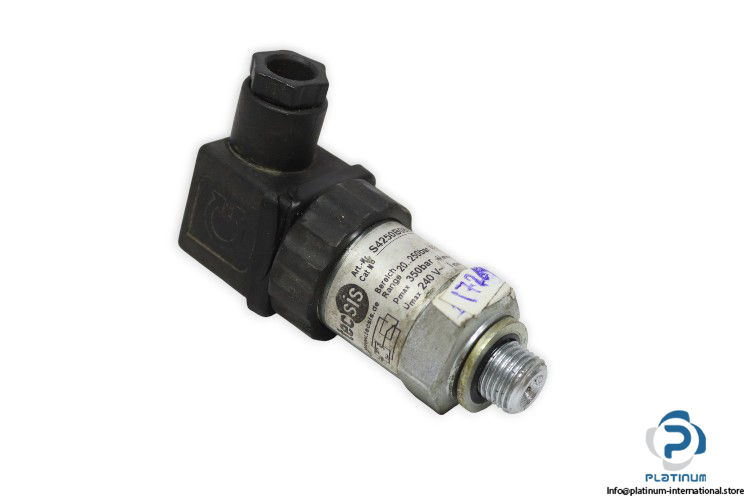

Tecsis S4250B084001 Pressure Switch
Used
In stock1 unitReady to ship
Pressure Switch
Tecsis S4250B084001 pressure switch with 20 to 250 bar measuring range, 240 VAC supply, and IP65 protection. Designed for compressed air and neutral fluid applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Tecsis S4250B084001 Pressure Switch
The Tecsis S4250B084001 is a robust pressure switch designed for reliable pressure monitoring and control in industrial systems. It is suitable for compressed air, neutral fluids, and self-lubricating fluids, offering stable switching performance and durable construction.
Manufacturer: Tecsis
Type: Pressure Switch
Model: S4250B084001
Series: S4250
Code: 03/13
Connection
| Fluid | Compressed Air, Neutral Fluid, Self-Lubricating Fluid |
| Pressure Measuring Range | 20 To 250 Bar |
| Overload Limit | 350 Bar |
| Voltage | 240 VAC |
| Current | Max. 4 A |
| Ambient Temperature | Max. 80 °C |
| Switching Output | CO |
| Protection Degree | IP65 |
| Material | Zinc Plated Steel Body, NBR Diaphragm |
| Connection Type | G 1/4 Threaded |
