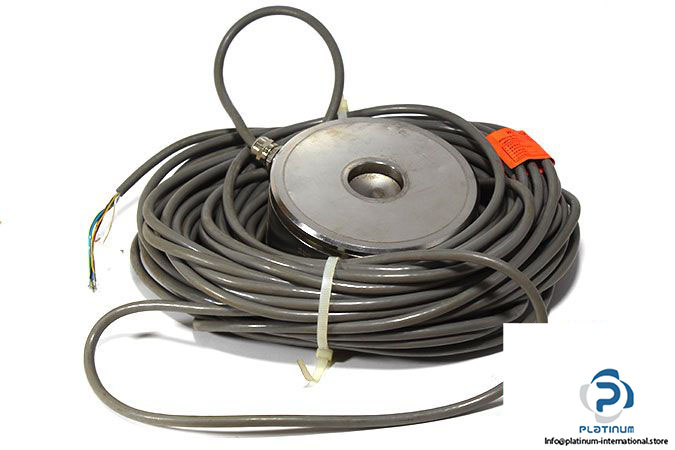

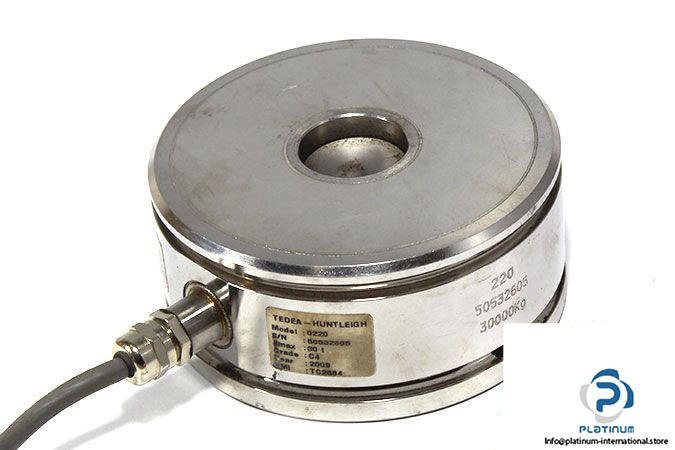

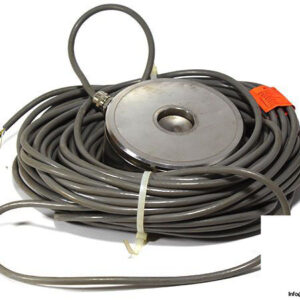

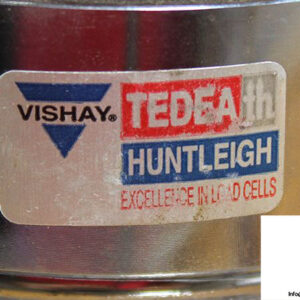

Tedea Huntleigh 0220 MAX 30000 KG High Accuracy Compression Load Cell

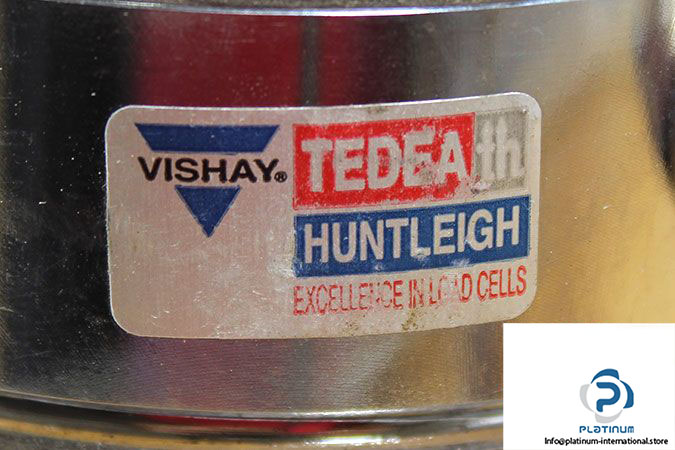

Manufacturer: TEDEA-HUNTLEIGH

Type: High Accuracy Compression Load Cell

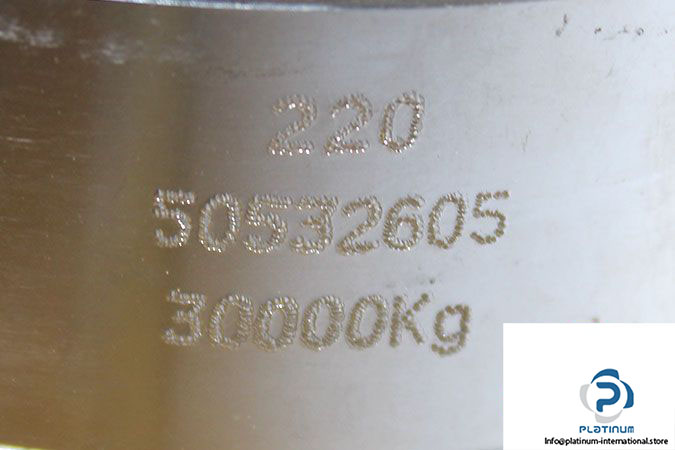

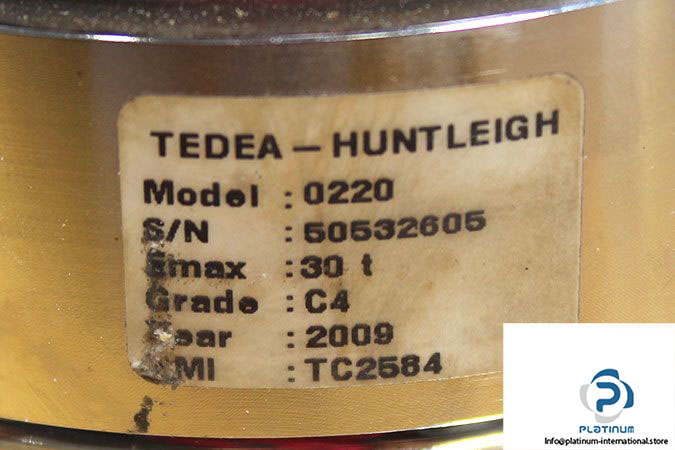

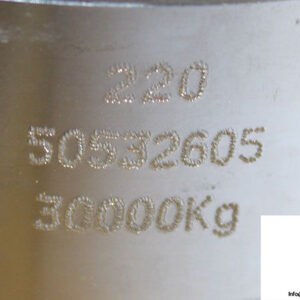

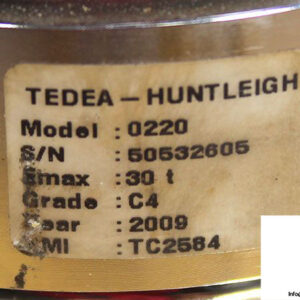

Model: 0220

FEATURES

• Capacities 30000 Kg
• Stainless Steel Construction
• OIML R60 And NTEP Approved
• IP68 Protection
• Optional


  • EEX IA IIC T6 Hazardous Area Approval
  • FM Approval Available

APPLICATIONS

• Truck scales
• Hopper for process weighing
• Tank and silo weighing
• Harsh environment

Maximum weight limit (E max): 30000 kg (30t)

Rated Output: 2.0 mV/V

Temperature Compensation: -10…40 °C

Input Impedance: 1065±60 Ω

Output Impedance: 1025±20 Ω

Cable Length: 5 m

Cable Type: 6-Wire, Braided, Polyurethane, Dual Floating Screen

Class: C4

Protection Class: IP68

Weight: 3.280 kg
