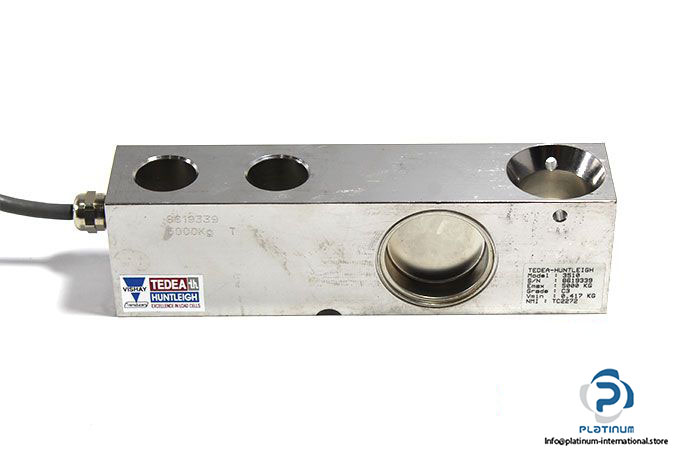

Tedea Huntleigh 3510 MAX 5000 KG Shear Beam Load Cell
Manufacturer: TEDEA HUNTLEIGH
Type: Shear Beam Load Cell

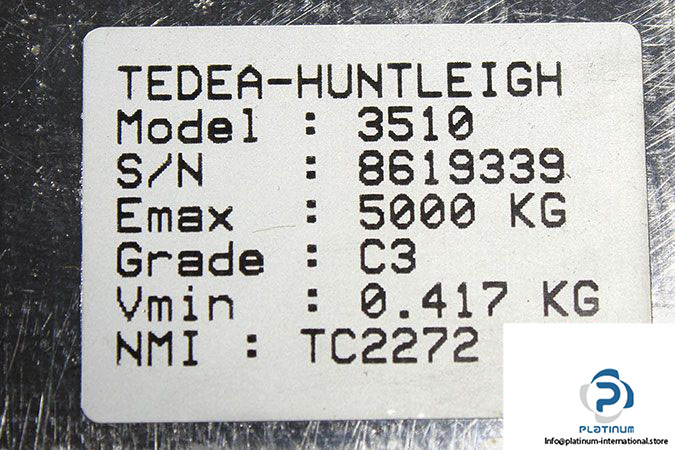

Model: 3510
FEATURES
- Capacities 5000 kg
- Stainless Steel Construction
- OIML R60 And NTEP Approved
- Hermetically Sealed to IP68
- Specially Designed for Harsh Environment
APPLICATIONS
- Low Profile Platforms
- Pallet Truck Weighing
- Tank and Silo Weighing
- Harsh Environment Weighing
- Food Industry Weighing
Maximum Weight Limit (E Max): 5000 kg
Rated Output: 2.0 mV/V
Temperature Compensation: -10…40 °C
Input Impedance: 380±10 Ohm
Output Impedance: 350±3 Ohm

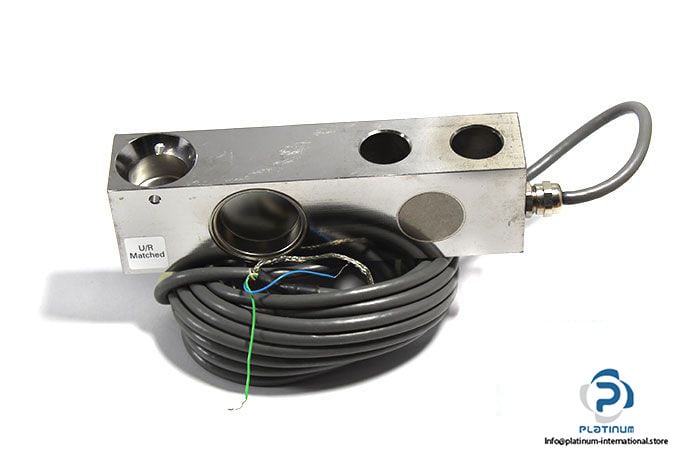

Cable Length: 5 m
Cable Type: 6-Wire, Braided, Polyurethane, Dual Floating Screen
Grade: C3
Protection Class: IP68
Weight: 2.095 kg
