TEE Q2D 90L2C-40 H Electric Motor
Used
In stock1 unitReady to ship
3-Phase Electric Motor
Arcelik TEE Q2D90L2C-40 H 1.5 kW three-phase motor with IE2 efficiency, S1 duty, IP55 protection, and TEE inverter drive for variable speed control. Ideal for industrial automation systems requiring energy-efficient continuous operation.1.53ArcelikB3DriveElectricHIE2IndustrialInvInverterIP55kWMA4motormountedPhaseQ2D90L2C-40SpeedteeVariable
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

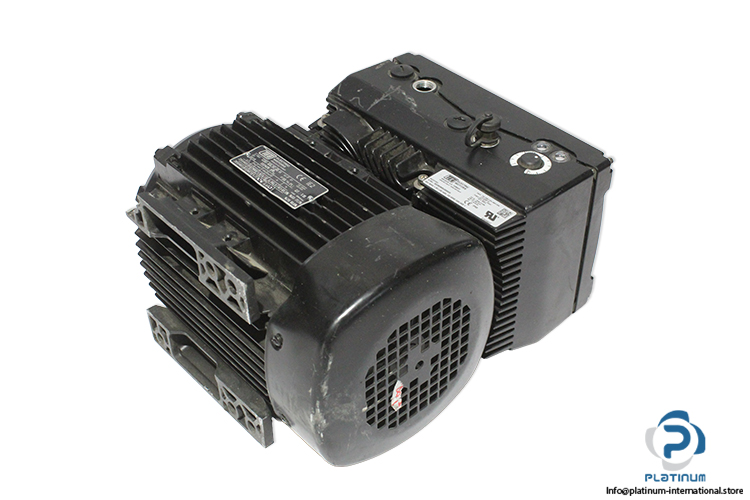

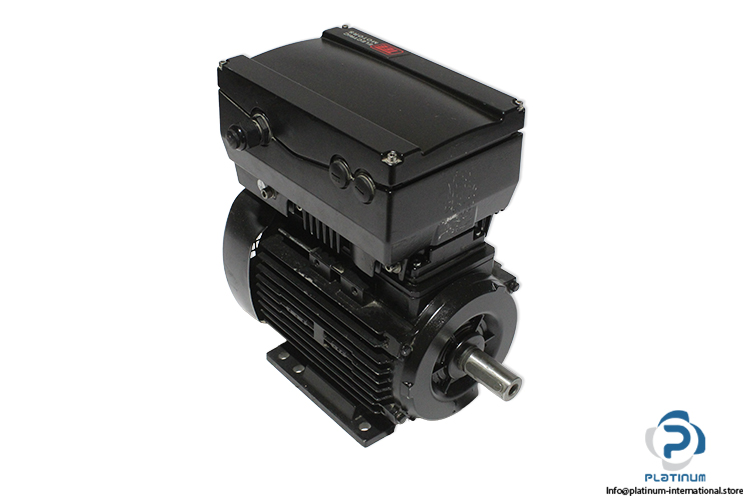

Arcelik TEE Q2D90L2C-40 H 3-Phase Electric Motor
The Arcelik TEE Q2D90L2C-40 H is a high-efficiency three-phase electric motor designed for industrial drive applications requiring reliable performance, continuous operation, and flexible voltage configurations. Supplied with a TEE inverter drive attachment, it offers precise speed control and extended operational capability.
Manufacturer: Arcelik
Brand: TEE
Type: 3-Phase Electric Motor
Model: Q2D90L2C-40 H
Ref. No.: 037476

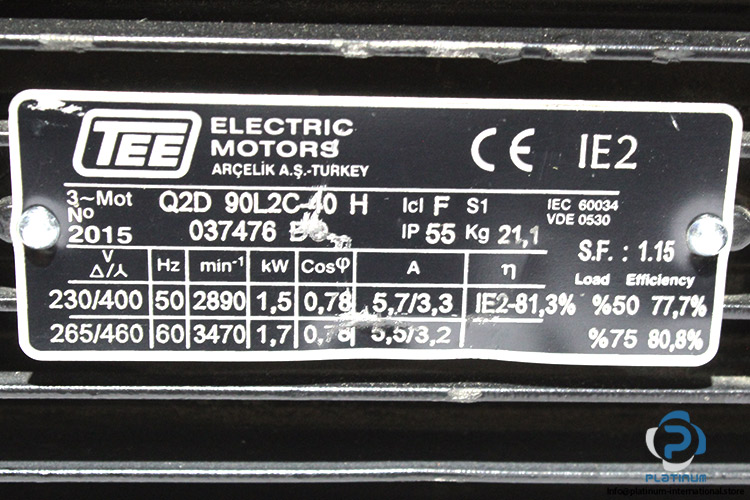

Electrical Data “ 50 Hz Operation:
Electrical Data “ 60 Hz Operation:

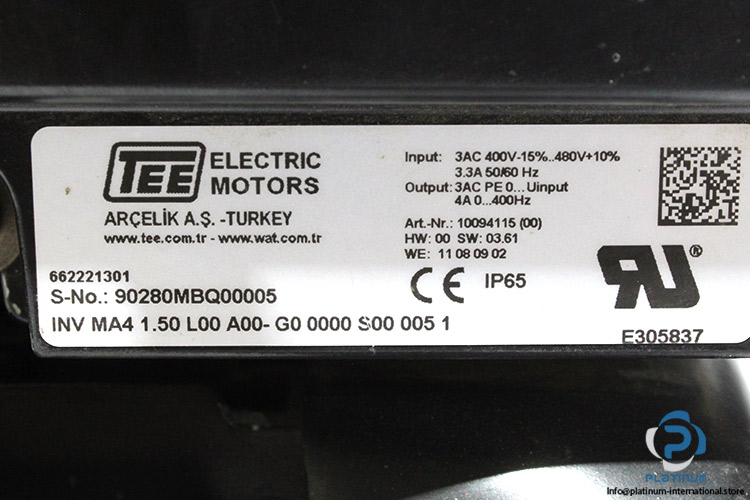

Inverter Drive Attachment
Recommended for pumps, compressors, conveyor systems, and industrial automation lines requiring speed control and continuous-duty reliability.
| Voltage (Delta/Star) | 230 / 400 V |
| Frequency | 50 Hz |
| Speed | 2890 rpm |
| Rated Power | 1.5 kW |
| Power Factor (Cos) | 0.78 |
| Rated Current | 5.7 / 3.3 A |
| Voltage (Delta/Star) | 265 / 460 V |
| Frequency | 60 Hz |
| Speed | 3470 rpm |
| Rated Power | 1.7 kW |
| Rated Current | 5.5 / 3.2 A |
| Power Factor (Cos) | 0.78 |
| Efficiency (Full Load) | 81.3 % |
| Efficiency at 50 % Load | 77.7 % |
| Efficiency at 75 % Load | 80.8 % |
| Duty Type | S1 (Continuous Duty) |
| Insulation Class | F |
| Protection Class | IP55 |
| Standard | IEC 60034 / VDE 0530 |
| Efficiency Class | IE2 |
| Service Factor (S.F.) | 1.15 |
| Mounting | B3 |
| Brand | TEE |
| Serial No. | 90280MBQ00005 |
| Part No. | 662221301 |
| Part No. | 10094115 (00) |
| Input Voltage | 3 AC 400 V / 480 V |
| Input Current | 3.3 A |
| Input Frequency | 50 / 60 Hz |
| Output | 3 AC 0 - 400 / 480 V |
| Output Current | 4 A |
| Output Frequency Range | 0 / 400 Hz |
| Hardware Version (HW) | 00 |
| Software Version (SW) | 03.61 |
| WE Code | 11 08 09 02 |
| Protection Class | IP65 |
| Certification Marks | CE, RU (E305837) |
