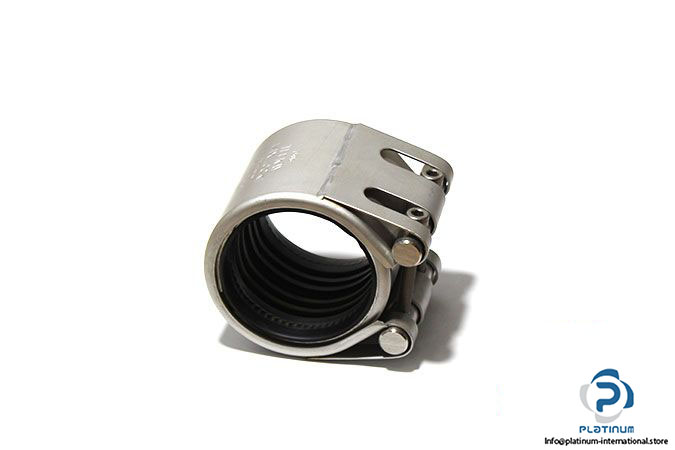

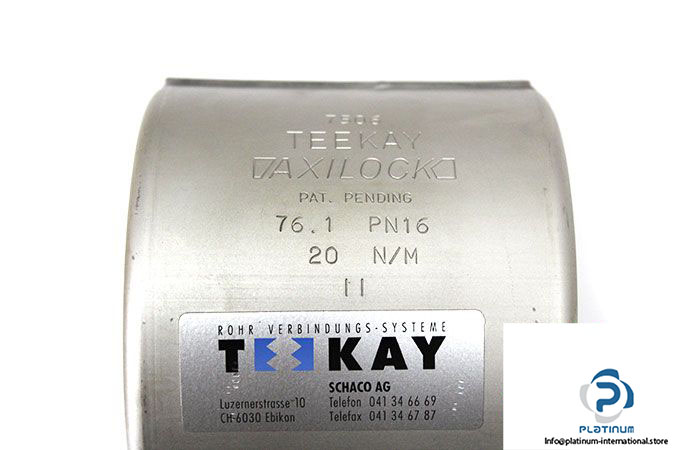

Teekay Axilock 76.1 Pipe Coupling

Manufacturer: TEEKAY

Type: PIPE COUPLING

Model: AXIFLEX Type II blue

Pipe materials: Carbon steel, stainless steel, copper, cunifer, GRE

Size: 76.1 (2. ½ ”), 75/78 mm tolerance

Working Pressure:

for marine application: 16 bar

for industrial and land-based applications: 42 bar

Materials:

• Gasket: EPDM
• Fasteners: AISI 316/ 316L
• Casing: AISI 304/DIN 1.4301

Screw size: 2 x M 8

Torque rate: 20 Nm

Temperature: -40°C … +100°C

Weight: approx. 1.5 kg
