Tekel TS581.F3.1024.5.S.K6.8.L10.LD2-5.X795. Optical Incremental Encoder
New
In stock3 unitsReady to ship
Optical Incremental Encoder
High-precision Italsensor TEKEL incremental encoder with 1024 PPR resolution, 5V supply, 58 mm body, and line driver output for accurate motion control and industrial automation applications.102458mm5VAutomationControlDriverEncoderIncrementalIndustrialItalsensorLineMotionOpticalPositionPPRTekelTS58
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

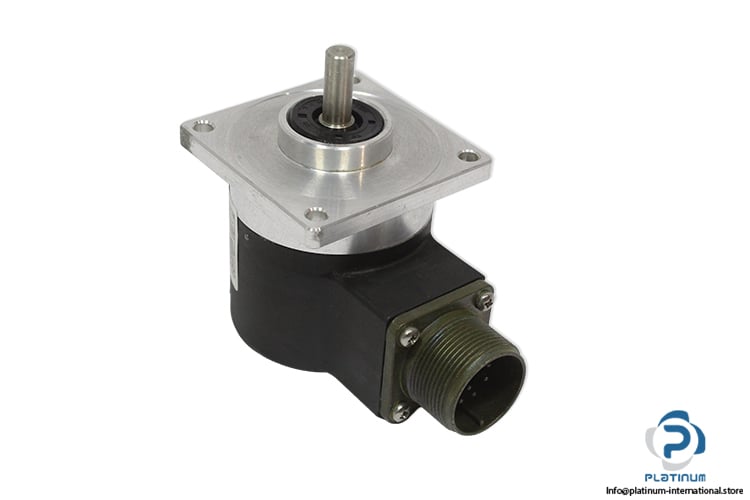

Italsensor TEKEL TS581.F3.1024.5.S.K6.8.L10.LD2-5.X795 Optical Incremental Encoder
The Italsensor TEKEL TS581 optical incremental encoder is a precision motion feedback device designed for industrial automation and control systems. Built within a durable 58 mm housing and equipped with a high-resolution output, this encoder ensures accurate position and speed detection for machinery, robotics, and automated production equipment.
Manufacturer: Italsensor TEKEL
Type: Optical Incremental Encoder
Model: TS581.F3.1024.5.S.K6.8.L10.LD2-5.X795
Series: TS58

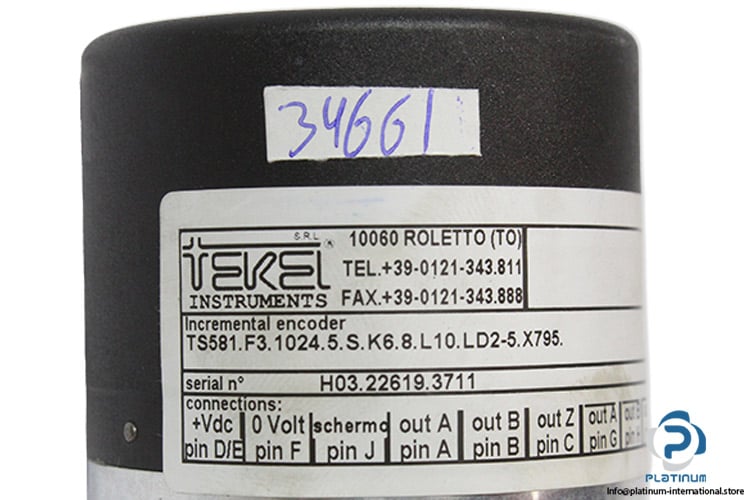

Serial No.: H03.22619.3711

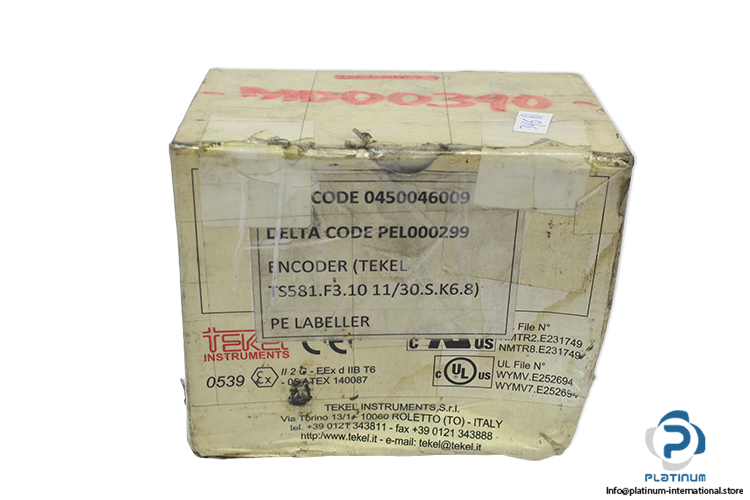

Code: PEL000299, 0450046009
| Body Diameter | 58 mm |
| Flange | Square Flange |
| Resolution | 1024 PPR |
| Voltage Supply | 5 V |
| Output Frequency | From 0 Up To 100 KHz |
| Solid Shaft Diameter | 8 mm |

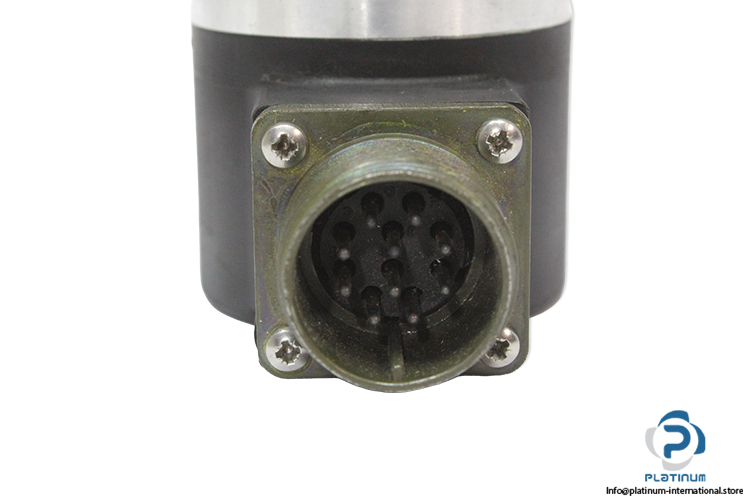

| Electrical Connections | 10 Pins Radial MIL Connector |
| Output Circuits | Line Driver 5Vcc Only 5V |
| Shaft Material | Stainless Steel |
| Shaft Rotation Speed | 10,000 RPM Short Cycle Time; 6000 RPM Continuous; 2000 RPM With Hollow Shaft Proof |
| Starting Torque At 25°C | 0.025 Nm; 0.040 Nm With Hollow Shaft Proof |
| Flange Material | Aluminium Non-Corroding |
| Operating Temperature Range | -10°C To +70°C |
| Protection Class | IP66 |
