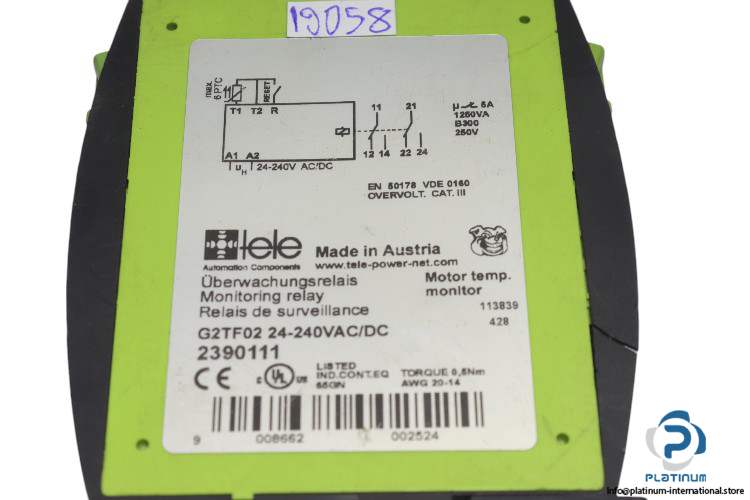

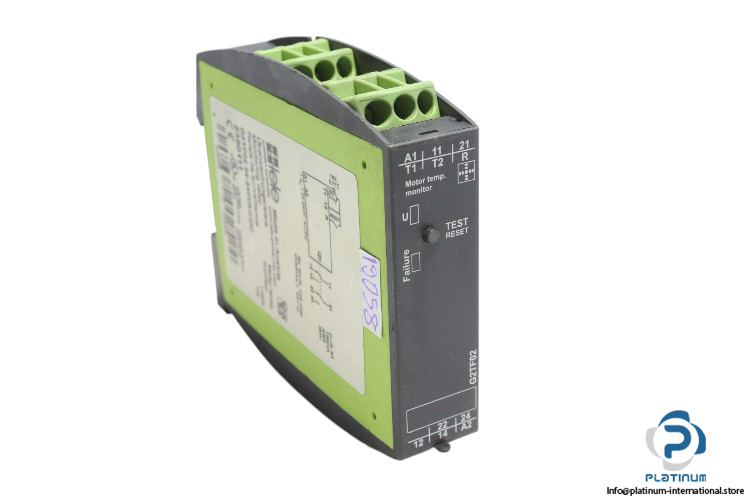

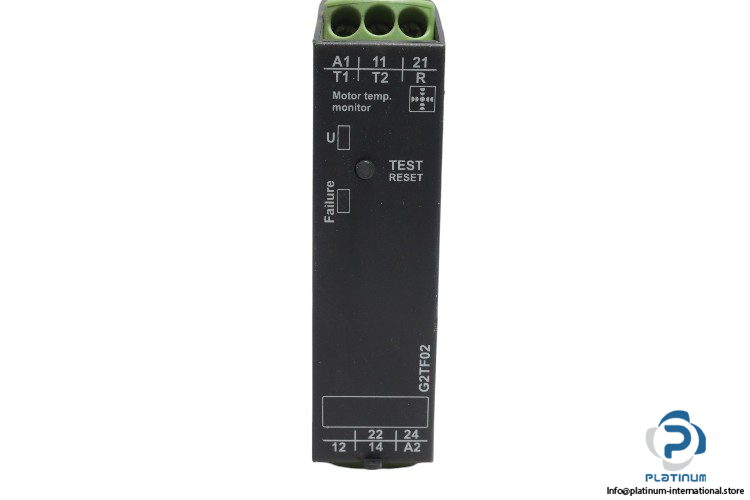

Tele G2TF02 24-240VAC/DC Temperature Monitoring Relay
Monitoring Relay
The Tele Monitoring Relay G2TF0224-240VAC/DC offers a supply voltage range of 24 to 240 V AC/DC, with high switching capacity and fast acting fuse. Ideal for precise control and monitoring in industrial systems.Tele Monitoring Relay G2TF0224-240VAC/DC
The Tele G2TF0224-240VAC/DC Monitoring Relay is a versatile and reliable component designed for monitoring applications. With its wide supply voltage range from 24 to 240 V AC/DC and compact design, this relay ensures optimal performance and safety in various industrial and commercial environments. Its robust features, including change-over contacts and high switching capacity, make it ideal for diverse monitoring tasks.
Manufacturer: Tele
Type: Monitoring Relay
Model: G2TF0224-240VAC/DC
Part No.: 2390111
Series: GAMMA
Perfect for applications in monitoring and control systems, the Tele G2TF0224-240VAC/DC provides precise control and protection, ensuring safe and reliable operations in a wide range of industrial environments.
| Supply Voltage | 24 to 240 V AC/DC |
| Rated Consumption | 4.5 VA (1 W) |
| Reset Time | 500 ms |
| Rated Surge Voltage | 4 kV |
| Contact | 2 change-over contacts |
| Rated Voltage | 250 V AC |
| Switching Capacity (distance <5mm) | 750 VA (3A / 250 V AC) |
| Switching Capacity (distance >5mm) | 1260 VA (6A / 250 V AC) |
| Fusing | 5A fast acting |
| Ambient Temperature | -25 to +55°C |
| Dimensions | 103 x 22.5 x 90 mm |
