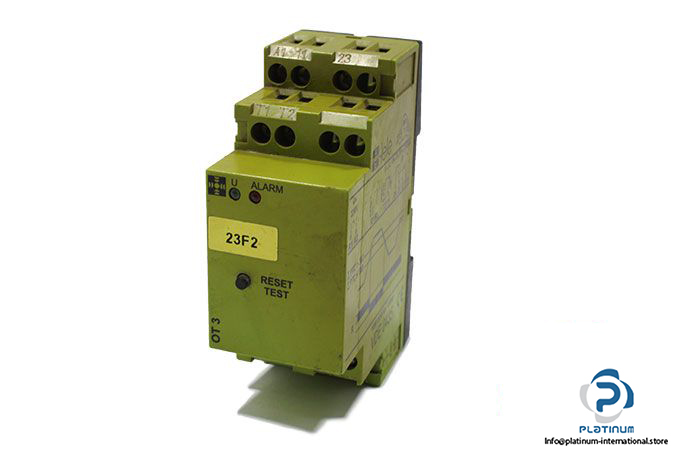

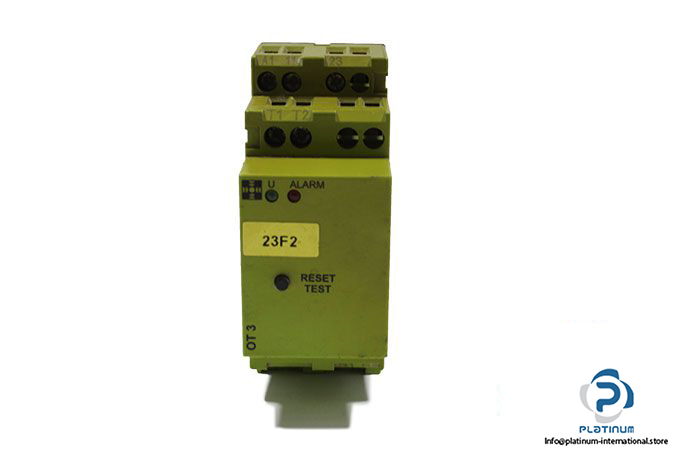

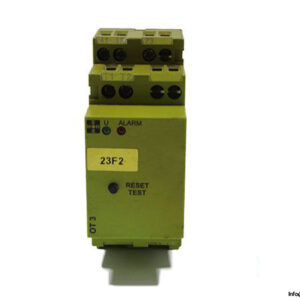

Tele OT3 Monitoring Relay

Manufacturer: TELE

Type: Monitoring Relay

Model: OT3

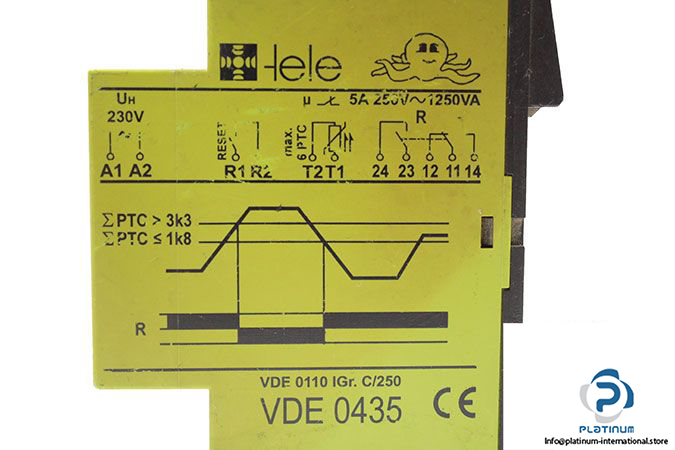

Temperature monitoring of the motor winding (max. 6PTC)

Function: External reset key

Voltage: 230 V AC

Rated Frequency: 48 to 63Hz

Rated Consumption: 2VA (1.5W)

Contacts: 1 Changeover and 1 Normally Open (SPDT + SPST)

Switching Capacity: 250 V AC, 5A

Power Consumption Currents: 1250 VA

Input: Thermistor terminals T1-T2

Initial Resistance: < 1.5 kΩ

Dimensions: 35.5 x 87.4 x 65 mm

Ambient Temperature: -25 …  55 °C

Weight: 0.14 kg
