Telemecaniquc XEN-L1111 Spring Return Contact Block

Name: TELEMECANIQUC XEN-L1111 SPRING RETURN CONTACT BLOCK
SKU: 1073396
Availability: LimitedAvailability

Used

In stock1 unitReady to ship

Spring Return Contact Block

The Telemecanique XEN-L1111 is a spring return contact block featuring a 1 NO slow-break contact, 6 kV impulse withstand voltage, and wide terminal compatibility. Built for reliable performance in industrial control systems.

Manufacturer

TELEMECANIQUC

SKU

1073396

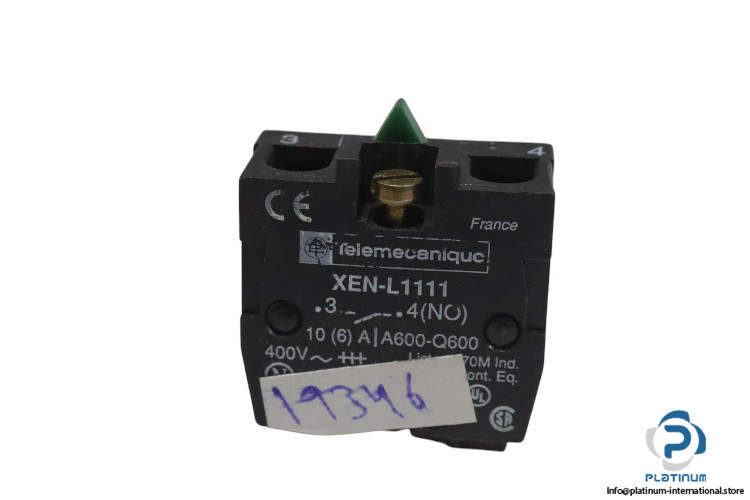

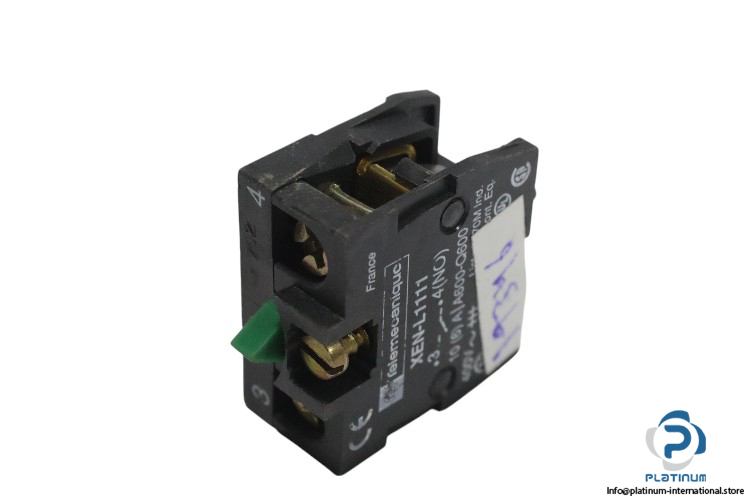

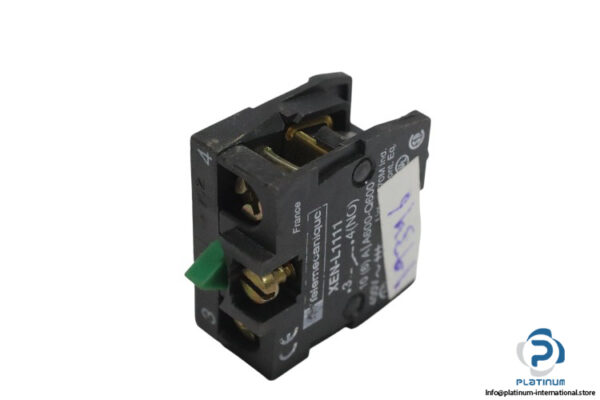

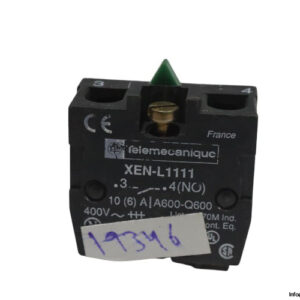

Telemecanique XEN-L1111 Spring Return Contact Block

The Telemecanique XEN-L1111 is a high-quality spring return contact block designed for reliable and safe control applications. Featuring a slow-break contact mechanism and durable construction, it is suitable for demanding industrial environments.

Manufacturer: Telemecanique

Type: Spring Return Contact Block

Model: XEN-L1111

Technical Data:

Contacts Type: 1 NO
Contact Operation: Slow-break
Operating Force: 1 N NO changing electrical state
Connections “ Terminals:
- Screw clamp terminals, 1 x 0.5…1 x 2.5 mm² without cable end
- Screw clamp terminals, 1 x 0.5…2 x 1.5 mm²
Short-Circuit Protection:
- 10 A cartridge fuse type gL (IEC 60269-1)
- 10 A cartridge fuse type gL (VDE 0660-200)
Rated Impulse Withstand Voltage: 6 kV (IEC 60947-1)
Rated Operational Current:
- 3 A at 240 V, AC-15, A600
- 0.27 A at 250 V, DC-13, Q600 (IEC 60947-5-1 appendix A)
Ambient Air Temperature for Operation: -25 / 70 °C
