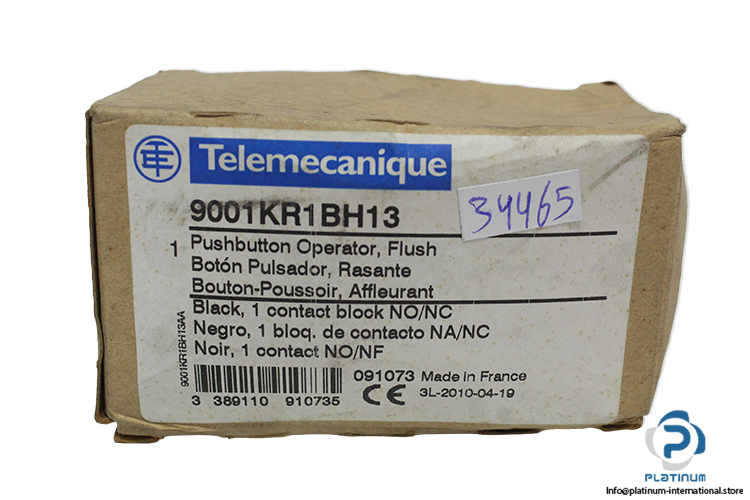

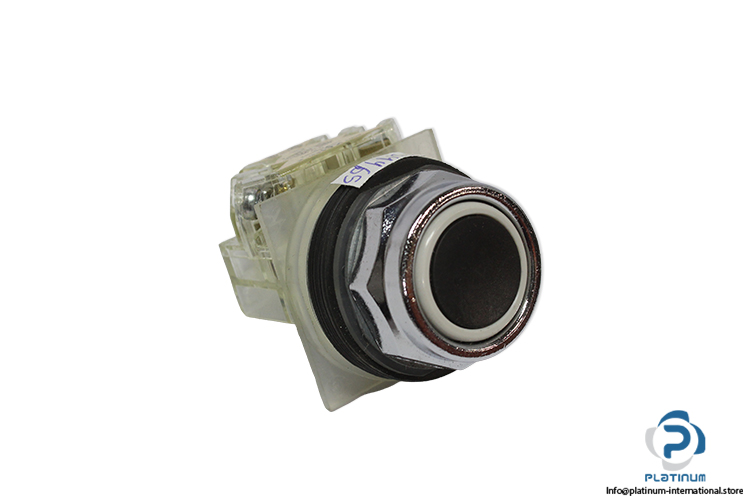

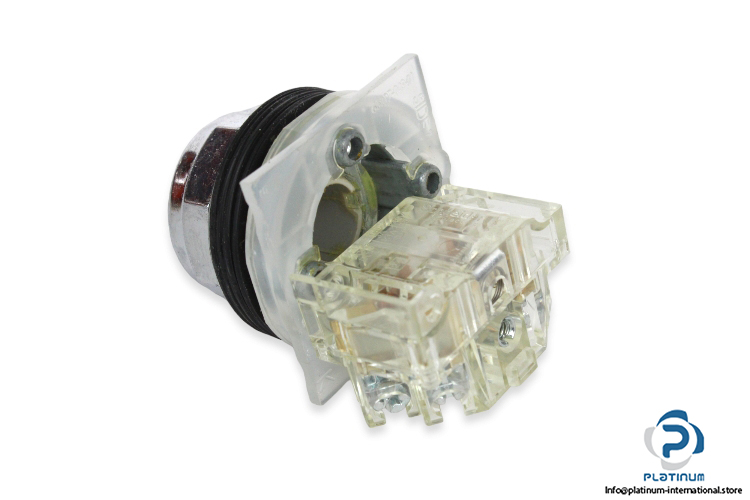

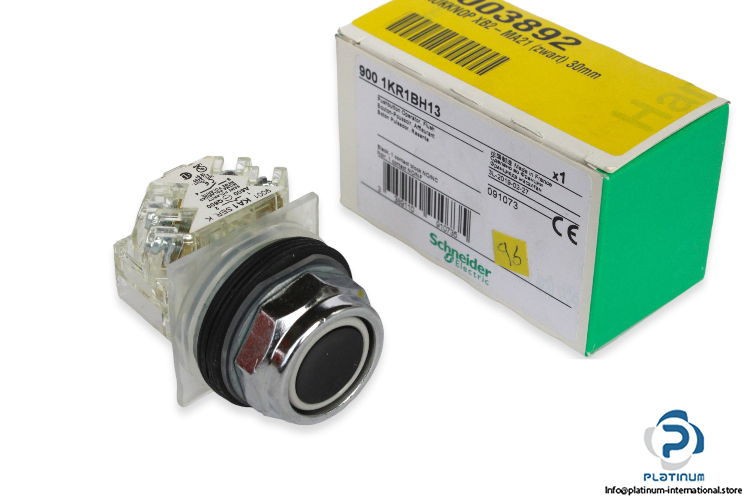

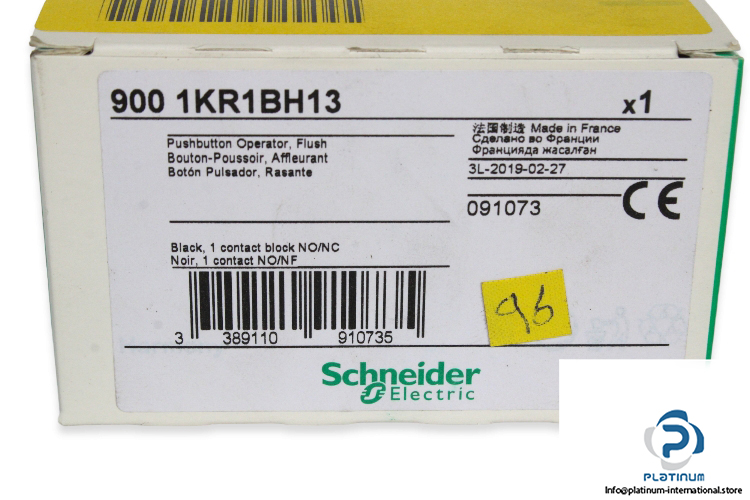

Telemecanique 9001KR1BH13 Push Button

Manufacturer: TELEMECANIQUE

Type: push button

Device short name: 9001K

Model: 9001KR1BH13

Part no: 091073



Size: 30 mm

Type of operator: Spring return

Operator profile: Black flush, unmarked

Operator additional information: Metal guard

Bezel material: Metal

Mounting diameter: 1.18 in (30 mm)

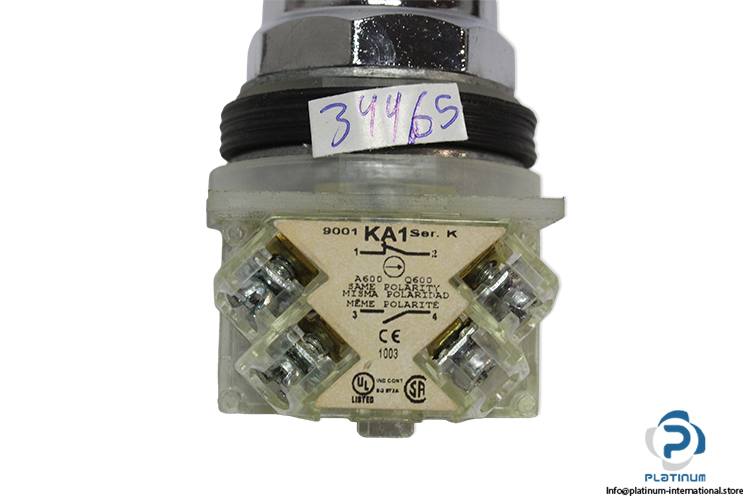

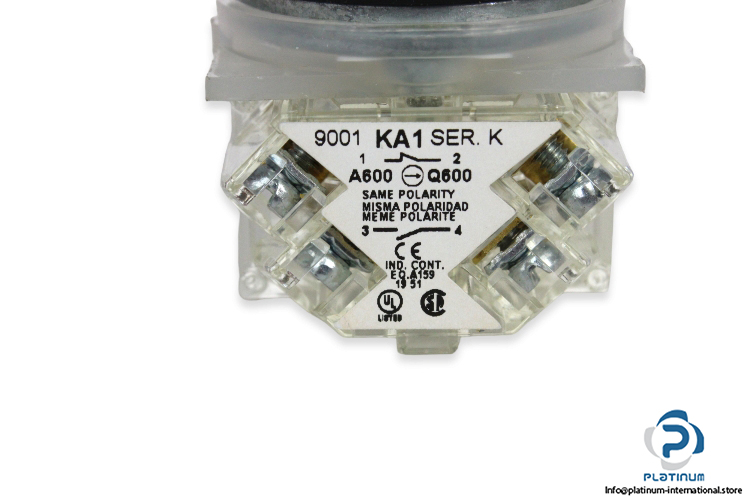

Contacts type and composition: 1 C/O

Connections – terminals: Screw clamp terminals 1 x 0.22…2 x 1.5 mm² IEC 60947-1

Tightening torque: 7.08 lbf.in (0.8 N.m) IEC 60947-1

Shape of screw head: Cross slotted

[Ie] rated operational current: 3 A 240 V, AC-15

0.55 A 125 V, DC-13

[Ui] rated insulation voltage: 250 V

Ambient Temperature: -25…70 °C
