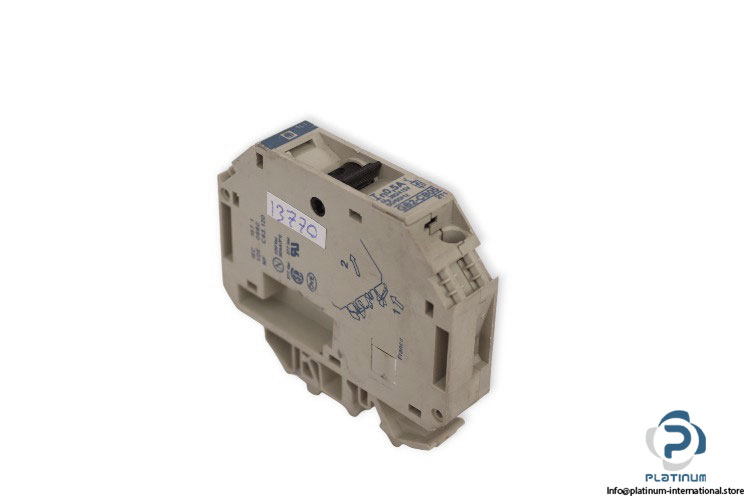

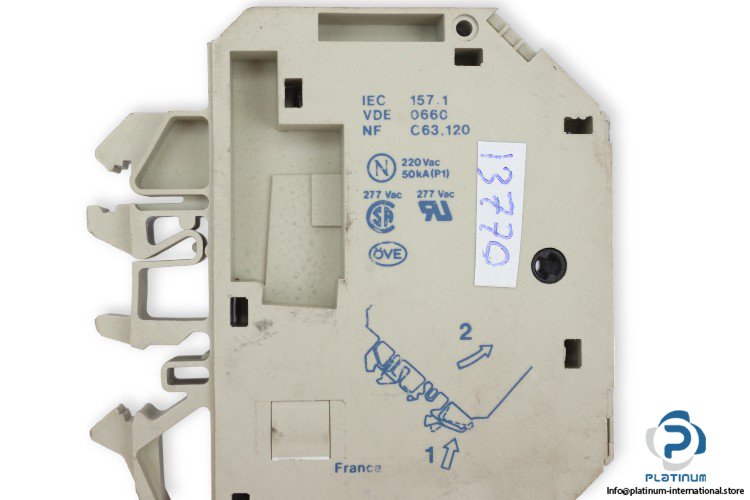

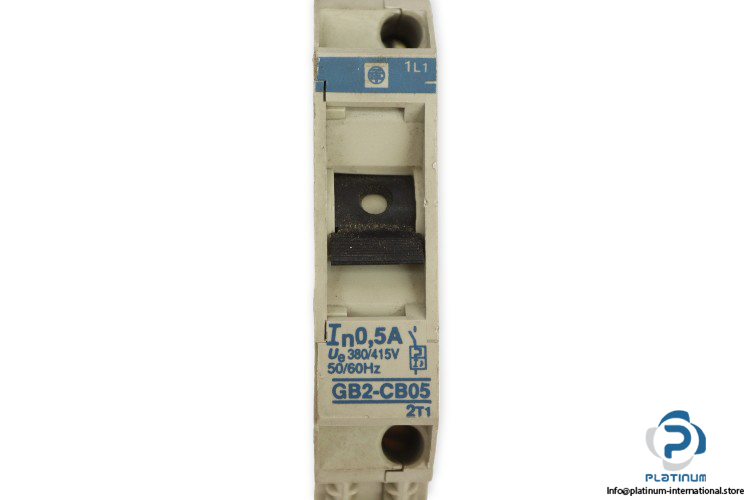

Telemecanique GB2-CB05 Circuit Breaker
Circuit Breaker
The Telemecanique GB2CB05 Circuit Breaker offers 0.5A protection with a rated voltage of 380/415V AC. Designed for industrial and automation applications, it ensures reliable circuit control.Telemecanique GB2CB05 Circuit Breaker
The Telemecanique GB2CB05 Circuit Breaker is a reliable and high-performance device designed for control applications. Engineered for precision and safety, it provides excellent protection with its rated operational voltage of 380/415V AC and a line-rated current of 0.5A. With a compact design and robust construction, this circuit breaker ensures efficient operation in industrial and automation environments.
Manufacturer: Telemecanique
Type: Circuit Breaker
Model: GB2CB05
Rated Service Short-Circuit Breaking Capacity (Ics):
50 kA at 110 V AC
12.5 kA at 230/240 V AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
50 kA at 110 V AC
50 kA at 230/240 V AC
1.5 kA at 24 V DC
1 kA at 48 V DC
Compact and durable, the Telemecanique GB2CB05 is ideal for industrial and automation applications where precise circuit protection is required.
| Product Name | TeSys GB2 |
| Device Short Name | GB2 |
| Device Application | Control |
| Rated Operational Voltage (Ue) | 380 / 415 V AC |
| Frequency | 50/60 Hz |
| Line Rated Current (In) | 0.5 A |
| Magnetic Tripping Current | 6.6 A |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Power Dissipation Per Pole | 2 W |
| Standards Compliance | EN/IEC 60947-1, EN/IEC 60947-2, CSA C22.2 No 235, UL 1077 |
| Number of Poles | 1 Pole |
| Mounting Mode | By Clips |
| Mounting Support | Rail Plate |
| Mounting Position | Horizontal, Vertical |
| Control Type | Toggle |
| Ambient Air Temperature for Operation | -20 / 60°C |
| Degree of Protection | IP20 |
| Dimensions (W x D x H) | 74 x 15 x 67 mm |
