Telemecanique GV2-M06 Motor Starter
Used
In stock1 unitReady to ship
Motor Starter
The Telemecanique GV2M06 Motor Starter is designed for motor protection with a rated current range of 1 / 1.6 A, 690 V operational voltage, and 100 kA short-circuit breaking capacity. Featuring a thermal-magnetic trip unit and push-button control, it ensures safe and reliable motor operation.1.6A690V947CompliantControlDINGV2M06IECIndustrialMagneticmotorProtectionPush-ButtonrailStarterTelemecaniqueThermal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

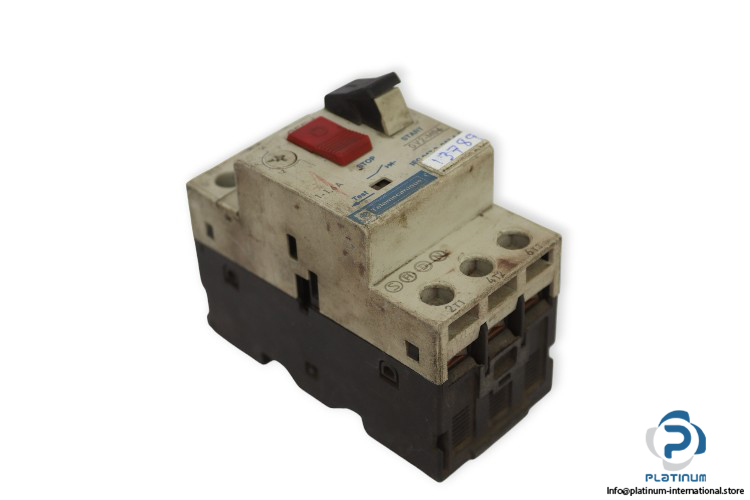

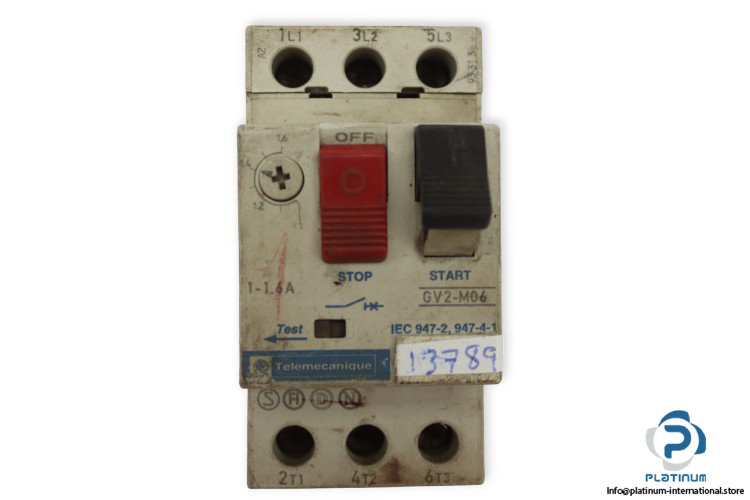

Telemecanique GV2M06 Motor Starter
The Telemecanique GV2M06 Motor Starter is a compact and reliable solution for motor protection applications. Designed with thermal-magnetic trip technology, it ensures precise and efficient overload and short-circuit protection. Its high breaking capacity and robust design make it ideal for industrial automation and motor control systems.
Manufacturer: Telemecanique
Type: Motor Starter
Model: GV2M06
Ideal for industrial motor control applications, the Telemecanique GV2M06 provides high reliability, safety, and durability in demanding environments.
| Device Application | Motor Protection |
| Rated Current Range (Ie) | 1 / 1.6 A |
| Conventional Free Air Thermal Current (Ith) | 1.6 A |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Voltage (Ue) | 690 V |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Trip Unit Technology | Thermal-Magnetic |
| Number of Poles | 3 P |
| Frequency | 50/60 Hz |
| Standard Compliance | IEC 947-2, 947-4-1 |
| Fixing Mode | 35 mm Symmetrical DIN Rail |
| Rated Service Short-Circuit Breaking Capacity (Ics) at 400 V AC | 100 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) at 400 V AC | 100 kA |
| Motor Power | 0.75 kW at 690 V AC 50/60 Hz |
| Control Type | Push-Button |
| Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | -20 / 60 °C |
| Dimensions | 45 x 89 x 78.5 mm |
