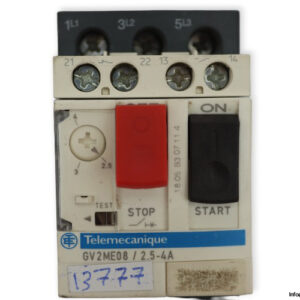

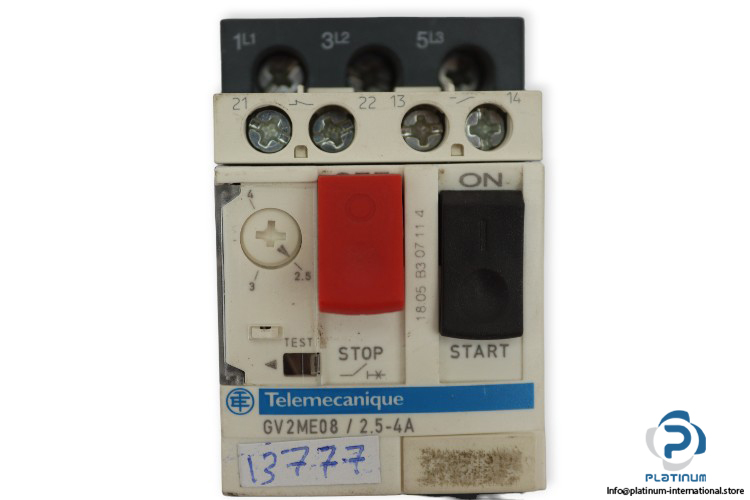

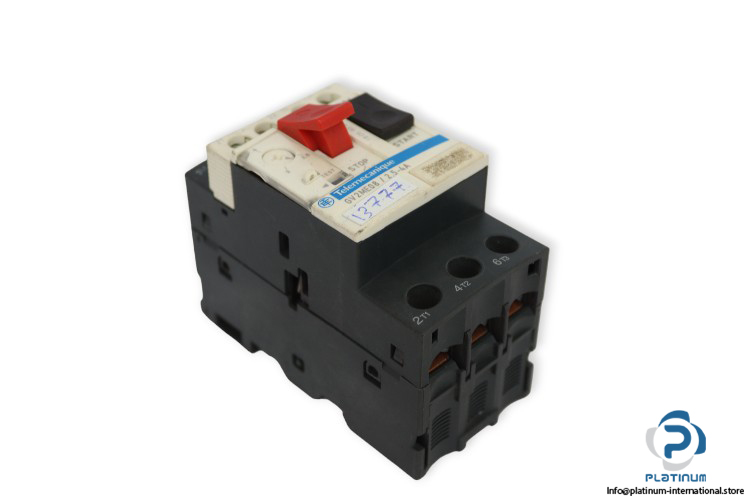

Telemecanique GV2ME08/2.5-4A Motor Circuit Breaker
Motor Circuit Breaker
The Telemecanique GV2ME082.54A Motor Circuit Breaker features a 2.5-4 A thermal protection range, 51 A magnetic tripping, and a 100 kA breaking capacity. Designed for motor protection, it ensures reliable and safe operation in industrial applications.Telemecanique GV2ME082.54A Motor Circuit Breaker
The Telemecanique GV2ME082.54A Motor Circuit Breaker is a high-performance protection device designed for motor protection applications. With a thermal protection adjustment range of 2.5 to 4 A and a magnetic tripping current of 51 A, this circuit breaker ensures efficient overload and short-circuit protection. Built to comply with IEC/EN 60947 standards, it provides reliable safety in industrial environments.
Manufacturer: Telemecanique
Type: Motor Circuit Breaker
Model: GV2ME082.54A
Product Name: TeSys GV2, TeSys Deca
Device Short Name: GV2ME
Device Application: Motor Protection
Optimized for motor protection, the Telemecanique GV2ME082.54A ensures high-performance operation with precise overload and short-circuit protection, making it ideal for industrial applications.
| Thermal Protection Adjustment Range | 2.5 “ 4 A |
| Magnetic Tripping Current | 51 A |
| Rated Current (Ie) | 4 A |
| Rated Operational Voltage (Ue) | 690 V AC |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Frequency | 50/60 Hz |
| Motor Power | 1.1 kW (400/415 V AC 50/60 Hz), 1.5 kW (400/415 V AC 50/60 Hz) |
| Breaking Capacity (Icu) | 100 kA (400/415 V AC) |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA (400/415 V AC) |
| Conventional Free Air Thermal Current (Ith) | 4 A |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Power Dissipation Per Pole | 2.5 W |
| Standard Compliance | IEC / EN 60947-2, IEC / EN 60947-4-1 |
| Poles Description | 3P |
| Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | -20 / 60 °C |
| Dimensions | 78 x 45 x 67 mm |
