Telemecanique LC1 D40P7 Contactor
New
In stock1 unitReady to ship
Contactor
Three-pole industrial contactor from the TeSys range with 230 V AC coil, rated 40 A AC-3, suitable for motor control and power switching applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

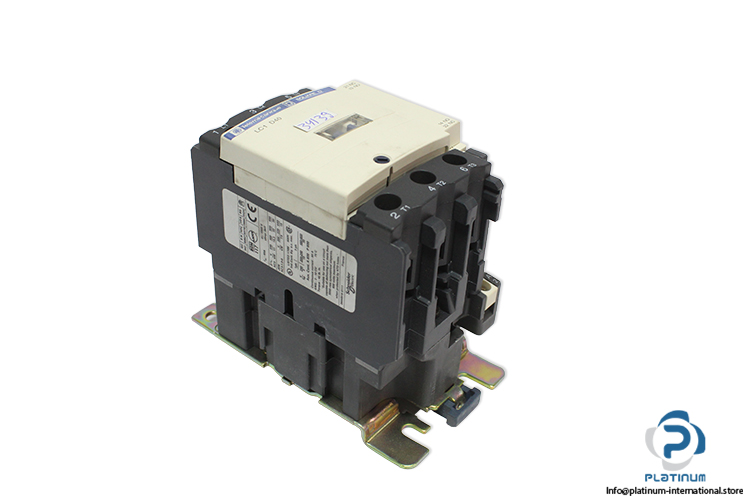

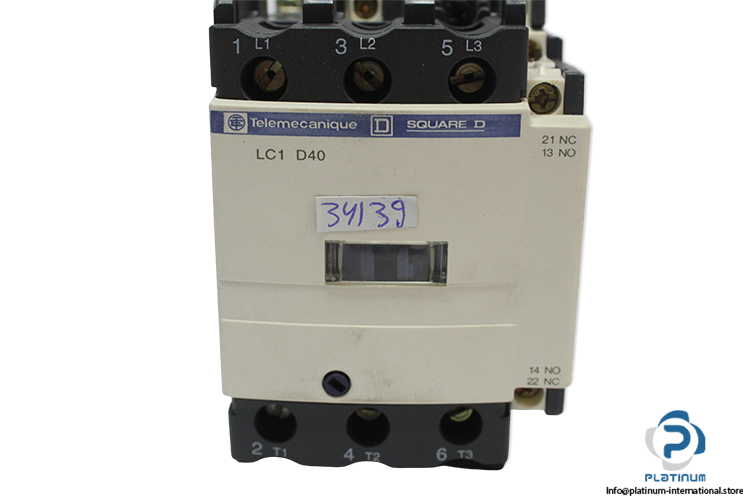

TELEMECANIQUE LC1 D40P7 Contactor
The TELEMECANIQUE LC1D40P7 contactor from the TeSys range is designed for reliable control of motors and power circuits in industrial applications. It offers high electrical endurance, stable switching performance, and robust construction suitable for demanding operating conditions.
Manufacturer: TELEMECANIQUE SCHNEIDER SEQUARE D
Type: Contactor
Model: LC1 D40P7
Part No.: 041748
Power Rating AC-3:
Horse Power:
| Range | TeSys |
| Short Name | LC1D |

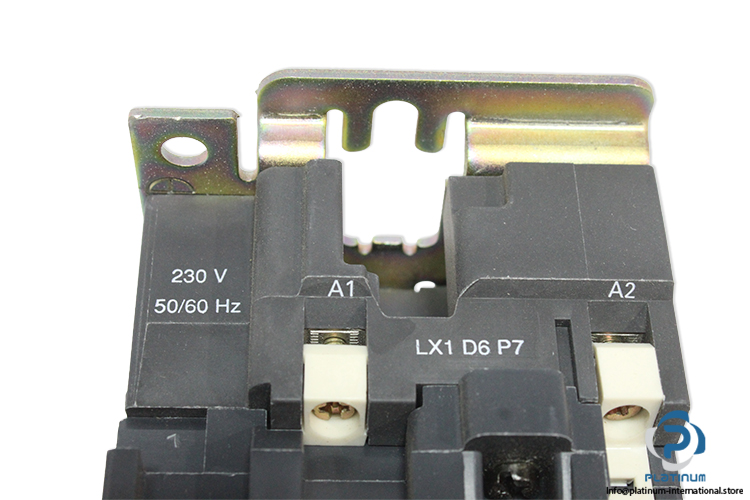

| Coil Voltage | 230 V AC, 50 / 60 Hz |
| Rated Operational Voltage | 600 V AC |
| Rated Continuous Current (AC-3) | 40 A |
| Rated Thermal Current | 60 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Frequency | 50 / 60 Hz |
| 200 / 220 V AC | 7.5 kW |
| 440 V AC | 15 kW |
| 1 Phase 240 V AC | 5 HP |
| 3 Phase 200 / 240 V AC | 10 HP |
| 3 Phase 480 / 600 V AC | 30 HP |
| Rated Impulse Voltage (Uimp) | 8 kV |
| Number of Poles | 3-Pole |
| Auxiliary Contacts | 1 NO + 1 NC |
| Protection Class | IP20 |
| Ambient Temperature | -40 / 60 °C |
| Dimensions (H x W x D) | 127 x 75 x 119 mm |
