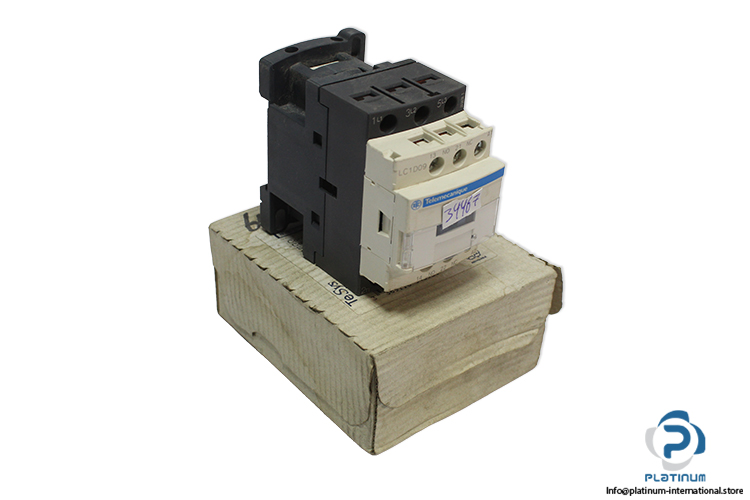

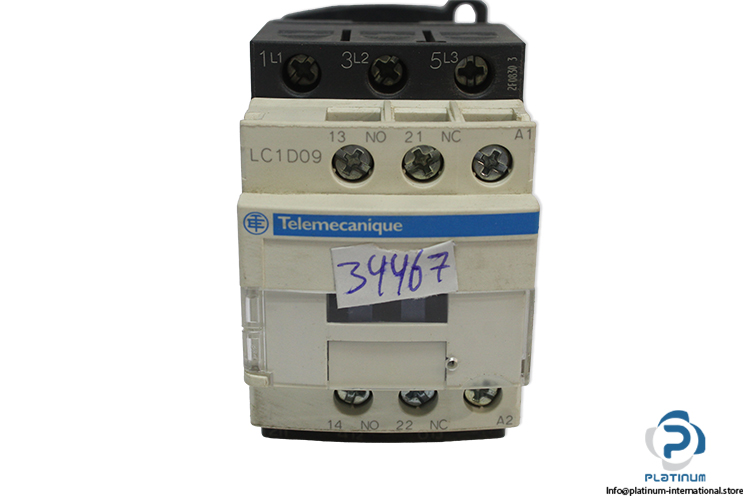

Telemecanique LC1D09P7 Contactor
New
In stock1 unitReady to ship
Contactor
Telemecanique LC1D09P7 3-pole industrial contactor from the TeSys Deca series with 230 V AC coil voltage, 9 A AC-3 current rating, and auxiliary contacts (1 NO + 1 NC).
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Telemecanique LC1D09P7 Contactor
The Telemecanique LC1D09P7 is a compact industrial contactor from the TeSys Deca range, designed for reliable motor control and switching applications in industrial automation systems.
Manufacturer: Telemecanique
Type: Contactor
Model: LC1D09P7
Part No.: 034890
Series: LC1D
Range: TeSys Deca
Power AC-3:

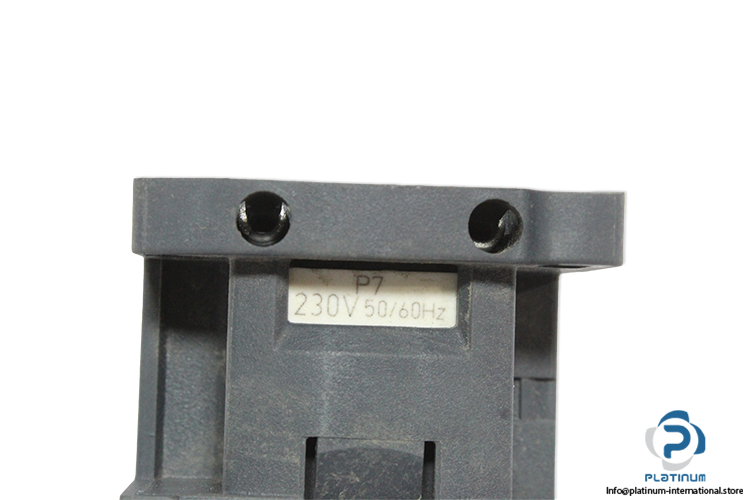

| Rated Coil Voltage | 230 V AC, 50 / 60 Hz |
| Rated Operational Voltage | 690 V AC / 300 V DC |
| Rated Operational Current AC-3 | 9 A |
| Rated Thermal Current | 25 A |
| Frequency | 50 / 60 Hz |
| 220 / 230 V AC | 2.2 kW |
| 380 / 400 / 415 / 440 V AC | 4 kW |
| 500 / 660 / 690 V AC | 5.5 kW |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Poles No. | 3-Pole |
| Auxiliary Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Rated Breaking Capacity | 250 A |
| Protection Class | IP20 |
| Ambient Temperature | -40 / 60 °C |
| Dimensions | 77 X 45 X 86 mm |
