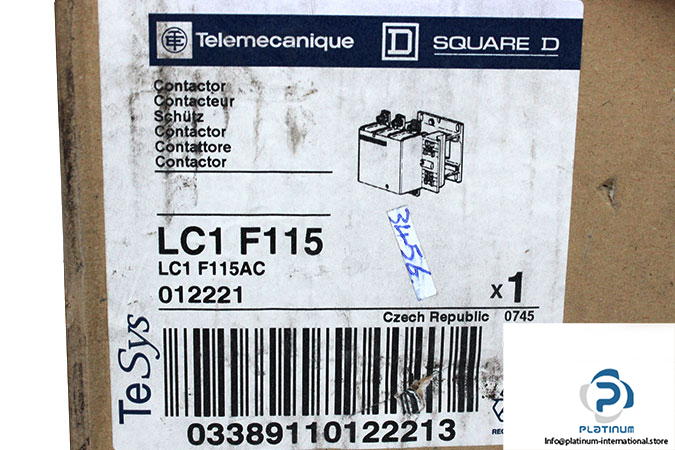

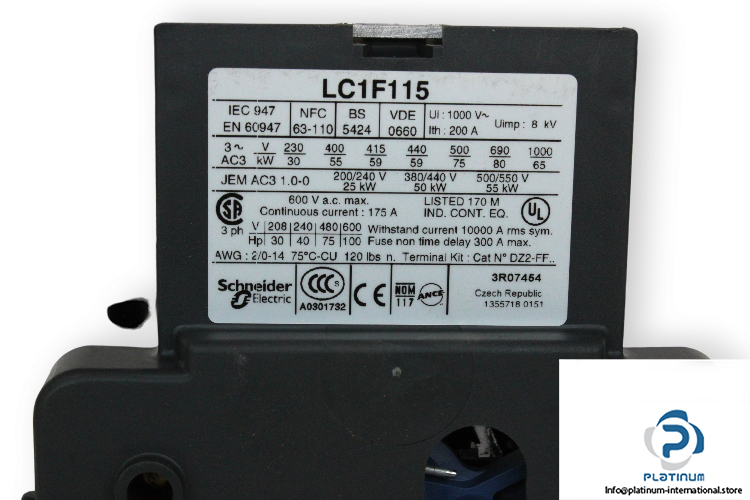

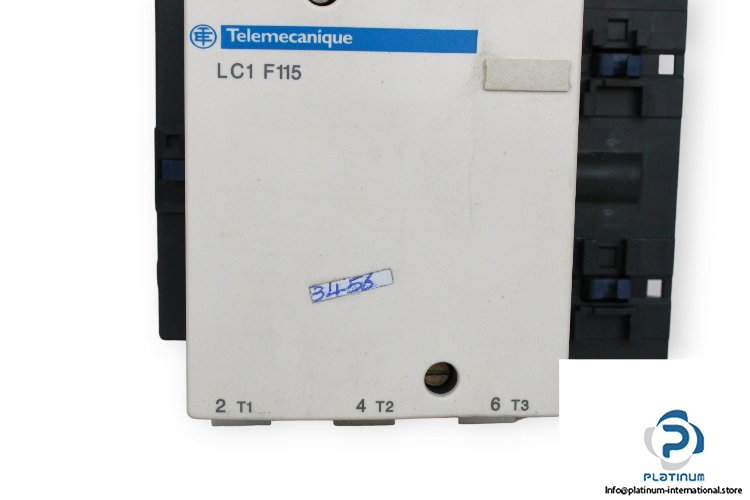

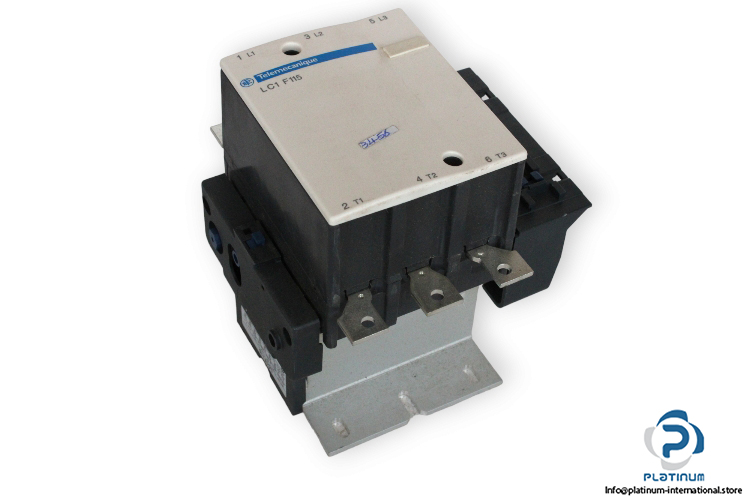

Telemecanique LC1F115 Magnetic Contactor

Manufacturer: Telemecanique
Type: Magnetic Contactor
Model: LC1F115

Rated operational voltage Ue: <= 690 V AC 50/60 Hz
Rated operational current Ie: 200 A@40°C, 115 A@55°C
Rated insulation voltage Ui: 1000 V AC
Thermal current Ith: 200 A
Continuous current: 175 A
Rated impulse withstand voltage Uimp: 8 kV
Rated power: @400 V (55 kW),@415 V (59 kW)
Contact: 3 Normally open contact
Degree of protection: IP2X
Ambient Air Temperature for Operation: -40 … 60°C
Dimensions: 162 x 163 x 171 mm
