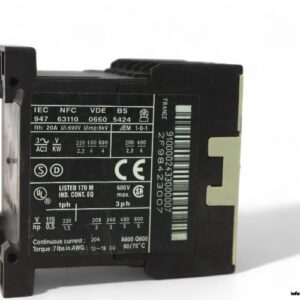

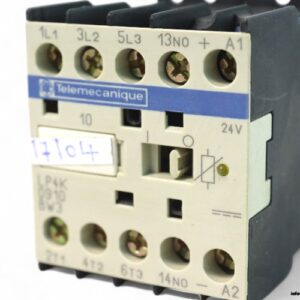

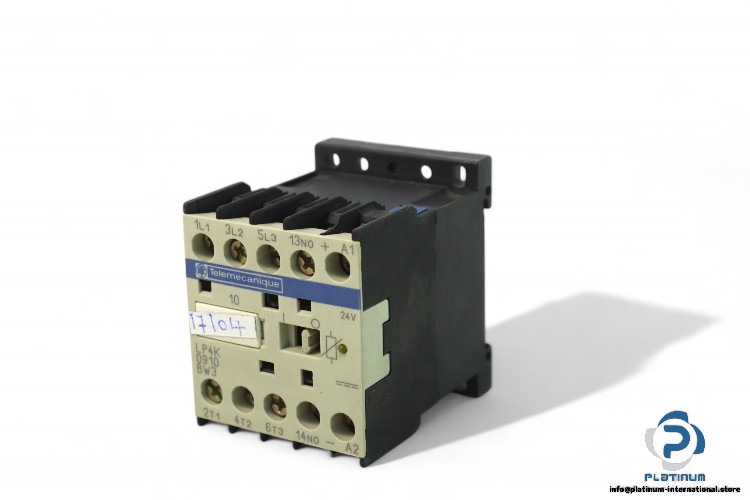

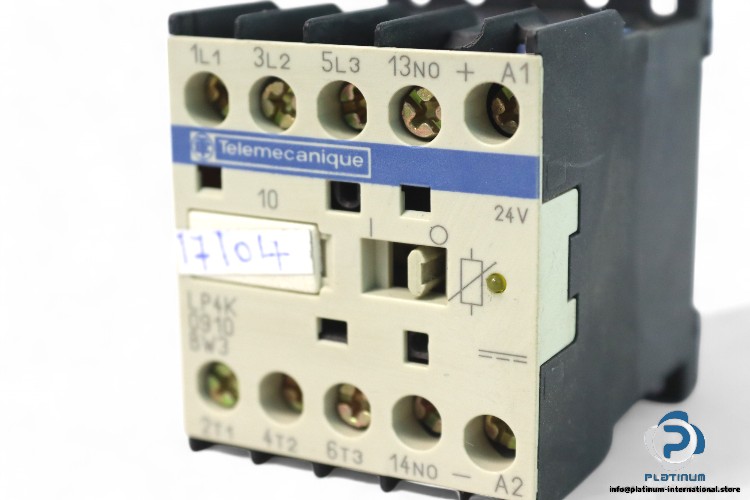

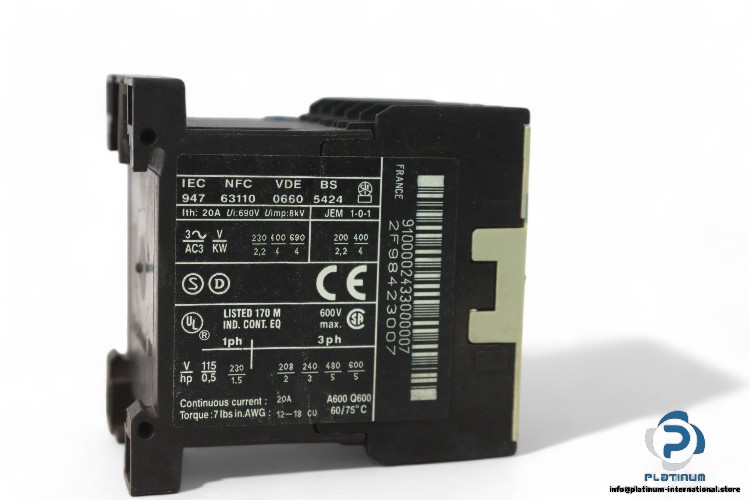

Telemecanique LP4K 0910 BW3 Contactor
TELEMECANIQUE LP4K0910BW3 Contactor is a 3-pole contactor with 9 A nominal current and 690 V AC operating voltage. It supports power ratings up to 4 kW, with a control circuit voltage of 24V DC and an operating temperature range of -25 to 50°C.
TELEMECANIQUE Contactor LP4K0910BW3
The TELEMECANIQUE Contactor LP4K0910BW3 from the TeSys range is a 3-pole contactor designed for reliable switching of electrical circuits in industrial environments. With a nominal operating current of 9 A, it is suitable for both power and signaling circuits with a maximum operating voltage of 690 V AC. This contactor supports a range of power applications, providing up to 4 kW of power at 380…415 V AC, making it versatile for various industrial applications.
Technical Specifications:
- Model: LP4K0910BW3
- Range: TeSys
- Type of Contactor: 3-pole
- Nominal Operating Voltage (Ue):
- Power circuit, state 1: ‰¤ 690 V AC ‰¤ 400 Hz
- Signaling circuit, state 1: ‰¤ 690 V AC ‰¤ 400 Hz
- Nominal Operating Current (Ie):
- 9 A (at <60 °C) at ‰¤ 440 V AC AC-3 for power circuit
- 9 A (at <60 °C) at ‰¤ 440 V AC AC-4 for power circuit
- Power Rating:
- 2.2 kW at 220…230 V AC 50/60 Hz AC-3
- 4 kW at 380…415 V AC 50/60 Hz AC-3
- Control Circuit Voltage (Uc): 24V DC
- Contacts Configuration: 3 NO
- Auxiliary Contact Options: 1 NA
- Operating Temperature: -25 / 50°C
- Dimensions: 58 x 45 x 57 mm
- Category: Contactors
The TELEMECANIQUE LP4K0910BW3 contactor is built for durability and efficiency in demanding industrial conditions. Its compact design and high power handling capabilities make it an ideal solution for controlling electrical circuits in a variety of applications. Available now through Platinum International.
