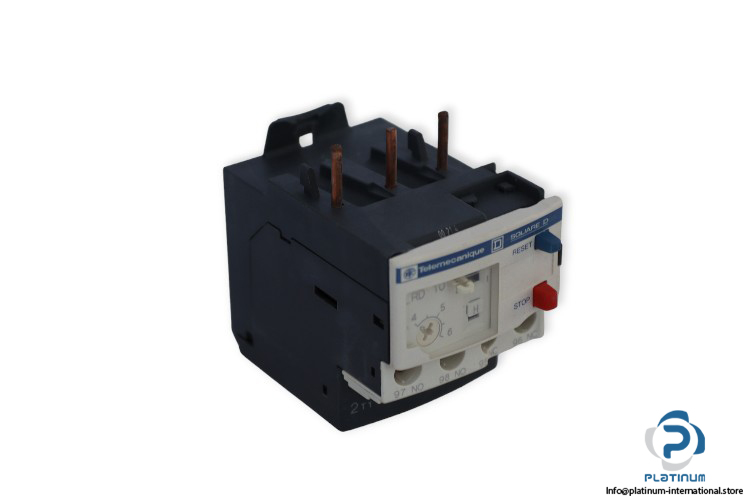

Telemecanique LRD10 Thermal Overload Relay
Industrial-grade thermal overload relay for motor protection. Rated for 4-6 A, 690 V AC, with IP20 protection and a push-button reset system.
Telemecanique LRD10 Thermal Overload Relay
The Telemecanique LRD10 is a high-performance thermal overload relay designed for reliable motor protection in industrial applications. With a wide setting range of 4 to 6 A and compliance with multiple international standards, it ensures safe and efficient operation.
Key Details:
Manufacturer: Telemecanique
Type: Thermal Overload Relay
Model: LRD10

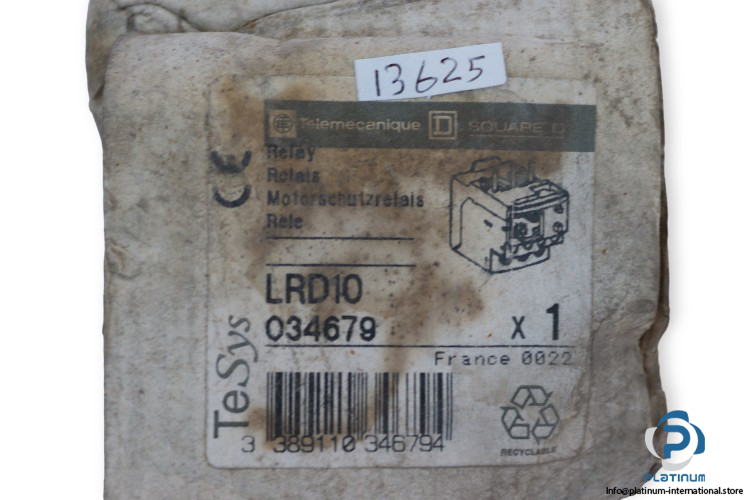

Part No.: 034679
Short Name: LRD
Ideal for industrial applications, the Telemecanique LRD10 provides reliable thermal overload protection, safeguarding motors from excessive current and overheating.
| Relay Application | Motor Protection |
| Rated Operational Voltage (Ue) | 690 V AC |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Conventional Free Air Thermal Current (Ith) | 5 A |
| Setting Range | 4 to 6 A |
| Network Frequency | 0 to 400 Hz |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Number of Poles | 3 |

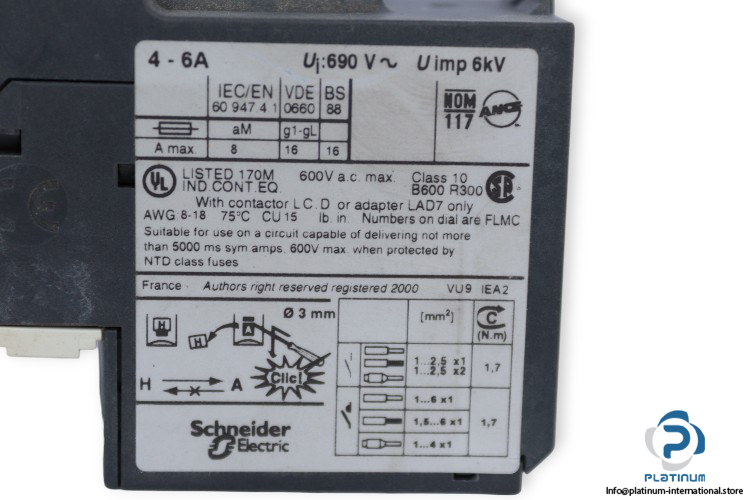

| Standard Compliance | IEC/EN 60 947.4.1, VDE 0660, BS 88 |
| Auxiliary Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Protection Class | IP20 |

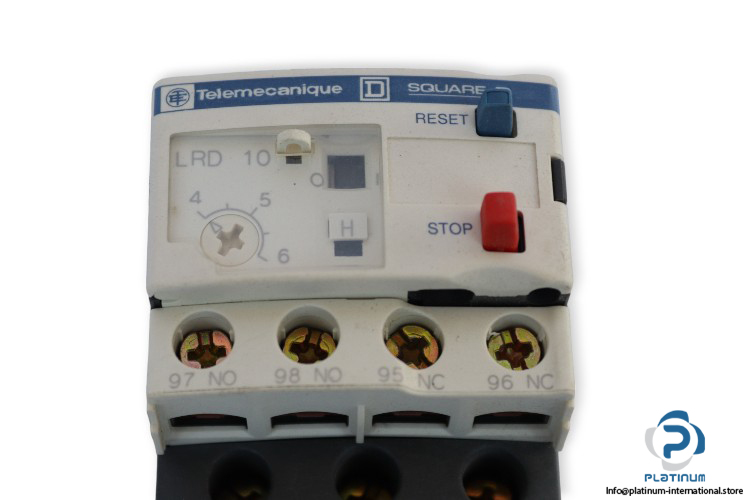

| Control Type | Red Push-button Stop, Blue Push-button Reset |
| Ambient Temperature | -20 to 60 °C |
| Dimensions | 66 x 45 x 70 mm |
