Telemecanique/ Square D GV2 G245 Comb Buss BAR
Used
In stock1 unitReady to ship
17,77$
Telemecanique/Square D Comb Buss Bar GV2G245 with rated insulation voltage of 690 V, 63 A thermal current, and IP20 protection. Suitable for general use at 600 V with 3 poles and 2 tap-offs.
23456369089abarBussCombconnectionDDistributionElectricalGeneralIP20LengthLinergymmPitchPolesProtectionSquareTap-offsTelemecaniqueUseV
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

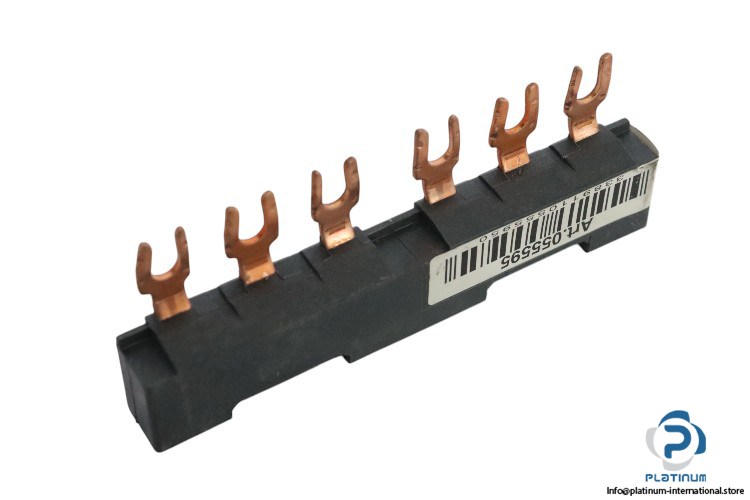

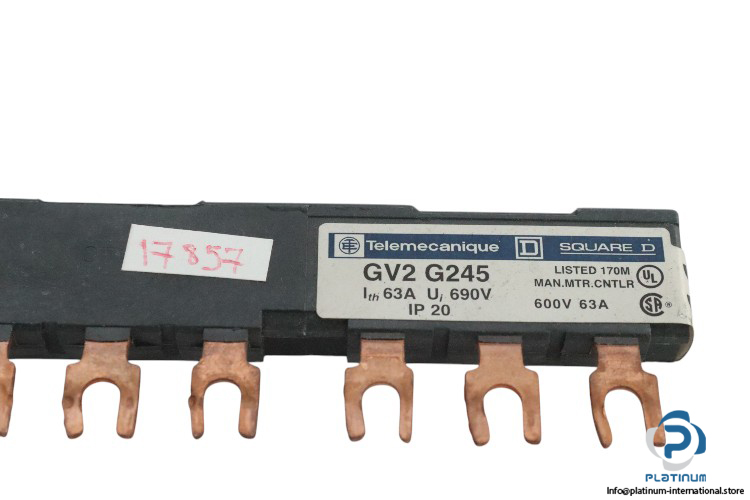

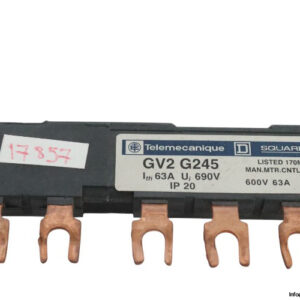

Telemecanique/Square D Comb Buss Bar GV2G245
Telemecanique/Square D Comb Buss Bar GV2G245 is a reliable and high-performance product designed for electrical distribution in industrial settings. This comb buss bar is part of the Linergy range, providing high insulation voltage and thermal current capabilities. Below are the key technical specifications:
- Manufacturer: Telemecanique/Square D
- Type: Comb Buss Bar
- Model: GV2G245

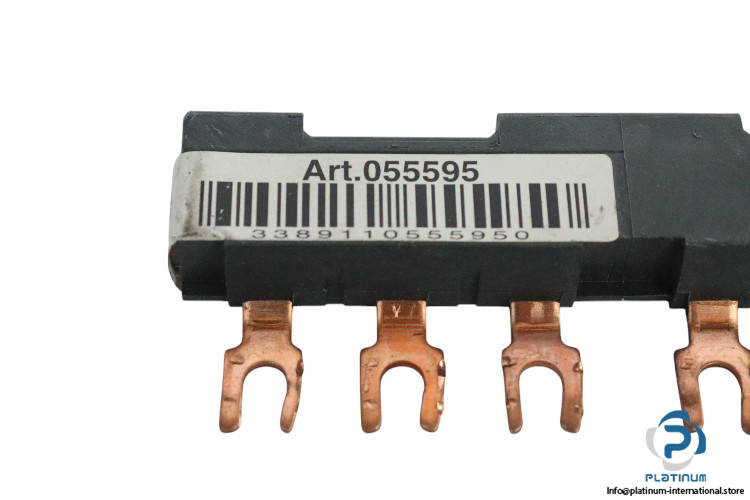

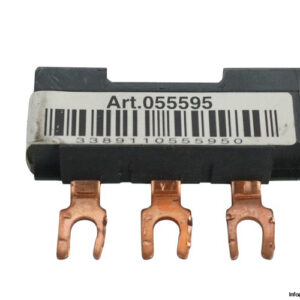

- Art. No.: 055595
- Product Name: FT
- Device Short Name: GV2G
- Range: Linergy
Technical Data:
- Rated Insulation Voltage (Ui): 690 V
- Conventional Free Air Thermal Current (Ith): 63 A
- Protection Degree: IP20
- General Use: 600 V, 63 A
- Number of Poles: 3
- Number of Tap-offs: 2
- Connection Pitch: 45 mm
- Length: 89 mm
