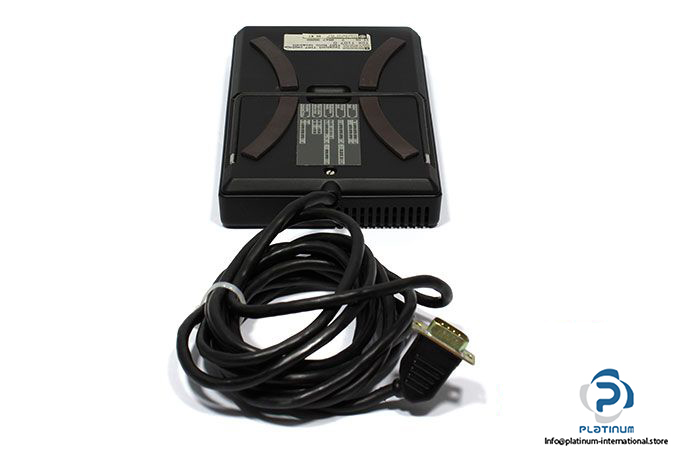

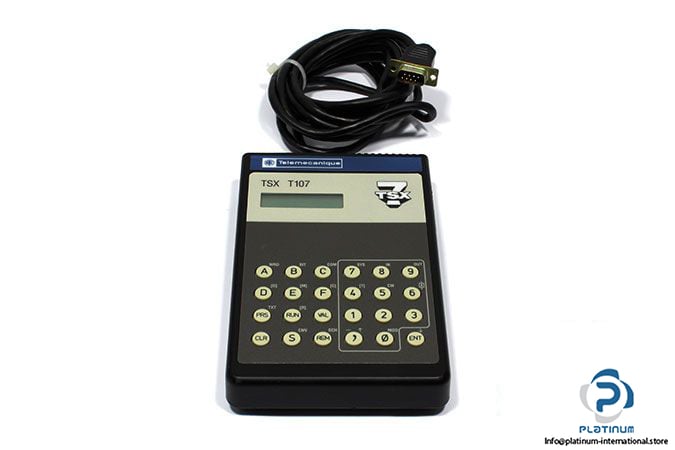

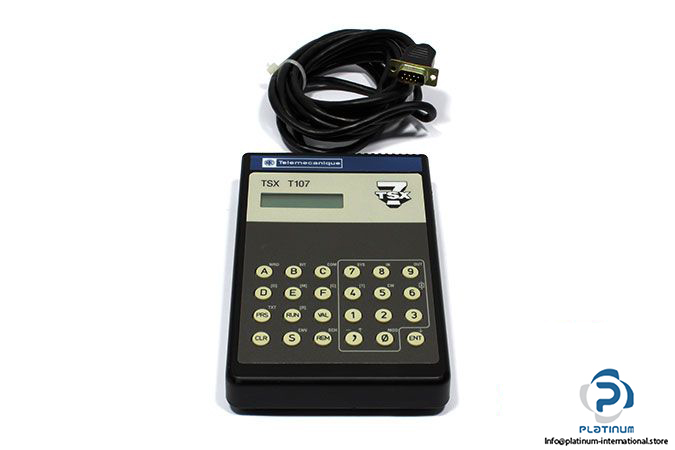

Telemecanique TSX T107 Terminal

Manufacturer: Telemecanique

Type: Terminal

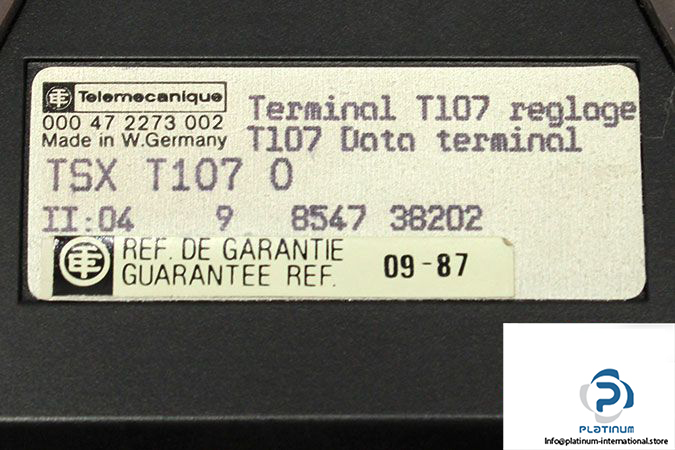

Model: TSX T107

The TSX T107 terminal is the ideal tool for the adjuster. In SETUP mode the terminal is used to view or modify all the objects of the TSX 27-20 and TSX 47 PLCs (bits, words, timers, counters, etc.) on the site with the PLC online, but without accessing the program.

In TEXT mode it is used as a dialog terminal operator for exchanging messages with the PLC.

Adjustment Mode is automatically selected as soon as the terminal is connected (after self-test). This mode allows the user to view and adjust all the variables needed to adjust his automation. The PLC is online, but the operator does not have access to the program.

The Adjustment Mode allows the operator to: view, modify or force: Inputs, Outputs, bits internal, some system bits;

– display and modification of internal words, common words and function block parameters; visualization of constant words and Grafcet steps.

Weight: 0.75 kg
