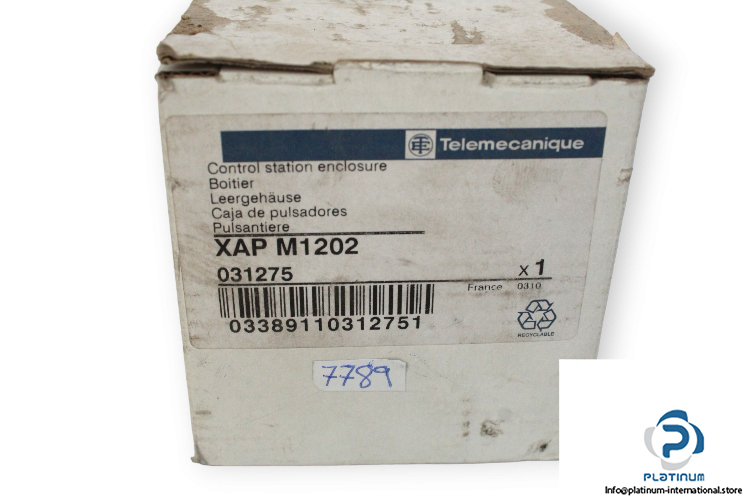

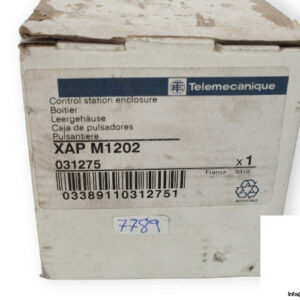

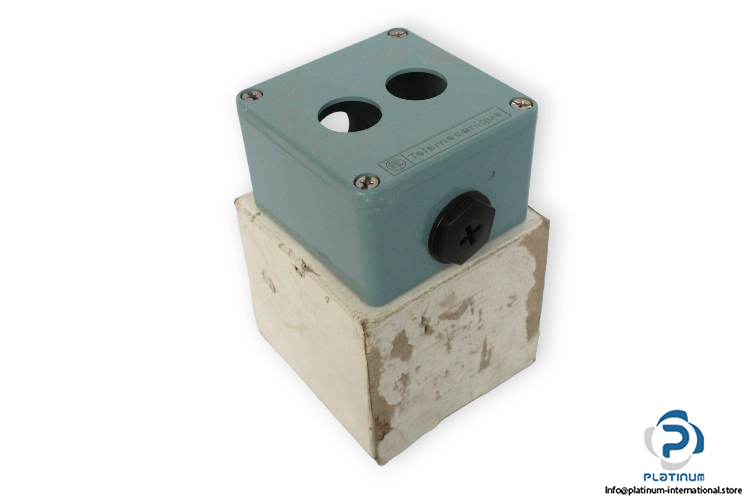

Telemecanique XAP M1202 Control Station Enclosure

Manufacture: Telemecanique
Type: Control station enclosure
Model: XAPM1202
Part No.: 031275
Range of Product: Harmony XAP
Device Short Name: XAPM

Product Destination: For Ø 22 mm control and signaling units
Product Front Plate Size: 80 x 80 mm
Usable Depth: 49 mm
Number Of Cut-Out: 2 cut-out
Color Of Base Of Enclosure: Blue
Color Of Cover: Blue
Material: Zinc alloy
Cable Entry: 1 hole with blanking plug for cable gland, clamping capacity: 14 mm, 1 hole without blanking plug for cable gland, clamping capacity: 14 mm
Device Mounting: Flush
Degree Of Protection: IP65 conforming to IEC 60529, IP69 conforming to NF C 20-010, IP69K
Ambient Air Temperature For Operation: -40 … 70 °C
