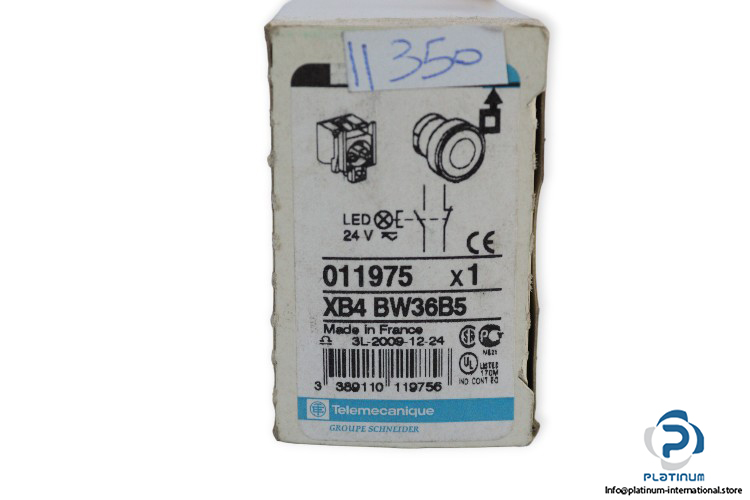

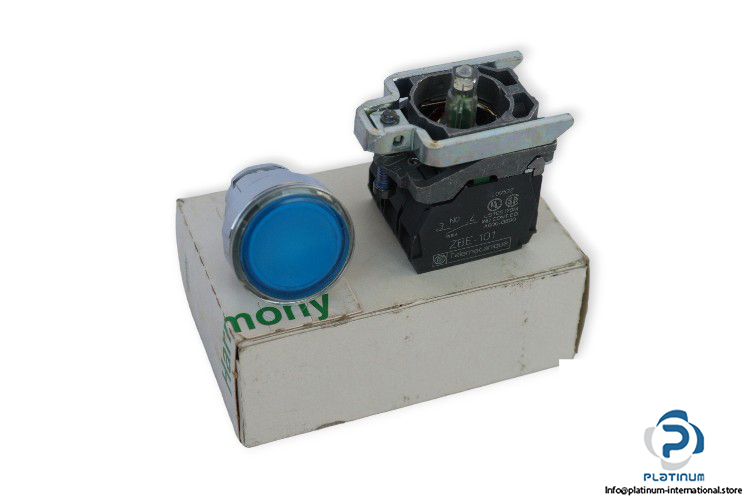

Telemecanique XB4 BW36B5 Illuminated Push Button

Manufacturer: TELEMECANIQUE
Type: Illuminated Push Button
Model: XB4BW36B5

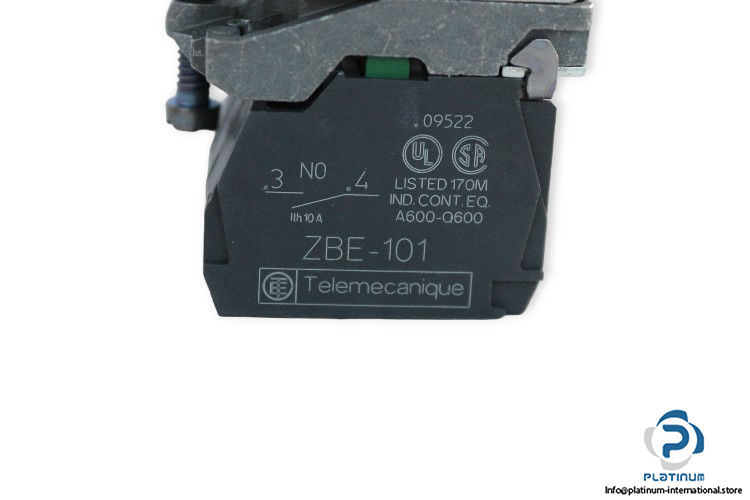

Alternative Model: ZBE101
Part No.: 011975

Range of Product: Harmony XB4
Short Name: XB4
Light Source: Universal LED
Bulb Base: Integral LED
Rated Supply Voltage: 24 V AC/DC
Rated Insulation Voltage: 600 V AC
Rated Thermal Current: 10 A
Rated Impulse Voltage (Uimp): 6 kV
Contact: 2-Pole, 1 Normally Open (NO) + 1 Normally Closed (NC)
Operator Type: Spring Return
Bezel Material: Chromium Plated Metal
Collar Material: Zamak
Protection Class: IP66
Ambient Temperature: -40 … 70 °C
Diameter: 22 mm
Dimensions: 47 x 30 x 101 mm
