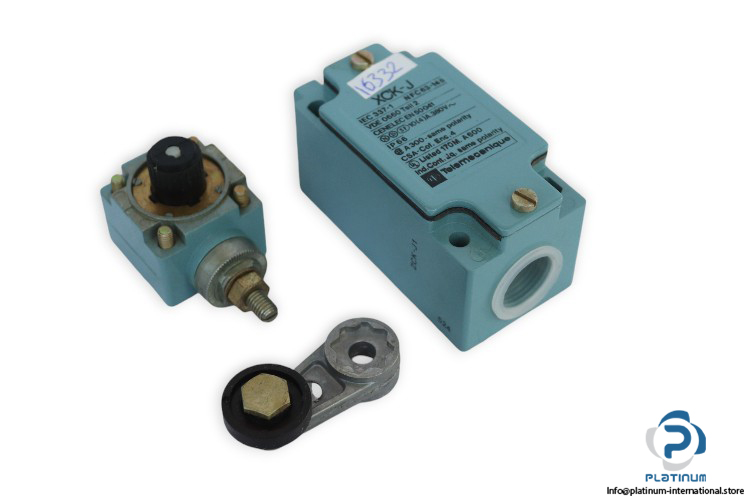

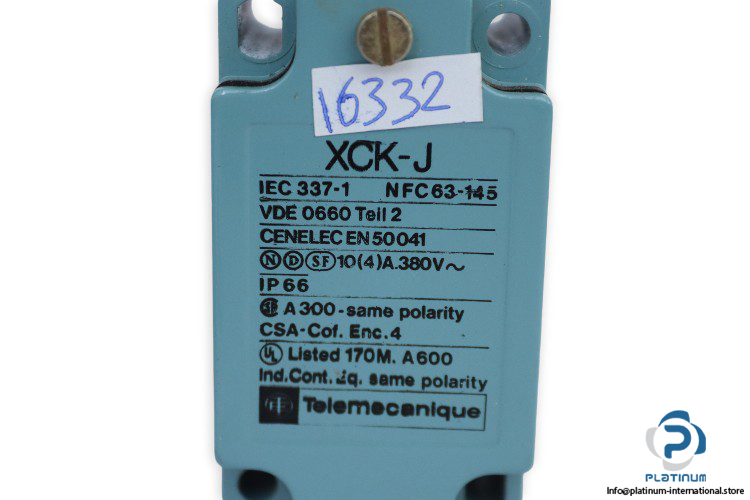

Telemecanique XCK-J10511 Limit Switch

Manufacturer: TELEMECANIQUE
Type: Limit Switch

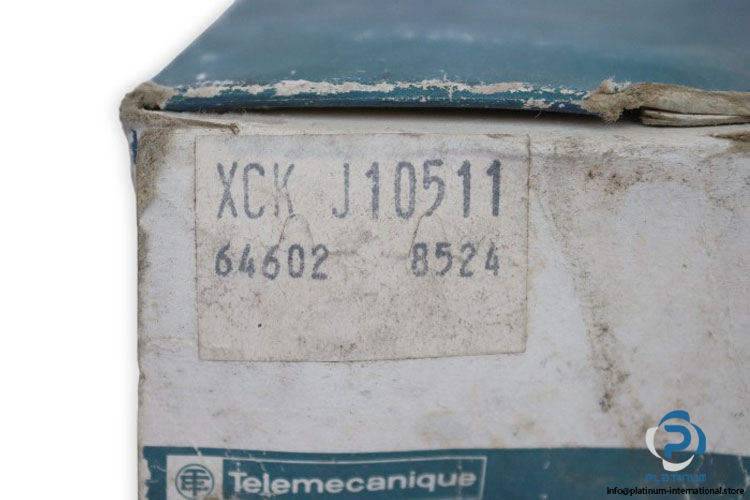

Model: XCKJ10511
Part No.: 646028524

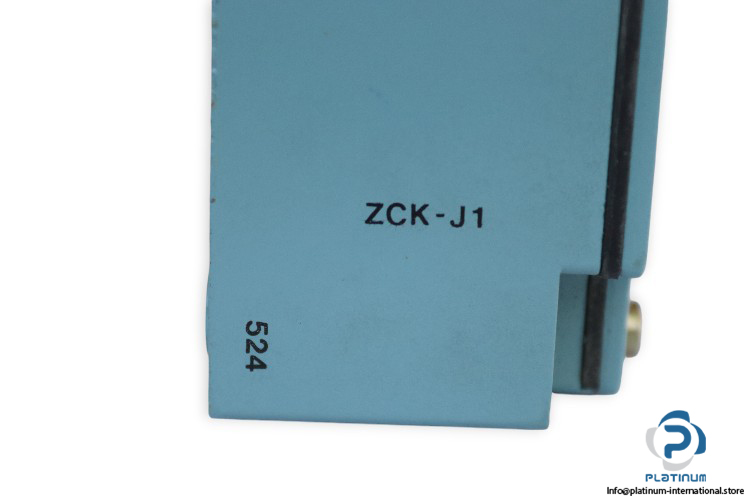

Body Model: ZCKJ1

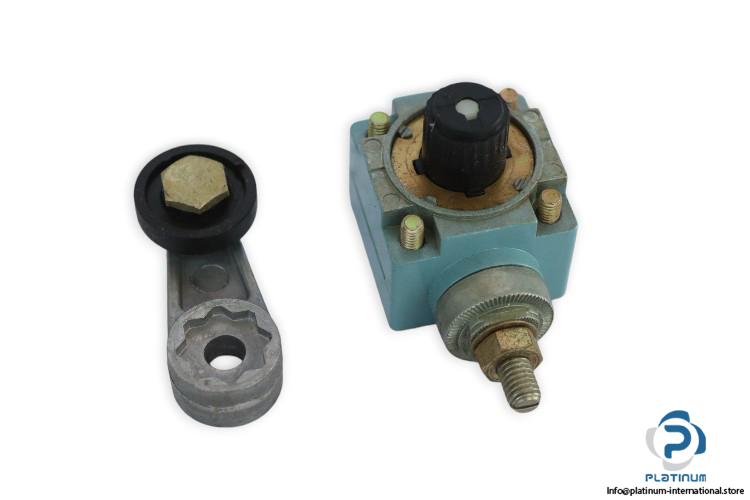

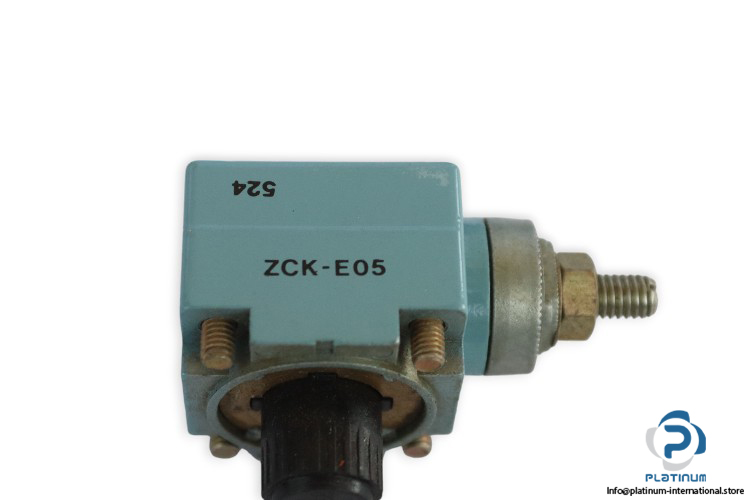

Head Model: ZCKE05

Short Name: XCKJ
Rated Operational Voltage: 380 V AC
Rated Operational Current: 10 (4) A
Rated Impulse Voltage (Uimp): 6 kV
Contact: 1 Normally Open (NO) + 1 Normally Closed (NC)
Head Type: Rotary Head
Type of Operator: Spring Return Roller Lever Thermoplastic
Movement of Operating Head: Rotary
Switch Actuation: By 30° Cam
Head Material: Metal
Protection Class: IP66
Temperature: -25 … 70 °C
Dimensions: 133 x 40 x 57 mm</p
