Telemecanique XCK-L / ZCK-L7 Limit Switch

In stock1 unitReady to ship

The Telemecanique XCK-L / ZCK-L7 Limit Switch features 500V insulation voltage, IP66 protection, 3A rated current at 240V AC, and silver-plated contacts, providing reliable position control in industrial systems.

Manufacturer
TELEMECANIQUE
SKU
1064343
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

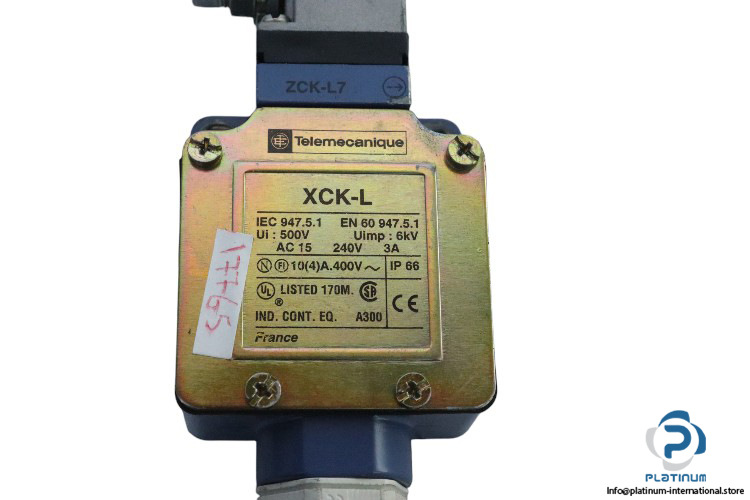

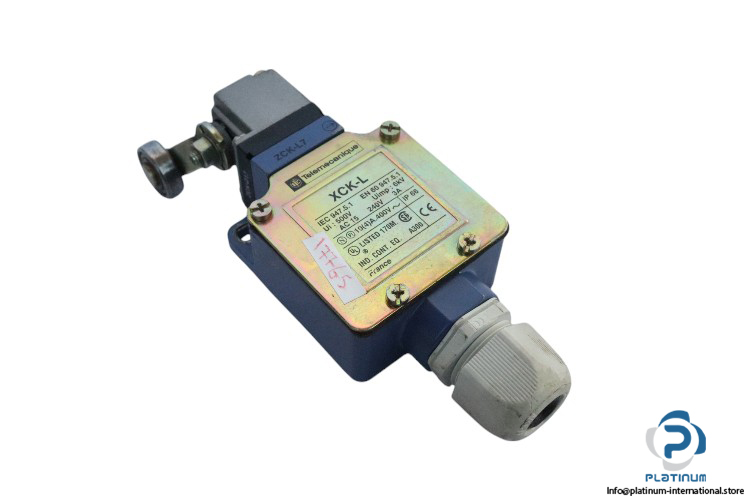

Telemecanique XCK-L / ZCK-L7 Limit Switch

The Telemecanique XCK-L / ZCK-L7 Limit Switch is a high-performance industrial switch designed for precise control and reliable position sensing in challenging environments. Built with a durable metal body and IP66 protection, this limit switch is perfect for controlling circuits in automation systems, ensuring safety and reliability in a variety of industrial applications.

  • Manufacturer: Telemecanique
  • Type: Limit Switch
  • Model: XCK-L / ZCK-L7
  • Part No.: ZCK-D17

Technical Specifications:

  • Series Name: Standard Format
  • Body Type: Fixed
  • Rated Insulation Voltage (Ui): 500 V
  • Maximum Resistance Across Terminals: 0.25 mOhm
  • Rated Impulse Withstand Voltage (Uimp): 4 kV
  • Short-Circuit Protection: 6 A
  • Electrical Connection: Screw-clamp terminals
  • Minimum Actuation Speed: 6 m/min
  • Rated Operational Current (Ie): 3 A at 240 V, AC-15; 0.27 A at 250 V, DC-13
  • Thermal Current: 10 A
  • Body Material: Metal
  • Cable Entry: 1 tapped entry for Pg 13.5 cable gland (included)
  • Number of Poles: 2
  • Contact: 2 NC
  • Contact Operation: Slow-break, simultaneous
  • Number of Steps: 1 position
  • Contacts Material: Silver plated contacts
  • Degree of Protection: IP66
  • Ambient Temperature: -25 to +70 °C
  • Dimensions (HxWxD): 72 x 52 x 30 mm

With IP66 protection and a highly durable design, the Telemecanique XCK-L / ZCK-L7 Limit Switch ensures reliable and consistent operation even in harsh conditions, making it an essential component for controlling position and movement in industrial systems.
