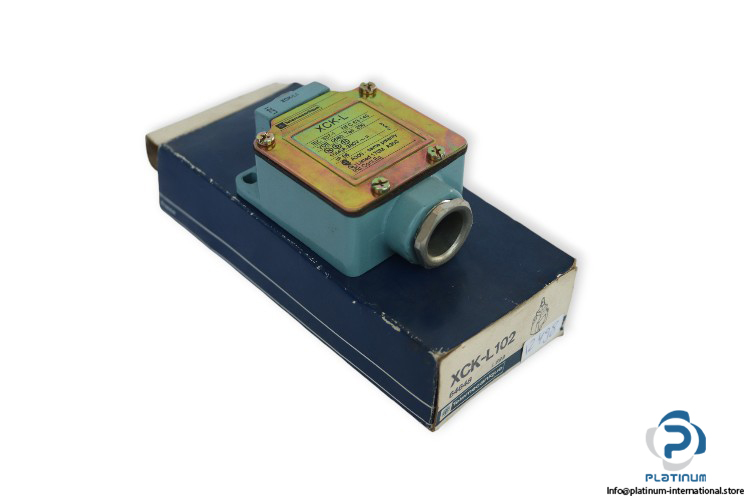

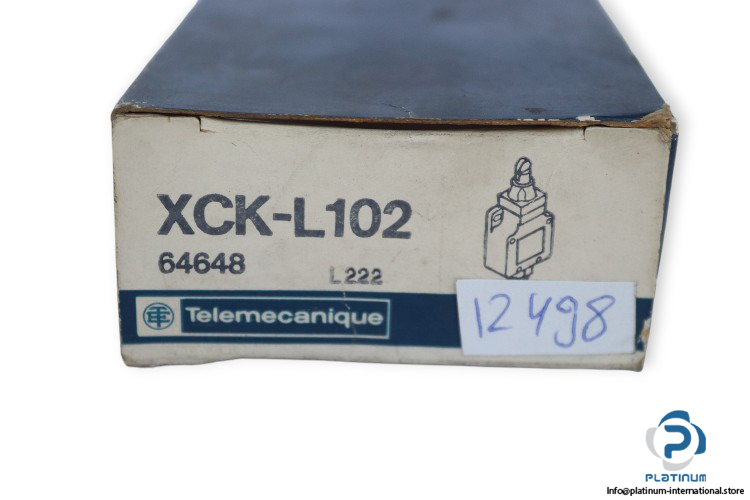

Telemecanique XCK-L102 Limit Switch Without Head

Manufacturer: Telemecanique
Type: Limit Switch Without Head
Model: XCKL102
Part No.: 64648 L222

Device short name: XCKL
Body type: Fixed
Rated impulse withstand voltage Uimp: 6 KV
Body material: Zamak
Fixing mode: By the body
Switch actuation: By 30° cam
Number of steps: 1
Electrical connection: Screw-clamp terminals,
Movement of operating head: Linear
Type of operator: Spring return roller plunger metal
Type of approach: Lateral approach, 2 directions
Cable entry: 1 metal cable gland entry, cable outer diameter: 6… 13.5 mm
Number of poles: 2
Contacts type and composition: 1 NC + 1 NO
Contact operation: Snap action
Contact rating: 10(4) A,380 V AC
Protection degree: IP66
Standard: IEC 337-1, VDE 0660
Ambient air temperature for operation: -25 … 70°C
Dimensions: 52 x 72 x 30 mm
Consist of:

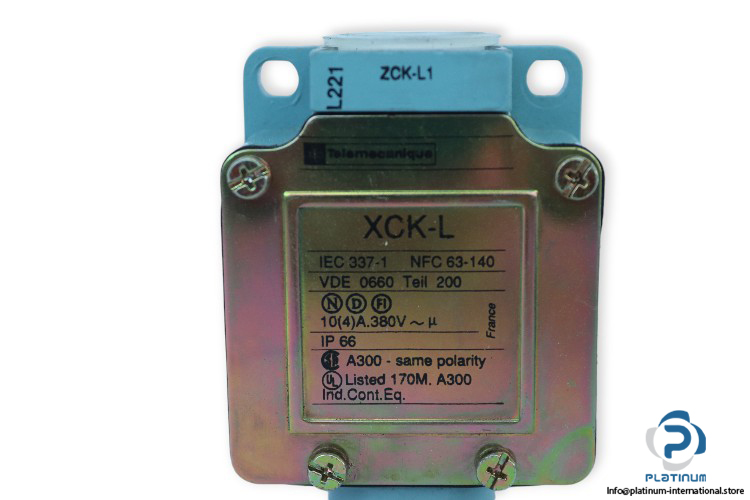

TELEMECANIQUE ZCK-L1 LIMIT SWITCH BODY
Manufacturer: Telemecanique
Type: Limit Switch Body
Model: ZCK-L1
