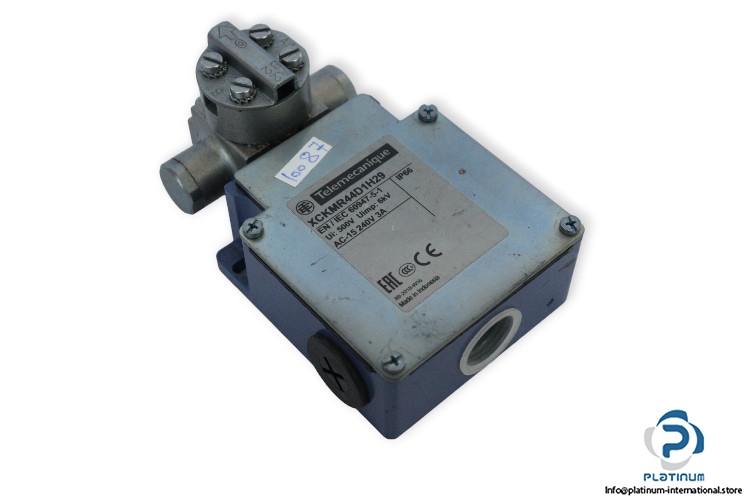

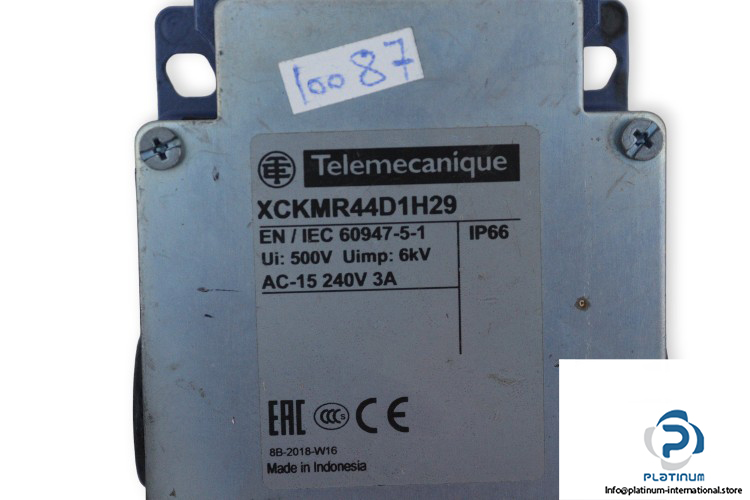

Telemecanique XCKMR44D1H29 Limit Switch

Manufacturer: TELEMECANIQUE
Type: Limit Switch
Model: XCKMR44D1H29

Used for: Hoisting and Mechanical Handling Applications
Short Name: XCKMR
Rated Voltage: 240 V AC
Rated Current: 3 A
Rated Thermal Current: 10 A
Rated Impulse Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): 500 V
Frequency: 50 … 60 Hz
Displacement Angle: -180 ° / 180 °
Contact: 1 Normally Open (NO) + Normally Closed (NC)
Head Type: Rotary Head
Housing Material: Metal
Protection Class: IP66
Temperature: -25 … 70 °C
Dimensions: 200 x 59 x 118 mm
