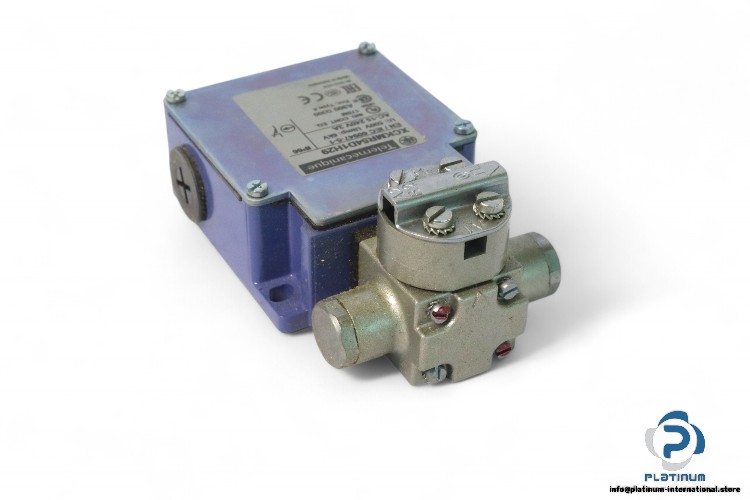

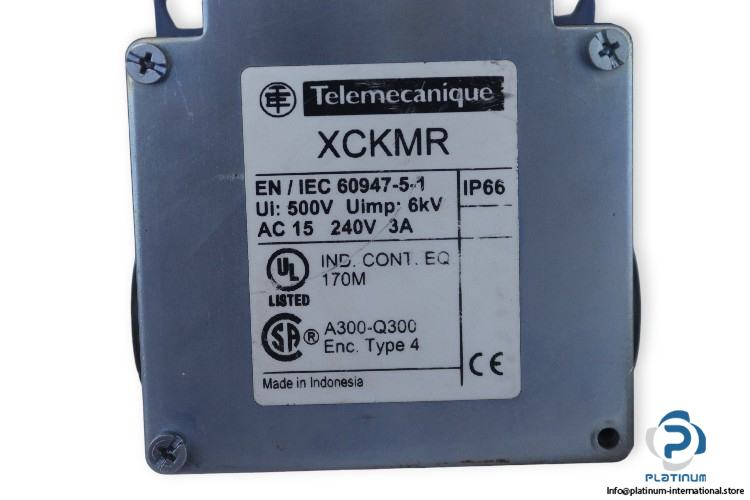

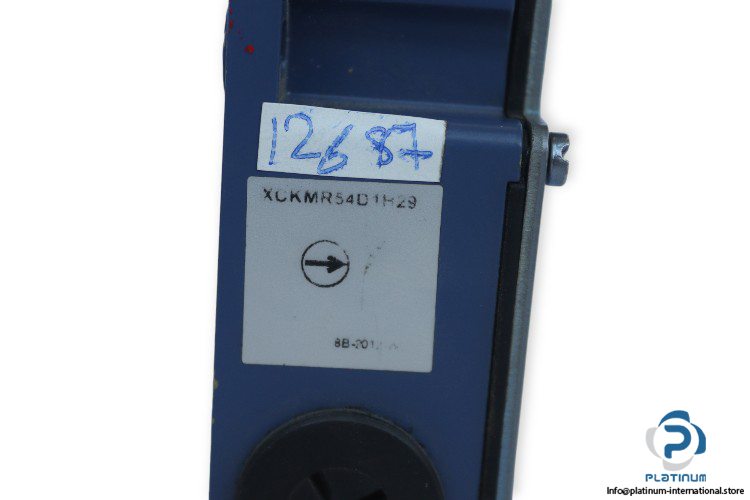

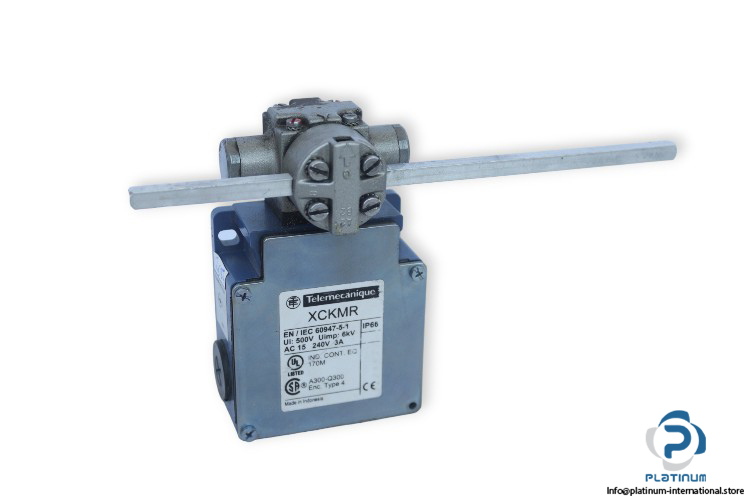

Telemecanique XCKMR54D1H29 Limit Switch

Manufacturer: TELEMECANIQUE
Type: Limit Switch
Model: XCKMR54D1H29

Short Name: XCKMR
Rated Operational Voltage AC-15: 240 V AC
Rated Operational Current AC-15: 3 A
Rated Impulse Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): 500 V
Contact: 4-Pole, 4 Normally Closed (NC)
Electrical Connection: Male Connector M12, 4 Pins
Lever Square Rod: 6 mm
Type of operator: Crossed Rods Lever Metal Square Rod
Square Rod Length: 200 mm
Operating Head Movement: Rotary Head
Material: Metal
Protection Class: IP66
Ambient Temperature: -40 … 70 °C
Dimensions: 118 x 200 x 59 mm
