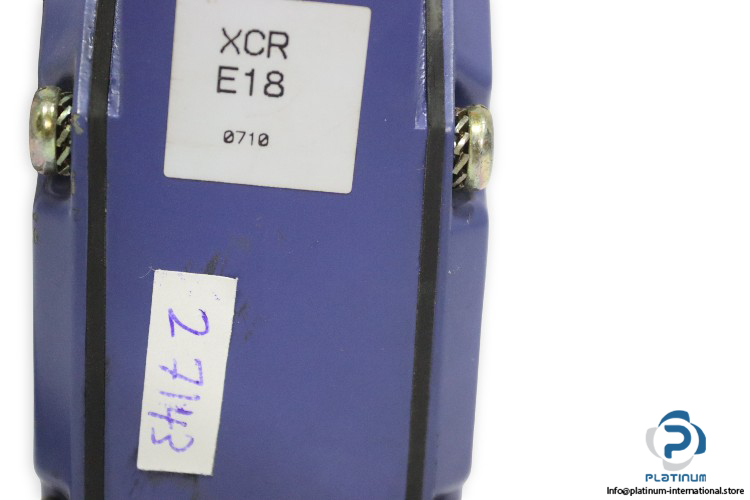

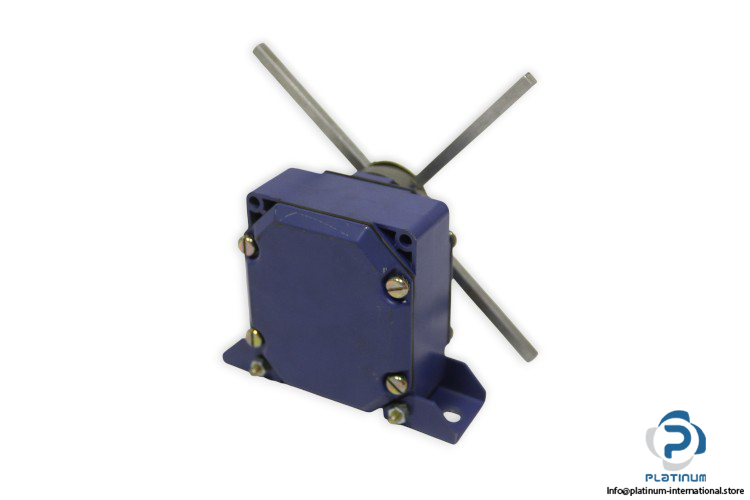

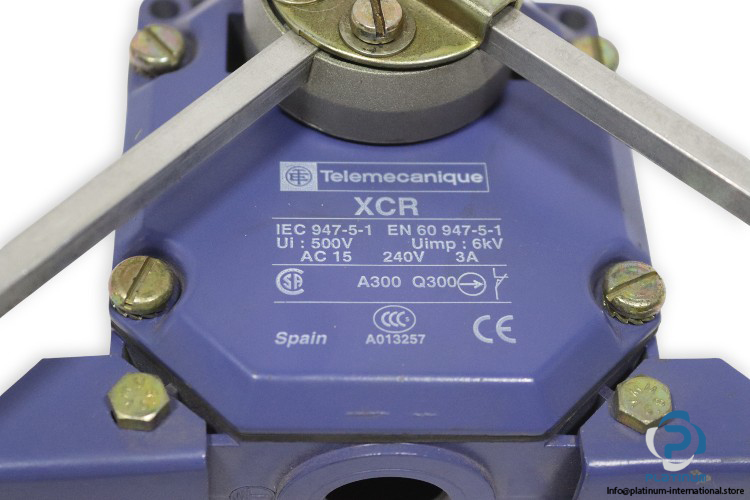

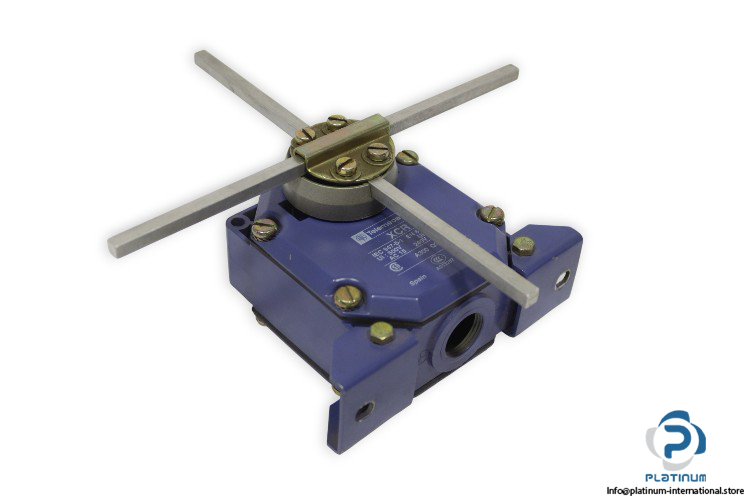

Telemecanique XCR E18 Crossed Rods Lever Limit Switch
New
Available on request
55,55$
Limit Switch TELEMECANIQUE XCR E18 industrial limit switch with 1 NO + 1 NC contacts, M12 connection, metal construction, and IP54 protection.
500VActionActuatorAlloyAutomationComponentContactE18IndustrialIP65LeverLimitRODSafetySnapSwitchTelemecaniqueXCRZinc
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 065218 |
| Range | OsiSense XC |
| Short Name | XCR |
| Rated Operational Voltage AC-15 | 240 V AC |
| Rated Operational Current AC-15 | 3 A |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 500 V |
| Contact | 2-Pole, 1 Normally (NO) + 1 Normally Closed (NC) |
| Electrical Connection | Male Connector M12, 4 Pins |
| Lever Square T Rod | 6 mm |
| Head Type | Stay-Put Crossed Rods Lever |
| Material | Metal |
| Protection Class | IP54 |
| Ambient Temperature | -25 … 70 °C |
| Dimensions | 85 x 85 x 75 mm |
| Condition | New |
| SKU | 1077684 |
| Weight | 0,98 |
