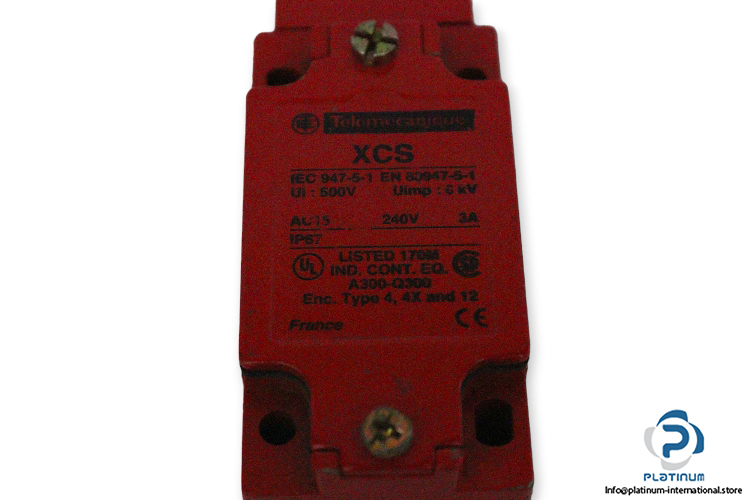

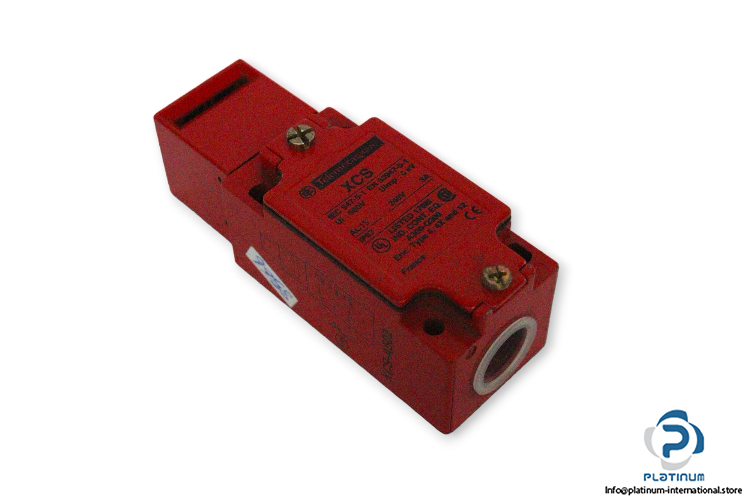

Telemecanique XCS-A502 Safety Switch

Manufacture: Telemecanique
Type: Safety switch
Product compatibility: XCSA
Model: XCS-A502

Conventional enclosed thermal current Ith: 10 A
Rated impulse withstand voltage Uimp: 6 Kv
Rated insulation voltage Ui: 500 V
Switching capacity: AC15, 240 V AC,3A
Material: Metal
Head type: Key operated turret head

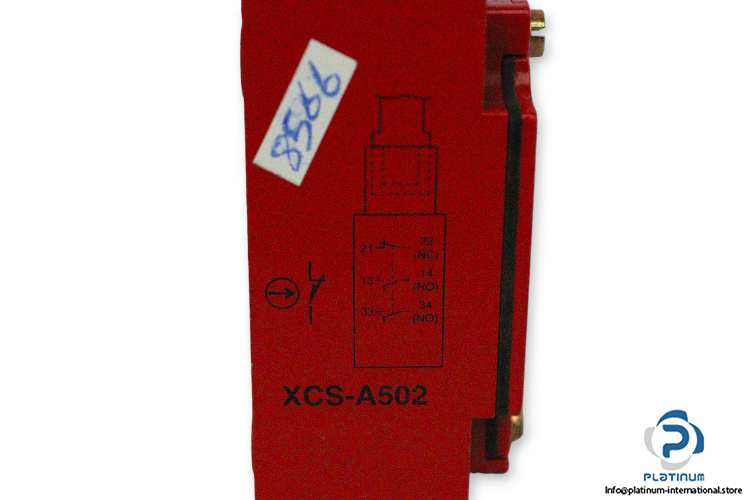

Contacts type and composition: 1 NC + 2 NO
Contact operation: Slow-break, break before make
Cable entry: 1 entry tapped M20 x 1.5
Cable outer diameter: 0.28…0.51 in (7…13 mm)
Electrical connection: Terminal 1 x 0.5…2 x 1.5 mm² with or without cable end
Number of poles: 3
Ambient air temperature for operation: -20 … 70°C
Degree of protection: IP67
Dimensions: 44 x 114 x 40 mm
