Telemecanique XCS-C702 Safety Switch
Telemecanique XCSC702 Safety Switch High-performance industrial safety switch with a key-operated turret head, 2NC/1NO contacts, and IP67 protection. Designed for reliable machine safety in industrial applications.
Telemecanique XCSC702 Safety Switch

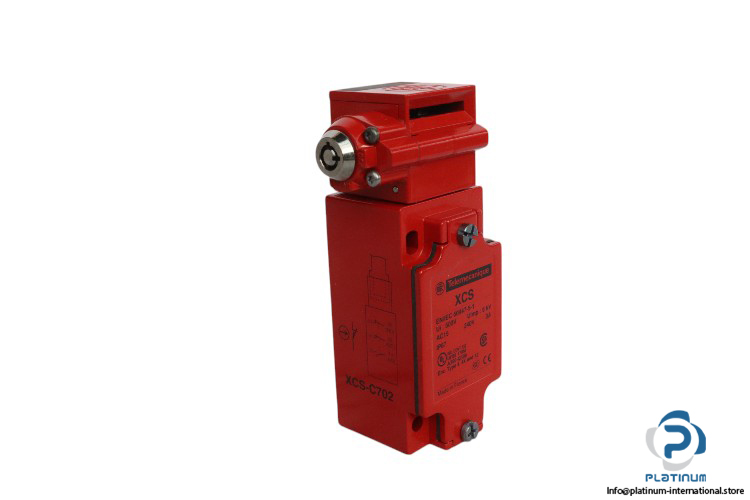

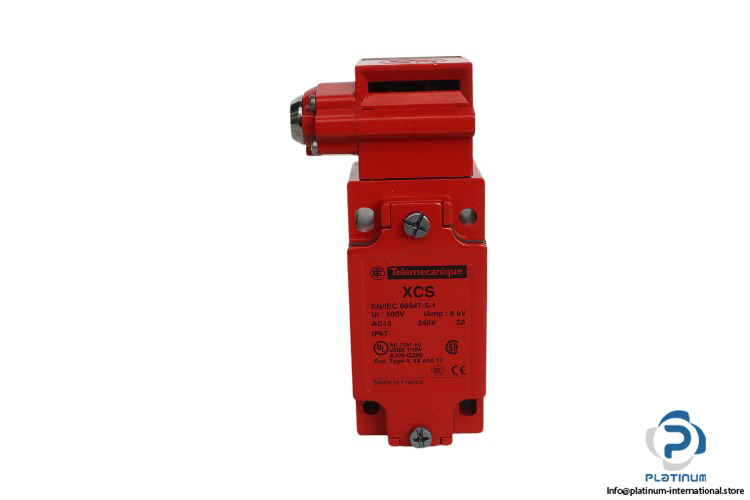

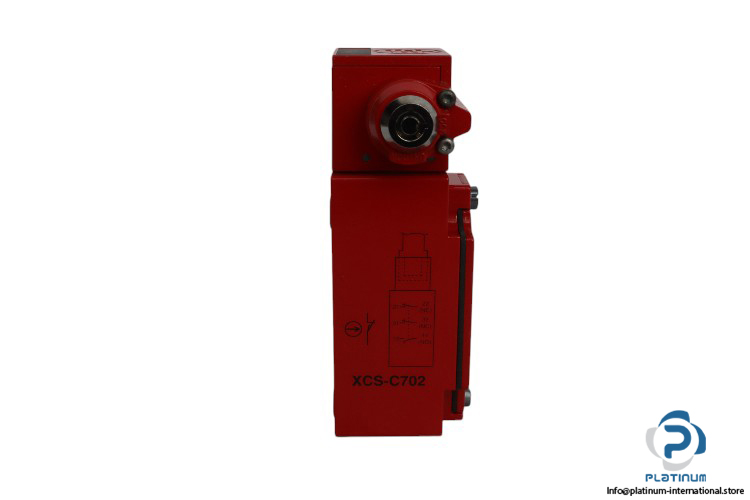

The Telemecanique XCSC702 is a high-performance industrial safety switch designed for secure and reliable machine safety applications. With a rugged metal housing and a key-operated turret head, it ensures durability and precise operation in demanding industrial environments.
Key Product Details:
Manufacturer: Telemecanique
Type: Safety Switch
Model: XCSC702
Part No.: 071911
Component Name: XCSC
Designed for industrial applications, the Telemecanique XCSC702 provides a robust and high-security safety switch with a reliable key-operated mechanism to prevent unauthorized access or machine activation.
| Design | Industrial |
| Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Thermal Current (Ith) | 10 A |
| Rated Operational Current (Ie) | 3 A @ 240 V |
| Material | Metal |
| Head Type | Key-operated turret head |
| Contacts Type & Composition | 2 NC, 1 NO |
| Contact Operation | Slow-break, break before make |
| Cable Entry | 1 entry tapped for M20 x 1.5 |
| Cable Outer Diameter | 7 to 13 mm |
| Electrical Connection | Terminal, clamping capacity: 1 x 0.5 to 2 x 1.5 mm² with or without cable end |
| Number of Poles | 3 |
| Protection Degree | IP67 |
| Ambient Air Temperature for Operation | -25 to 70 °C |
| Dimensions | 44 x 114 x 52 mm |
