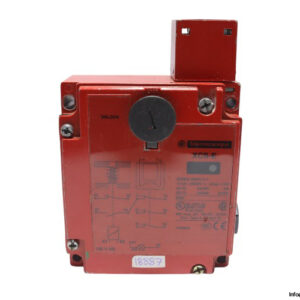

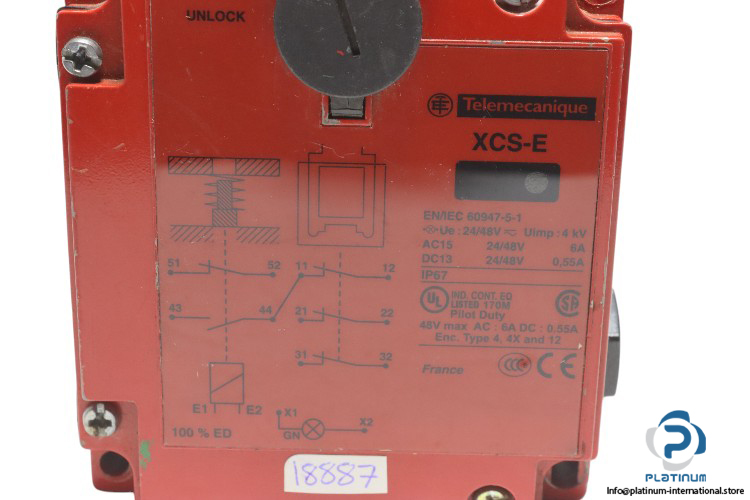

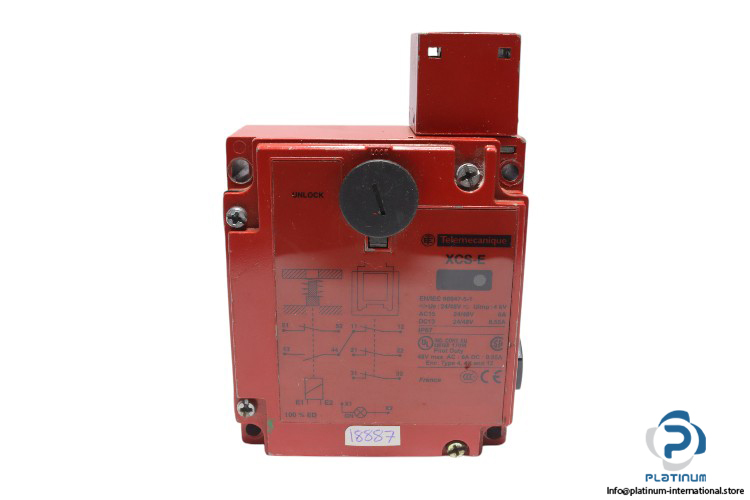

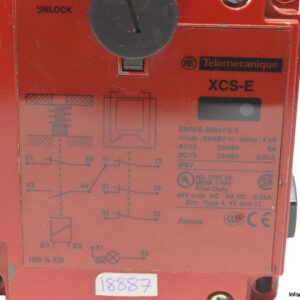

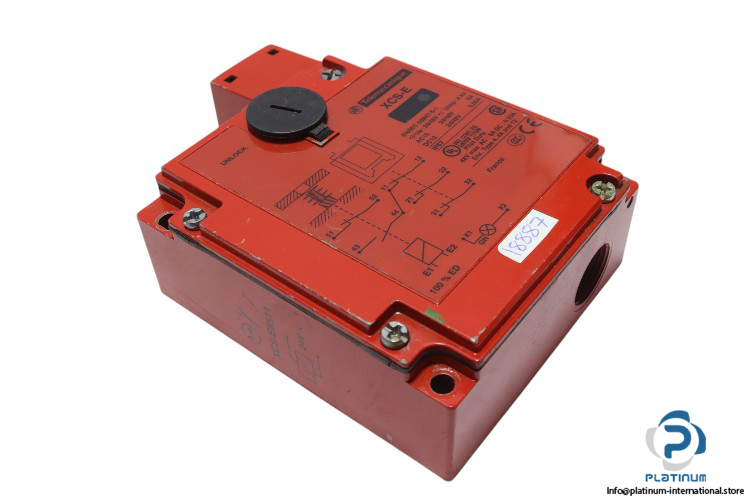

Telemecanique XCS-E8511 / XCS-E Safety Switch
Safety Switch
The Telemecanique XCSE8511 / XCS-E Safety Switch offers 24/48 V AC/DC rated voltage, 4 kV impulse withstand voltage, and 6 A operational current, ideal for industrial safety applications.Telemecanique XCSE8511 / XCS-E Safety Switch
The **Telemecanique XCSE8511 / XCS-E Safety Switch** is designed for industrial safety applications, offering **24/48 V AC/DC rated voltage** and a **high rated impulse withstand voltage** of **4 kV**. This switch features **3 NC contacts** with **slow-break simultaneous operation**, along with **1 NC + 1 NO solenoid contacts**. It has a **rated operational current** of **6 A at 24/48 V**, and is built to meet **EN/IEC 60947-5-1** standards, providing reliable protection in high-demand environments.
Manufacturer: Telemecanique
Type: Safety Switch
Model: XCSE8511 / XCS-E
The **Telemecanique XCSE8511 / XCS-E Safety Switch** ensures safe operation in industrial systems, offering reliable contact operation and protection against environmental factors, making it ideal for safety-critical applications.
| Rated Voltage | 24/48 V AC/DC |
| Supply Frequency | 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Conventional Enclosed Thermal Current (Ith) | 6 A |
| Signaling Circuit Consumption | 7 mA |
| Design | Rectangular |
| Head Type | Key Operated Turret Head |
| Contacts Type and Composition | 3 NC |
| Contact Operation | Slow-Break, Simultaneous |
| Solenoid Contacts Type and Composition | 1 NC + 1 NO (Slow-Break, Simultaneous) |
| Rated Operational Current | 6 A at 24/48 V AC15-0.55 A at 24/48 V DC13 |
| Cable Entry | 2 Entries Tapped for Pg 13.5 |
| Number of Poles | 3 |
| Body Material | Zamak |
| Head Material | Zamak |
| Standard | EN/IEC 60947-5-1 |
| Degree of Protection | IP67 |
| Dimensions | 44 x 146 x 98 mm |
