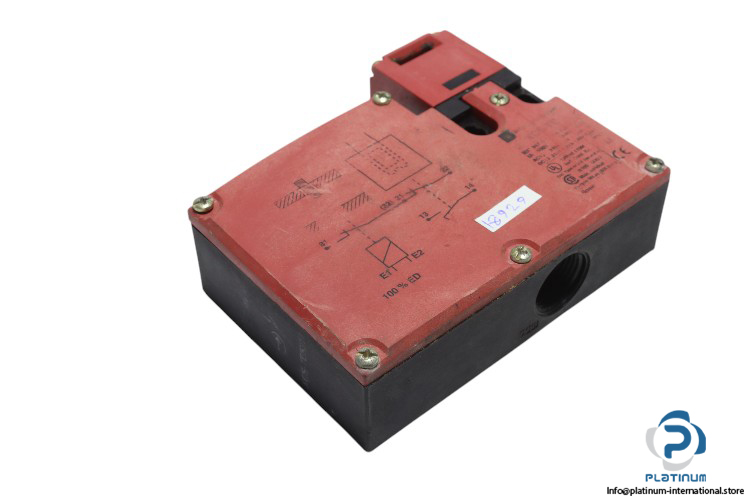

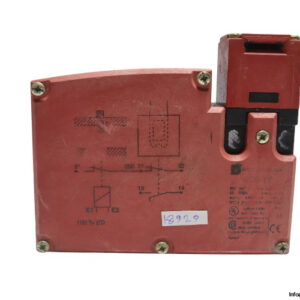

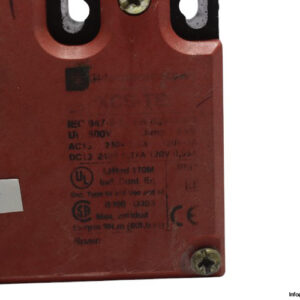

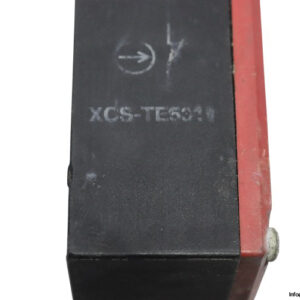

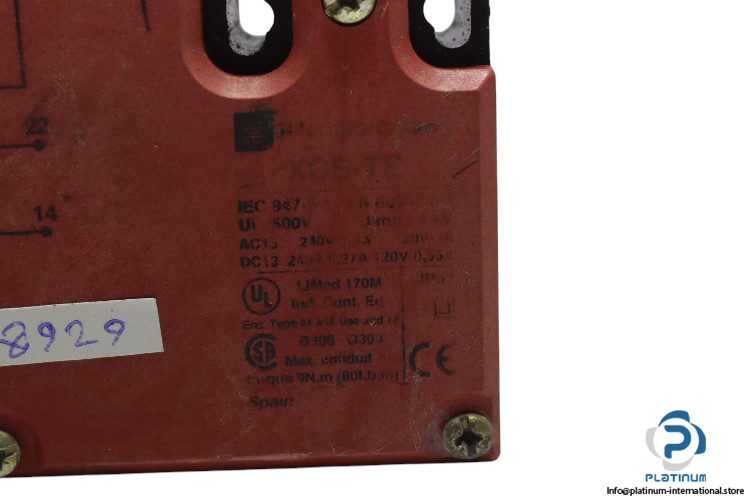

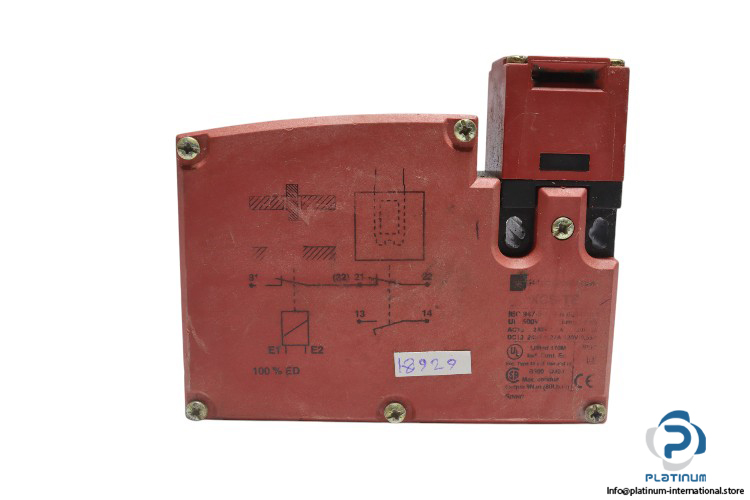

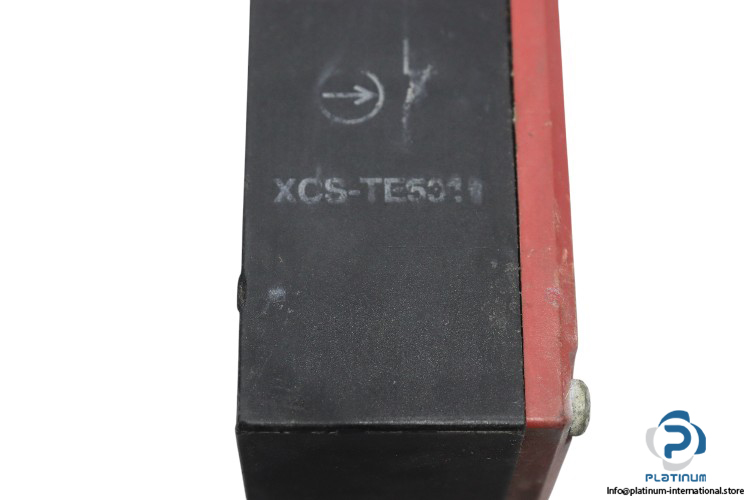

Telemecanique XCS-TE Safety Switch
Safety Switch
The Telemecanique XCS-TE Safety Switch provides 240 V AC-15 and 250 V DC-13 ratings. With 4 kV impulse withstand voltage, 10 A short-circuit protection (2-contact version), and a temperature range of -25°C to 60°C, it’s ideal for industrial safety applications.Telemecanique XCS-TE Safety Switch
The Telemecanique XCS-TE Safety Switch is a robust and reliable solution designed to enhance safety in industrial applications. With rated operating voltages for both AC and DC circuits, this safety switch ensures safe and effective operation in various environments. It is ideal for use in systems requiring secure operation under high electrical loads.
The XCS-TE switch is rated for AC-15 with a maximum voltage of 240 V and a current of 1.5 A, and for DC-13 with a voltage of up to 250 V and a current of 0.27 A. Additionally, the switch supports impulse withstand voltage (Uimp) of up to 4 kV, ensuring safety during electrical surges. The short-circuit protection for the 2-contact version is rated at 10 A, and for the 3-contact version, it is rated at 6 A, providing additional protection to prevent damage during fault conditions.
Featuring a minimum key pull-out resistance of 500 N (112.5 lbs), this safety switch ensures reliable operation and security in environments where high mechanical stress may occur. The XCS-TE switch operates within a wide ambient temperature range of -25°C to 60°C, making it suitable for both cold and hot industrial environments.
Manufacturer: Telemecanique
Type: Safety Switch
Model: XCS-TE
The Telemecanique XCS-TE Safety Switch is an excellent choice for ensuring operational safety and protection in a wide range of industrial applications, offering a durable and reliable solution for safe system operation.
| Rated Operating Voltage AC-15, B300 | Ue = 240 V, Ie = 1.5 A; Ue = 120 V, Ie = 3 A; Ith = 6 A |
| Rated Operating Voltage DC-13, Q300 | Ue = 250 V, Ie = 0.27 A; Ue = 125 V, Ie = 0.55 A |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Short-Circuit Protection | 2-contact version: 10 A; 3-contact version: 6 A |
| Minimum Key Pull-Out Resistance | 500 N (112.5 lbs) |
| Ambient Temperature | -25 … 60 °C |
