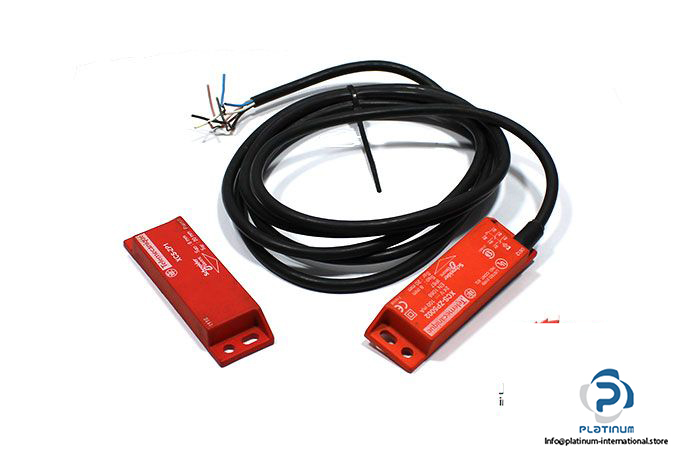

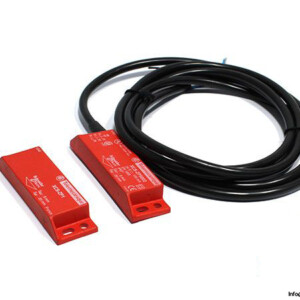

Telemecanique XCSDMP5002 Safety Switch

Manufacturer: TELEMECANIQUE SCHNEIDER

Type: Safety Switch

Model: XCSDMP5002

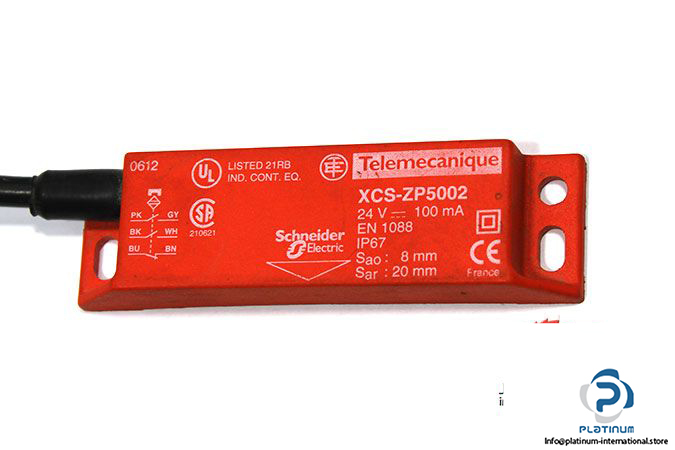

Coded Magnetic Switch: XCS-ZP5002

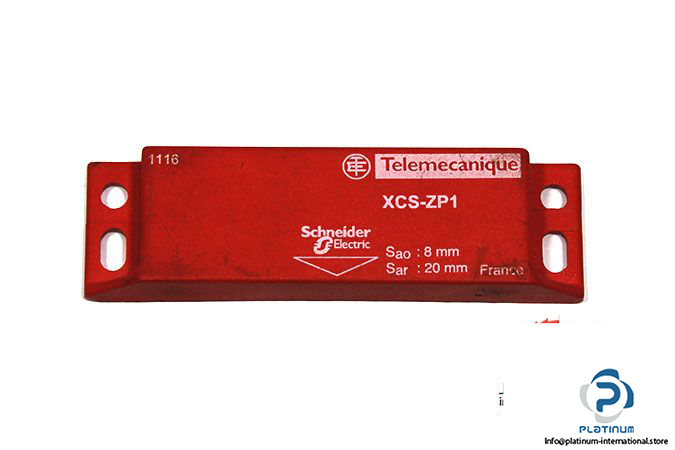

Additional Coded Magnet: XCS-ZP1



Assured Operating Distance: 8 mm

Operating Voltage: 24 V DC

Operating Current: 100 mA

Switching Frequency: 150 Hz

Contacts Type and Composition: 2 Normally Open and 1 Normally Closed

Electrical Connection: Pre-Cabled 2m, 6-Wire

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 85 °C

Dimensions: 88 x 25 x 13 mm

Housing Material: Plastic

Weight: 0.23 kg
