Telemecanique XCSLE3838312 Safety Switch
New
In stock6 unitsReady to ship
Safety Switch
Slim Telemecanique safety switch with solenoid interlocking, 3 NC contacts, 24 V AC/DC supply, and LED signalling for actuator status. Designed for reliable machine guard monitoring and industrial safety systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

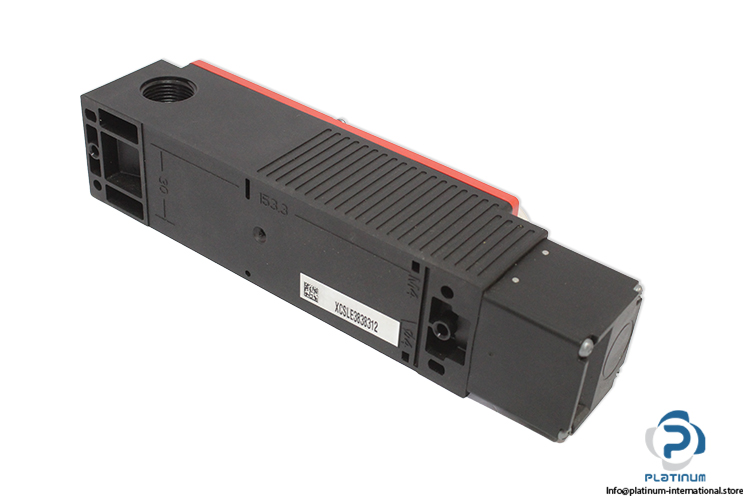

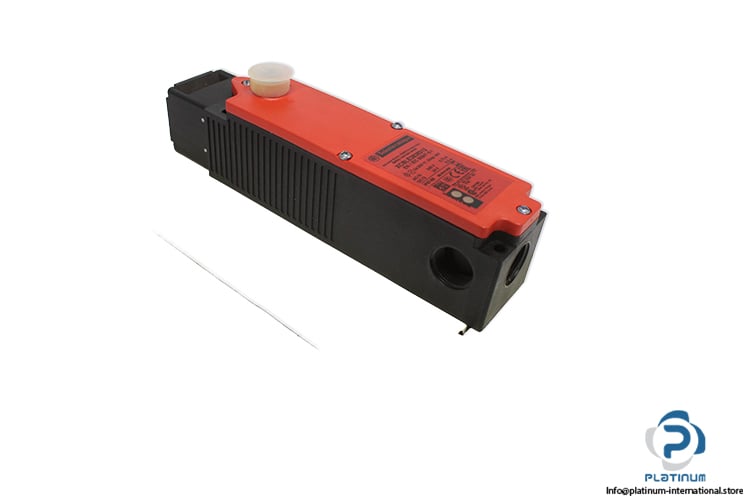

Telemecanique XCSLE3838312 Safety Switch
The Telemecanique XCSLE3838312 is a slim design safety switch from the Telemecanique Safety Switches XCS range. It is designed for machine safety and access control applications, providing reliable interlocking and monitoring of guard doors in industrial automation systems.
Manufacturer: Telemecanique
Type: Safety Switch
Model: XCSLE3838312
Order No.: 941377
SN: 3606489413774
| Range Of Product | Telemecanique Safety Switches XCS |
| Component Name | XCSLE |
| Design | Slim |
| Material | Plastic |
| Head Type | Key Operated Turret Head |
| Contacts Type And Composition | 3 NC |
| Solenoid Contacts Type And Composition | 3 NC (Slow-Break, Simultaneous) |
| Cable Entry | 3 Entries Tapped For M20 x 1.5 |
| Electromagnet Interlocking | Locking On De-Energisation And Unlocking On Energisation Of Solenoid |
| Rated Supply Voltage [Us] | 24 V - 15...10 % |
| Electrical Connection | Spring Terminal, Clamping Capacity: 1 x 1.5 mm² Flexible Or Solid Cable; Spring Terminal, Clamping Capacity: 2 x 0.5 mm² Flexible Cables With 13 mm Bared Ends |

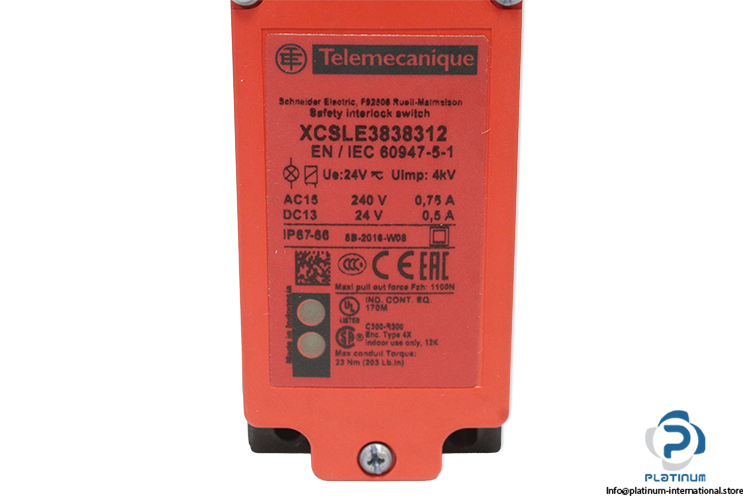

| Local Signalling | 1 LED (Orange) For Actuator Withdrawn, 1 LED (Green) For Actuator Inserted And Locked |
| Signalling Circuit Voltage | 24 V |
| Contact Operation | Slow-Break, Simultaneous |
| Locking Options Description | With Interlocking, Locking By Solenoid |
| Insulation | Double Insulated |
| Positive Opening | With NC Contact |
| Supply Voltage Type | AC/DC |
| Supply Frequency | 50/60 Hz |
| Signalling Circuit Type | AC/DC |
| Maximum Load Current | ‰¤ 15 A |
| Actuator Forcible Withdrawal RTC | 1400 N |
| Actuator Force For Extraction | 20 N |
| Operating Rate | 10 Cycles/Minute For Maximum Durability |
| Body Material | PA (Polyamide) |
| Head Material | PA (Polyamide) |
| Standard | EN/IEC 60947-5-1 |
| Protection Rating | IP67 / IP66 |
