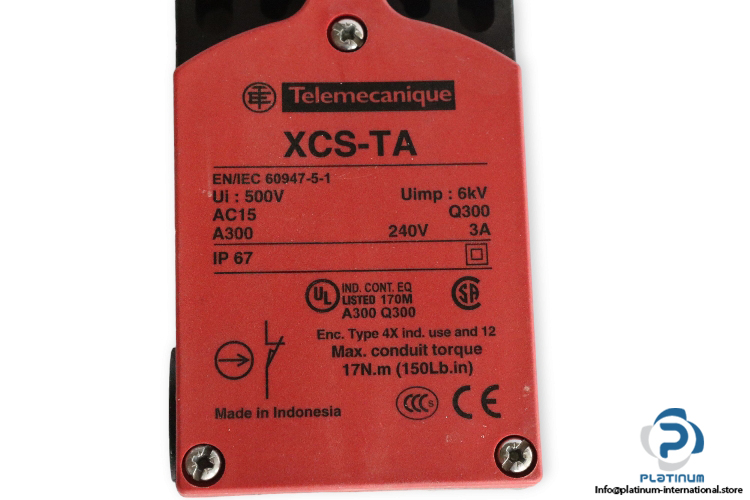

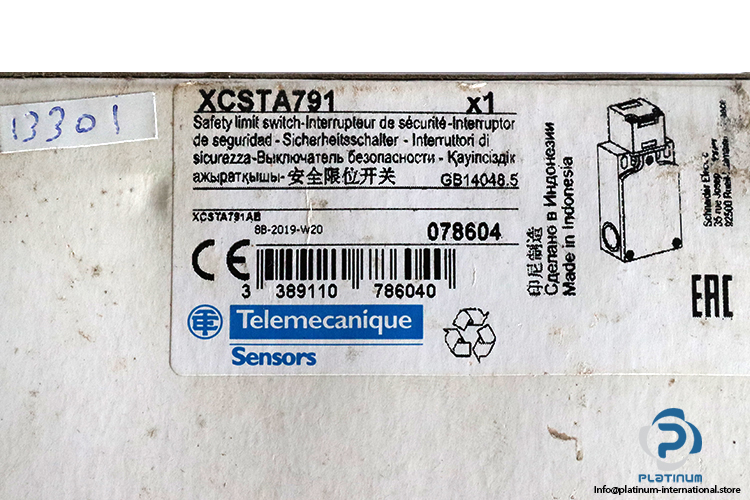

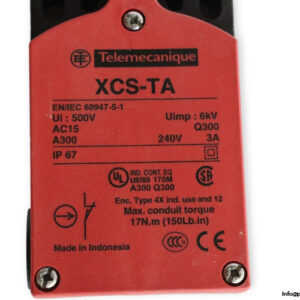

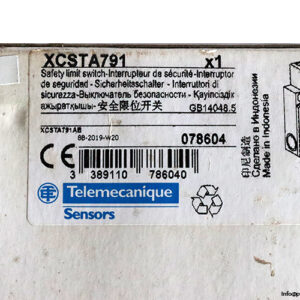

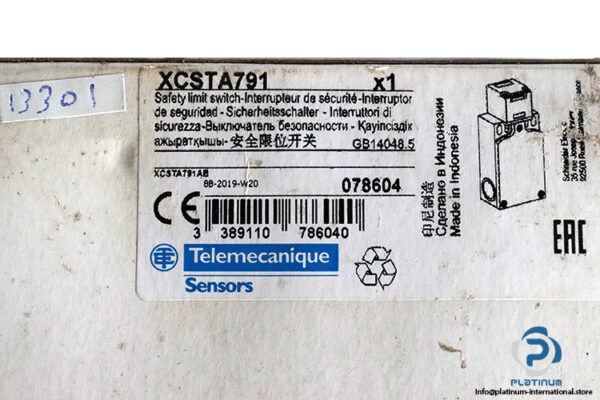

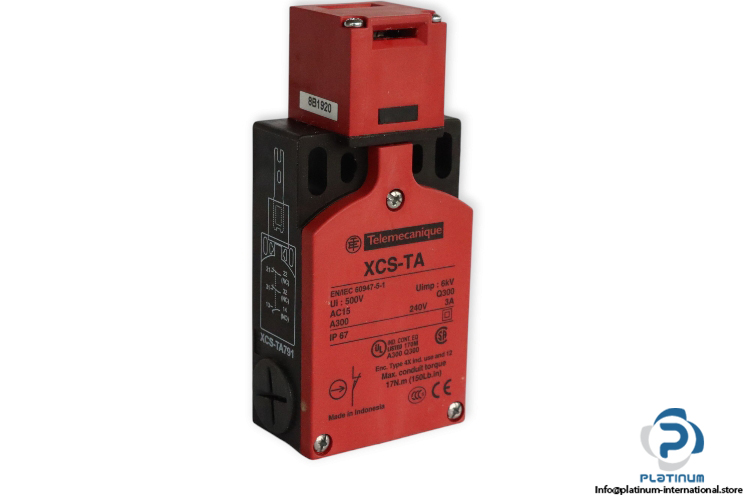

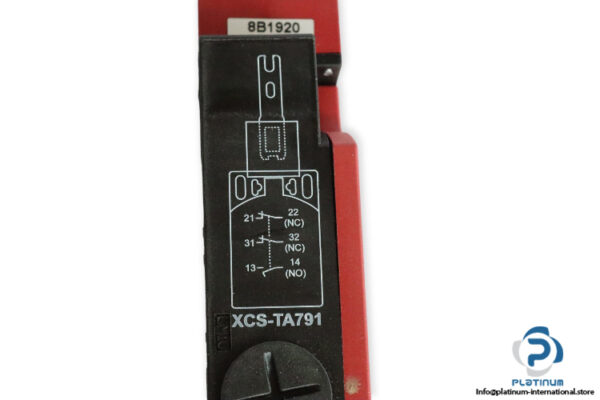

Telemecanique XCSTA791 Safety Limit Switch

Manufacturer: Telemecanique
Type: Safety Limit Switch
Model: XCSTA791

Range of product: Telemecanique Safety switches XCS
Head type: Key operated turret head
Rated operational current Ie: 6 A at 120 V, 3 A at 240 V, 0.55 A at 125 V, 0.27 A at 250 V
Rated insulation voltage Ue: 300 V conforming to UL 508, 500 V conforming to IEC 60947-1, 300 V conforming to CSA C22.2 No 14
Rated impulse withstand voltage Uimp: 6 kV

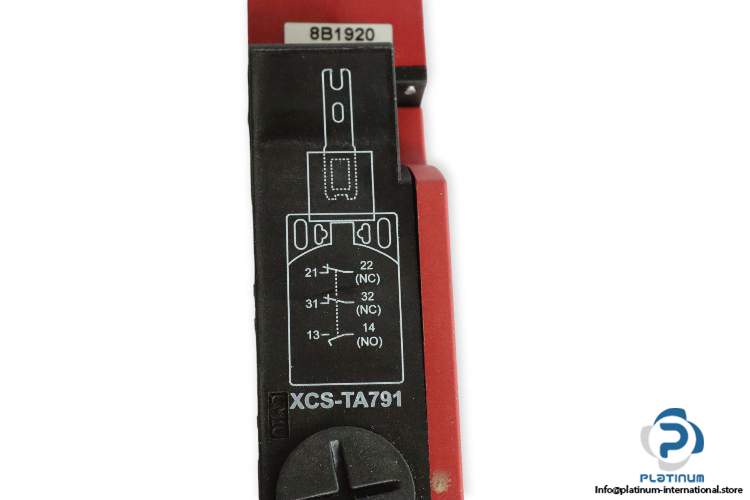

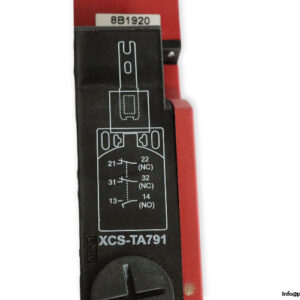

Contacts type and Composition: 2 NC + 1 NO
Contact operation: Slow-break, break before make
Electrical connection: Terminal, clamping capacity: 1 x 0.5…2 x 1.5 mm² with or without cable end
Material: Plastic
Number of poles: 3
Standard: EN/IEC 60947-5-1
Protection class: IP67
Ambient temperature operation: -25 … 70 °C
Dimensions: 30 x 52 x 115 mm
