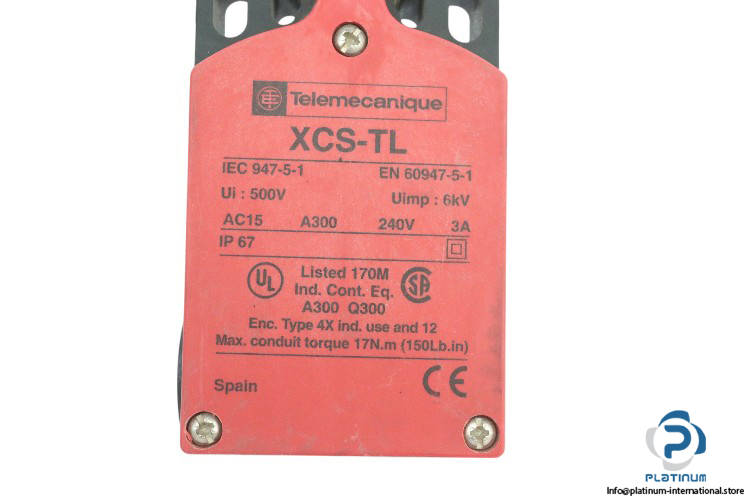

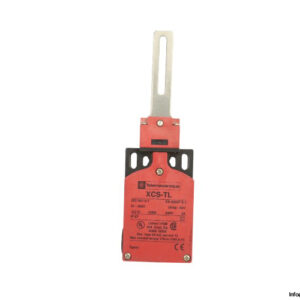

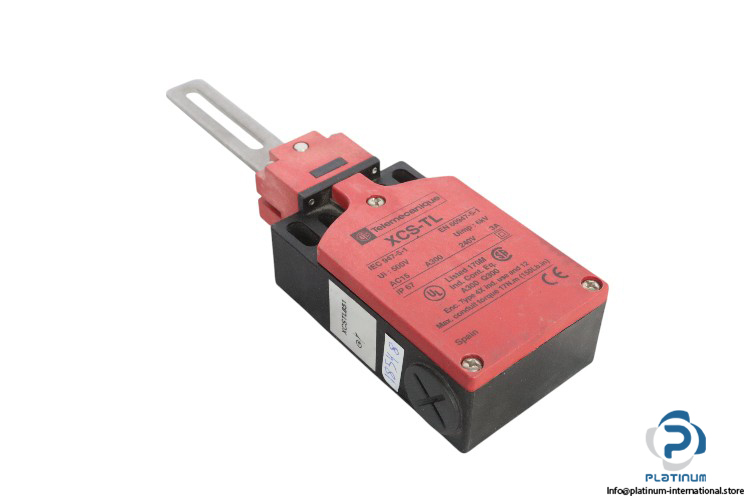

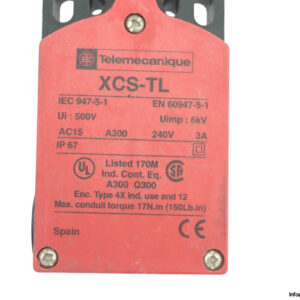

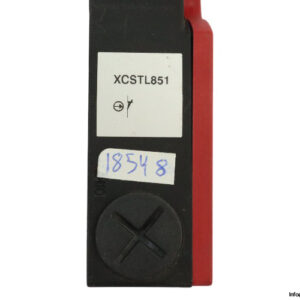

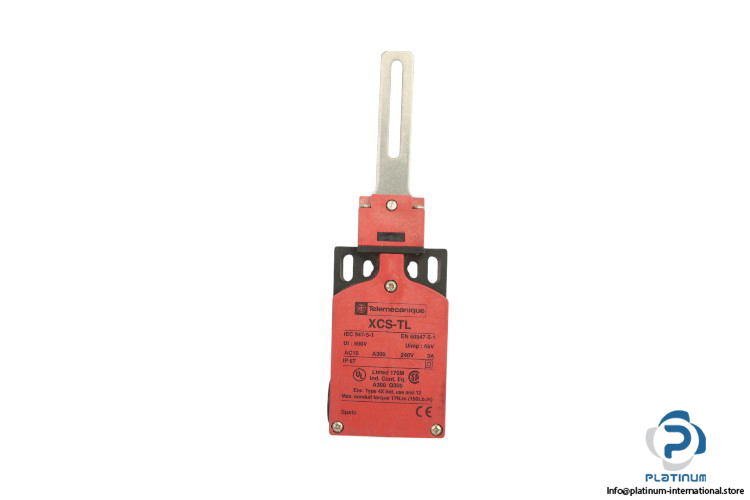

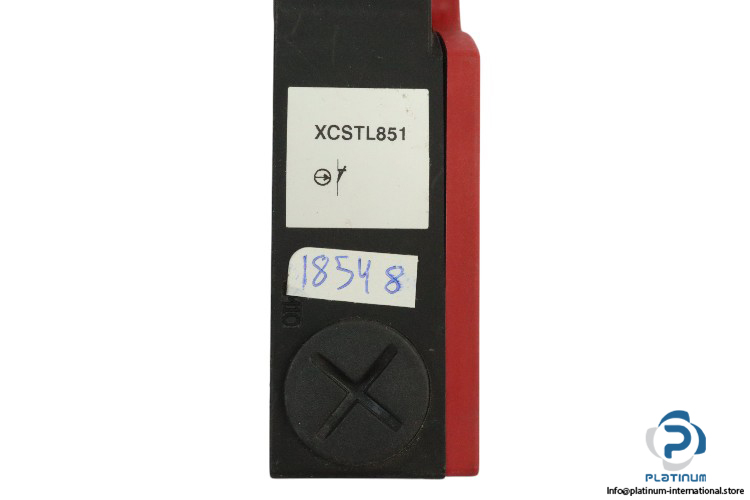

Telemecanique XCSTL851 Safety Switch
“ 3 NC, IP67 Durable safety switch with turret head rotary lever, snap-action 3 NC contacts, and IP67 protection. Designed for **industrial automation and safety applications**.
Telemecanique XCSTL851 Safety Switch “ Turret Head Rotary Lever
The Telemecanique XCSTL851 is a high-performance **safety switch** designed for **machine safety and industrial automation applications**. With a **turret head rotary lever** and **snap-action 3 NC contacts**, this switch ensures **precise safety operation and reliable performance** in demanding environments. Built with a **durable plastic housing** and **IP67 protection**, it provides **robust electrical insulation and environmental resistance**.
Key Product Details:
Manufacturer: Telemecanique
Type: Safety Switch
Model: XCSTL851
Component Name: XCSTL
Designed for **enhanced safety in automation and industrial applications**, the Telemecanique XCSTL851 offers **long-lasting durability, reliable performance, and compliance with international safety standards**.
| Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Thermal Current (Ith) | 6 A |
| Rated Operational Current (Ie) | 3 A @ 240 V, AC-15, A300 |
| Material | Plastic |
| Head Type | Turret Head Rotary Lever |
| Contacts Type and Composition | 3 NC |
| Contact Operation | Snap Action |
| Cable Entry | 2 Entries Tapped |
| Cable Outer Diameter | 7 to 10 mm |
| Electrical Connection | Terminal |
| Number of Poles | 3 |
| Protection Degree | IP67 |
| Standard Compliance | IEC 947-5-1, EN 60947-5-1 |
| Ambient Air Temperature for Operation | -25 to 70 °C |
