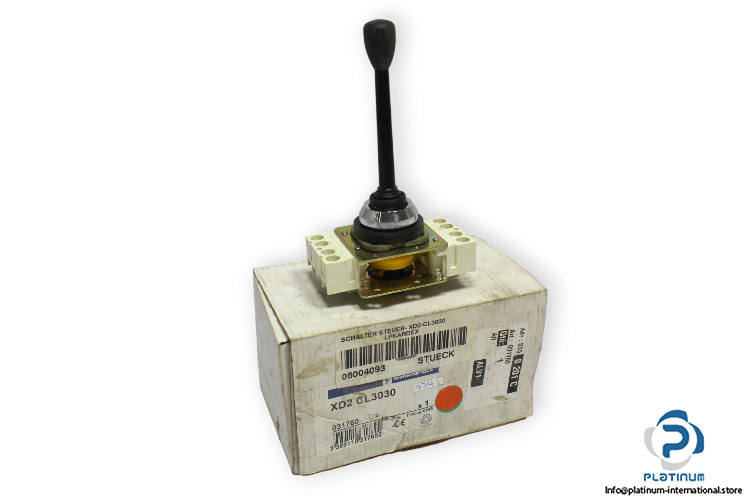

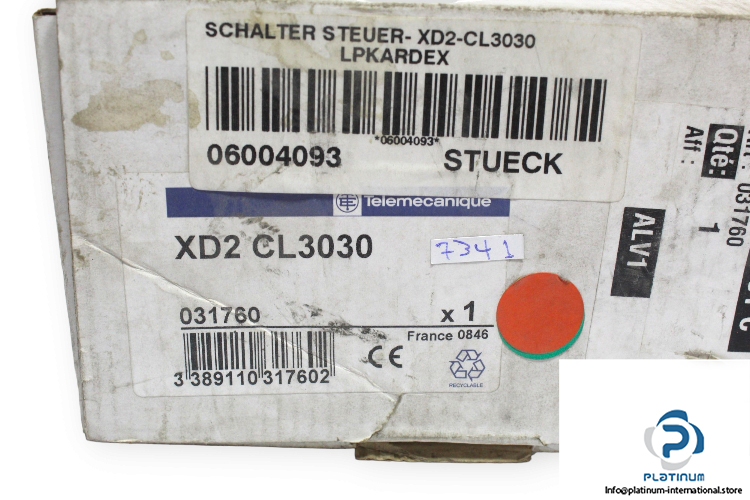

Telemecanique XD2 CL3030 Complete Joystick Controller

Manufacture: Telemecanique
Type: Complete Joystick Controller
Model: XD2CL3030
Part No.: 031760

Device short name: XD2
Mounting diameter: 30 mm
Rated thermal current: 10 A
Bezel material: Chrome plated metal
Control unit positions: All positions
Contacts type and composition: 1 C/O snap action
Direction: 2 directions without spring return to zero position
Fixing distance: 60 x 100 mm
Length of lever: 115 mm
Height: 162 mm
Depth: 55 mm
Ambient operating temperature: -25 … 70°C
Protection degree: IP65
